Description:

This PSP 1000 HDMI Mod kit is compatible with all PSP 1000 models/regions.

Digital to Digital HDMI output.

Make your PSP 1000 console output HDMI image.

Note: The Optical Drive needs to be removed.
Note: The infrared receiver needs to be removed.

Features：

1.High quality Full-view IPS replacement LCD. 100% brand new.

2.Same display size as the original LCD. Same display resolution as the original LCD. 480*272.

3.High brightness.

4.This IPS LCD No Smeared when playing games. (Play Action Games And Emulator Games Without Smearing)

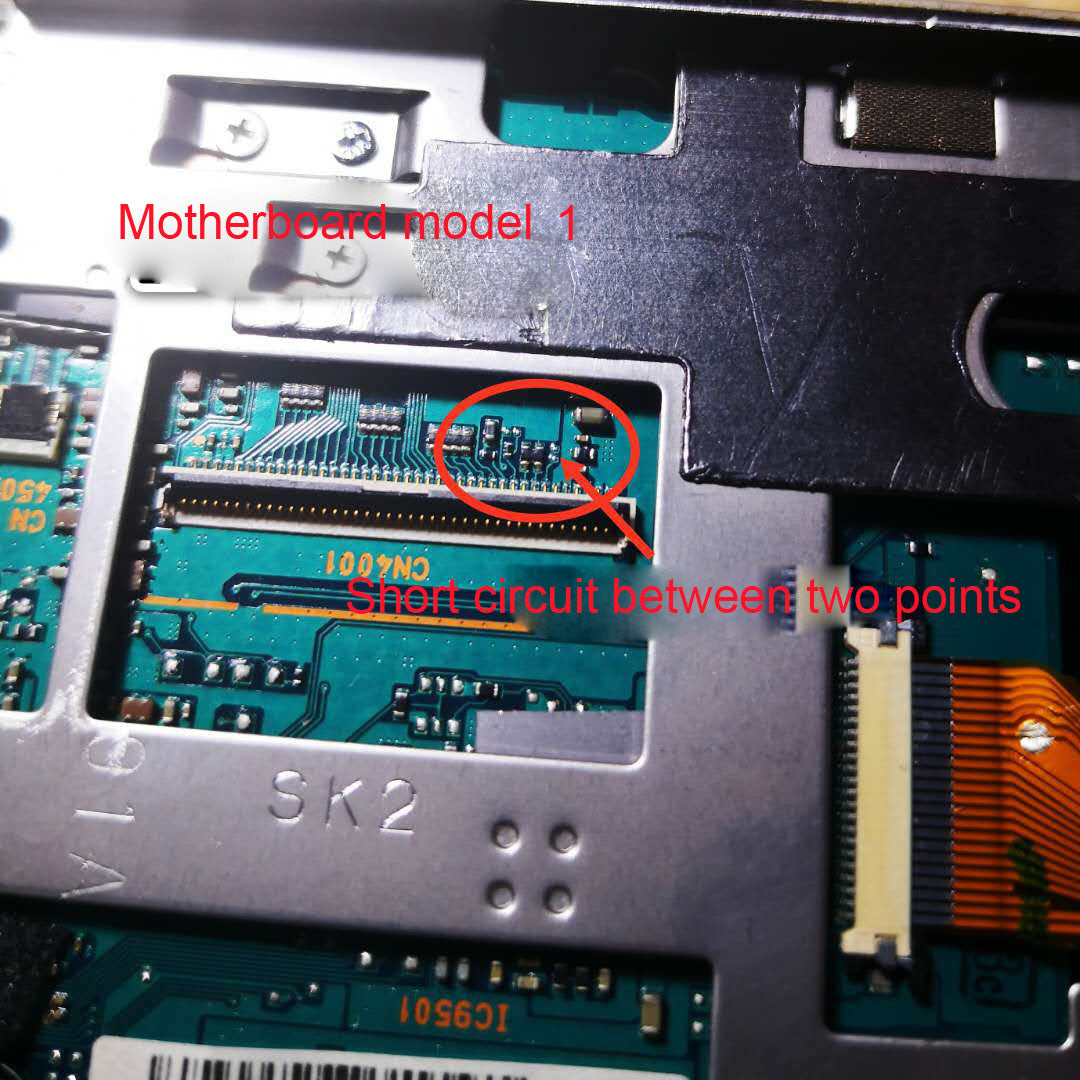

Note: Need to short the two pads above the 34pin of the connector. In fact, all PSP1000 motherboard have these two pads, but these two pads are not connected. Connect directly with solder or connect with 'conductive sliver paint'. (You can use conductive sliver paint to connect the two pads if you don't have welding skill)

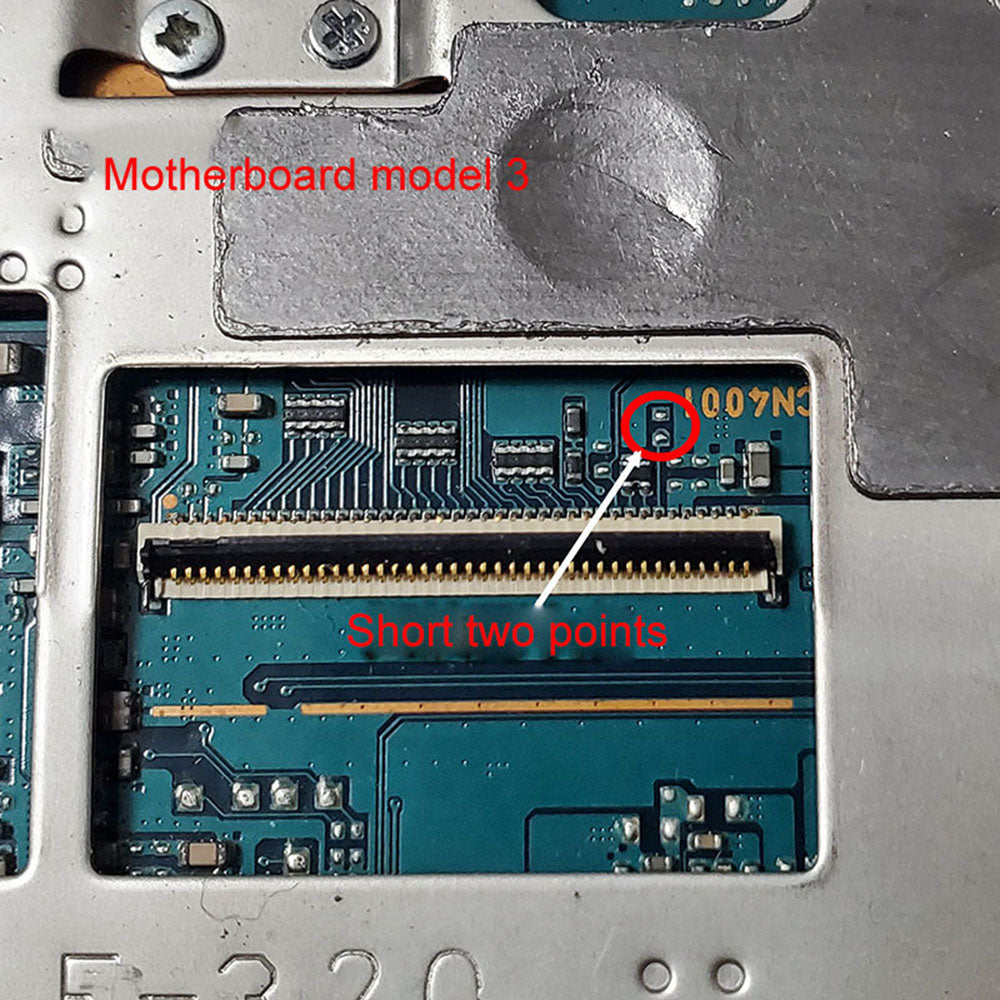

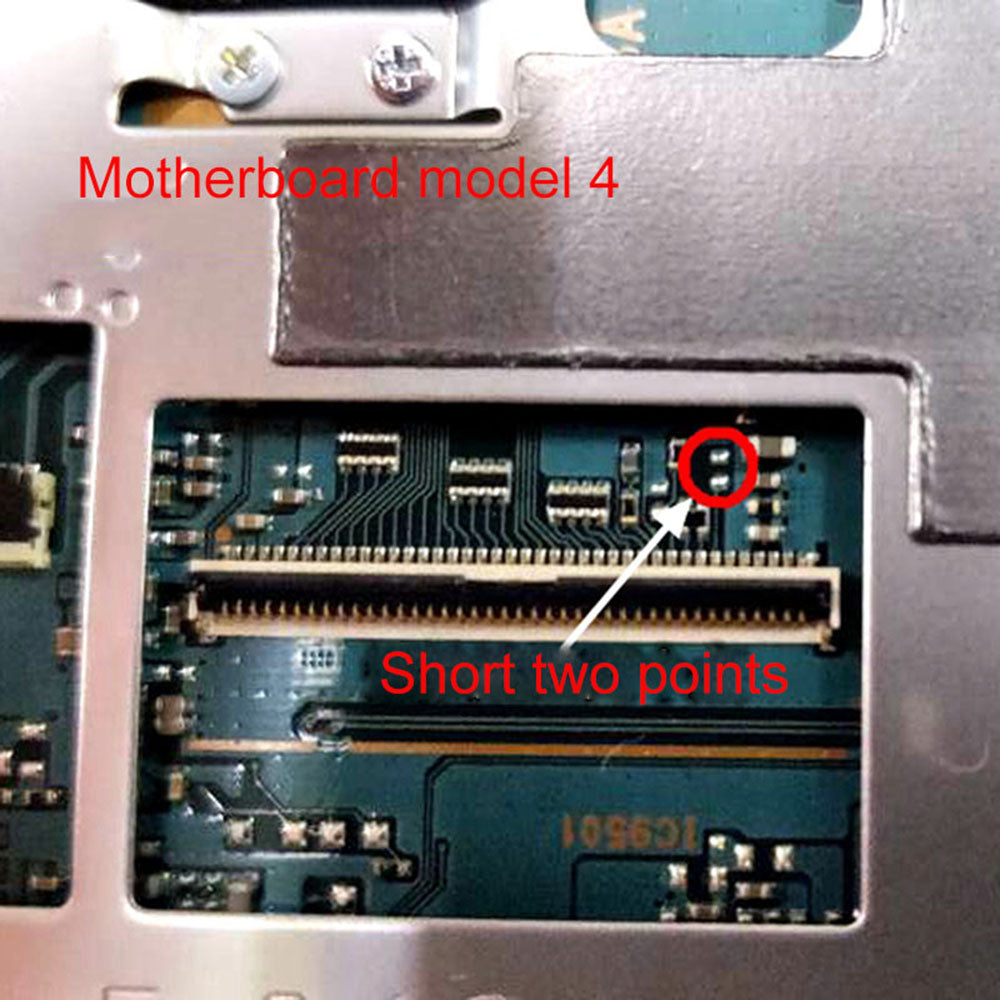

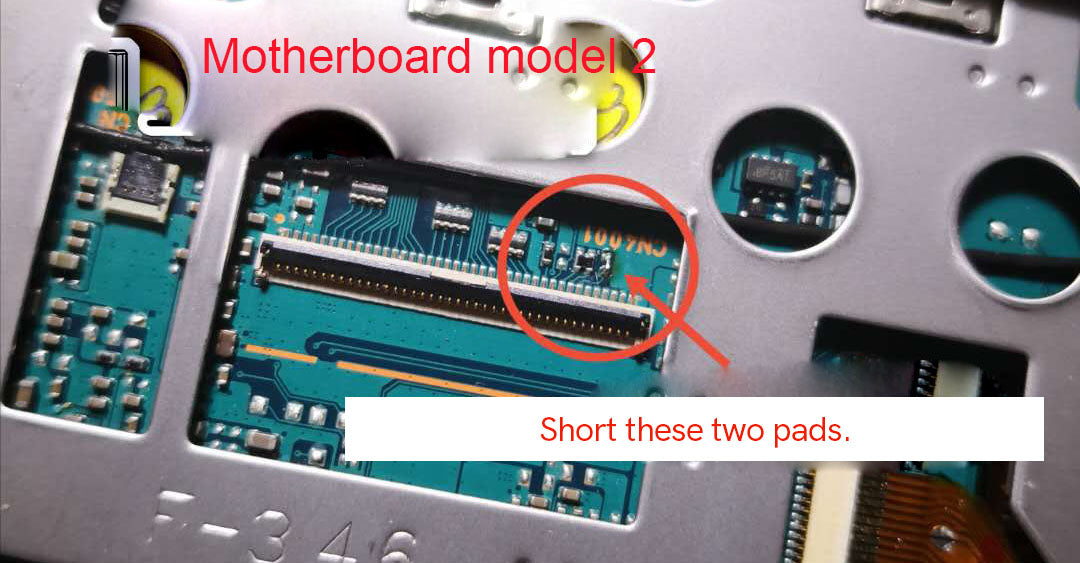

The positions of the two pads are different in different versions of the PSP 1000 motherboard. Please check the follow pictures.

Specification:

1. 720P HDMI-Compatible Output.

2. Built in 3 TV Aspect Ratio.

3. Micro HDMI output socket.

Note: Need remove the CD drive.

Note: The Optical Drive needs to be removed.

Note: The infrared receiver needs to be removed.

Usage your PSP1000 needs big power, please use a bigger power charging head or charge for your console battery ahead for one whole day to make sure there is enough power to turn on the console.

Package Includes

If you choose 1, you will get the below items.

1x PCB.

1x Flex cable.

1x Micro HDMI adapter cable

1x screws and several wires.

If you choose 2, you will get the below items.

1x PCB.

2x Flex cable.

1x Micro HDMI adapter cable

1x screws and several wires.

If you choose the "with LCD" option, you will get the below items.

1x PCB.

1x Flex cable.

1x Micro HDMI adapter cable

1x screws and several wires.

1*PSP1000 Replacement high brightness screen

1x Conductive sliver paint.

1x Foam tape

1x Dustproof cotton not includes the console

About the high brightness screen for PSP1000

• High Brightness IPS LCD Kits No need ribbon cable adapter

• Compatible Model with PSP 1000/1001 series, NOT fit for PSP 2000, 3000 series.

• Same display size as the original LCD. Same display resolution as the original LCD. 480*272.
