About the high brightness PSP1000 Screen from HISPEEDIDO

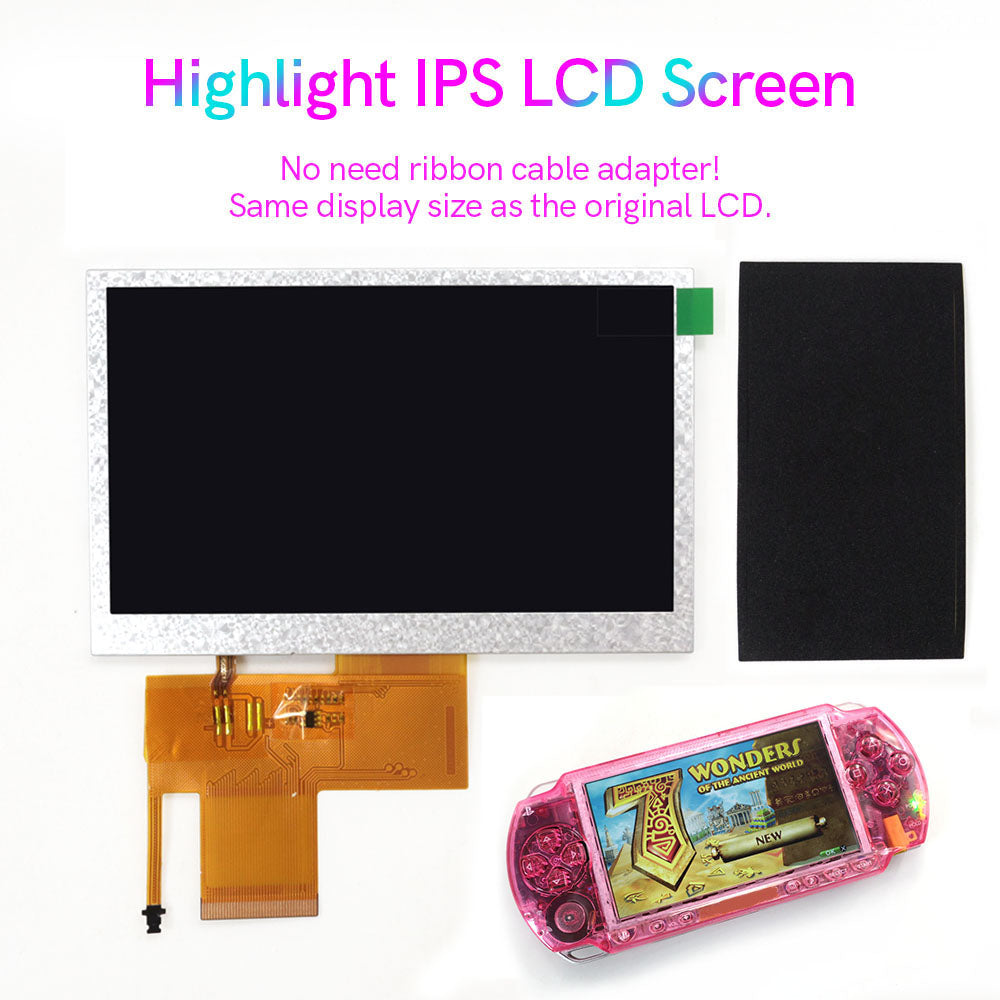

• Highlight IPS LCD Screen For Sony PSP 1000

• High Brightness IPS LCD Kits No need ribbon cable adapter

• Compatible Model with PSP 1000/1001 series, NOT fit for PSP 2000, 3000 series.


Usage your PSP1000 needs big power, please use a bigger power charging head or charge for your console battery ahead for one whole day to make sure there is enough power to turn on the console.

Features

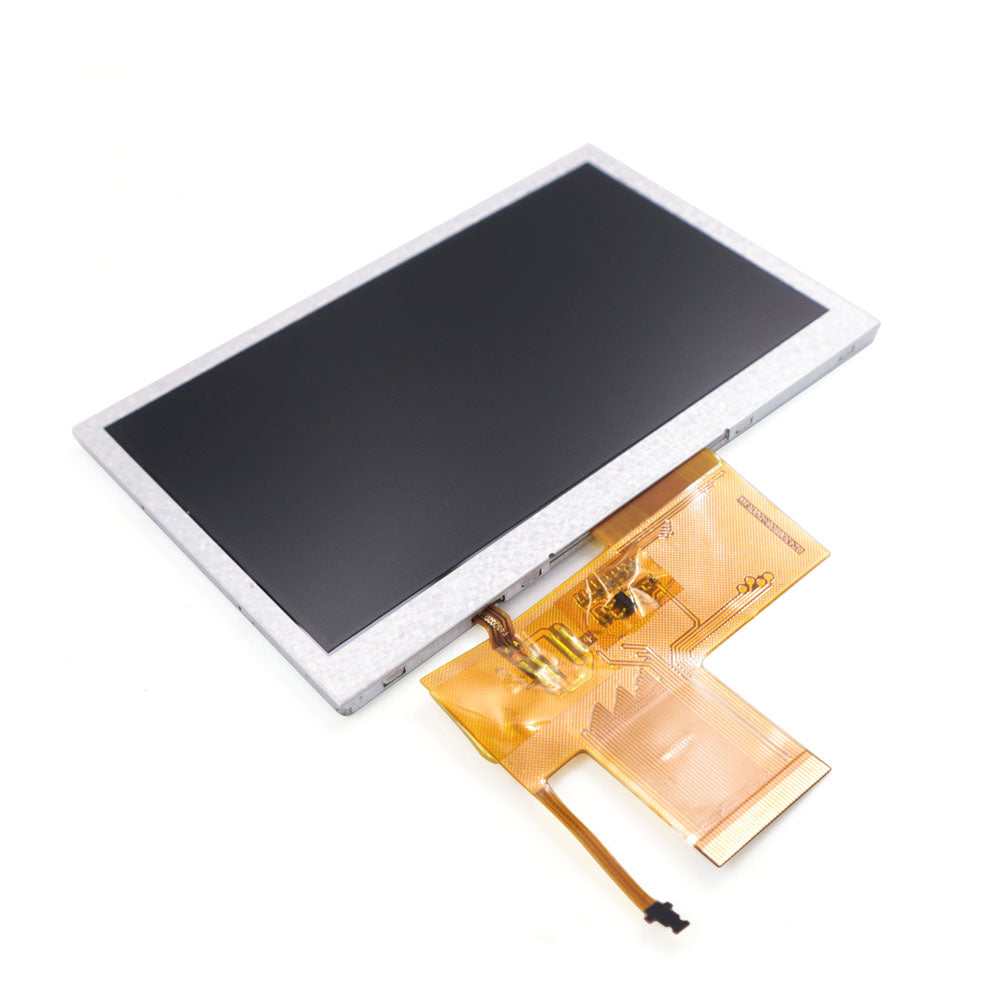

• High quality Full-view IPS replacement LCD

• 100% brand new.

• No need ribbon cable adapter!. No need to cut the shell. Just drop in the IPS LCD. Very easy to install.

• Same display size as the original LCD. Same display resolution as the original LCD. 480*272.

• High brightness.

• This IPS LCD No Smeared when playing games. (Play Action Games And Emulator Games Without Smearing)

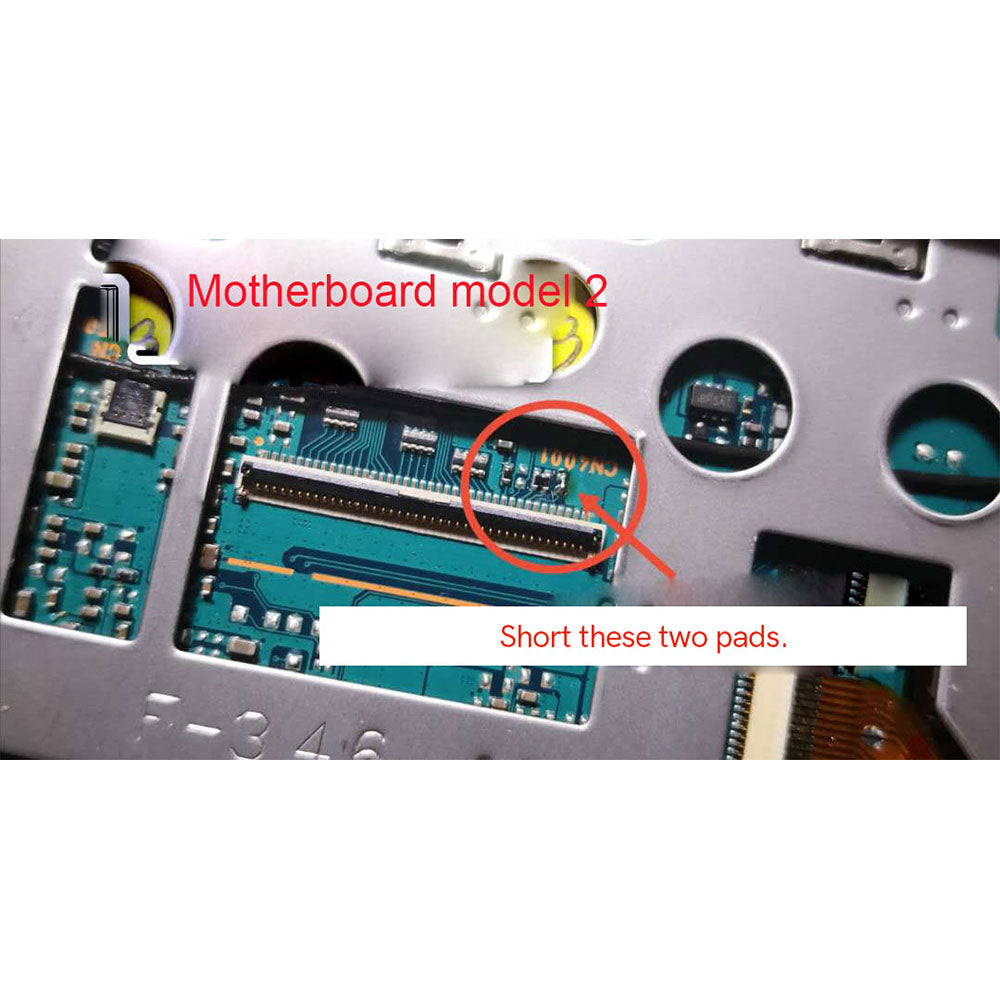

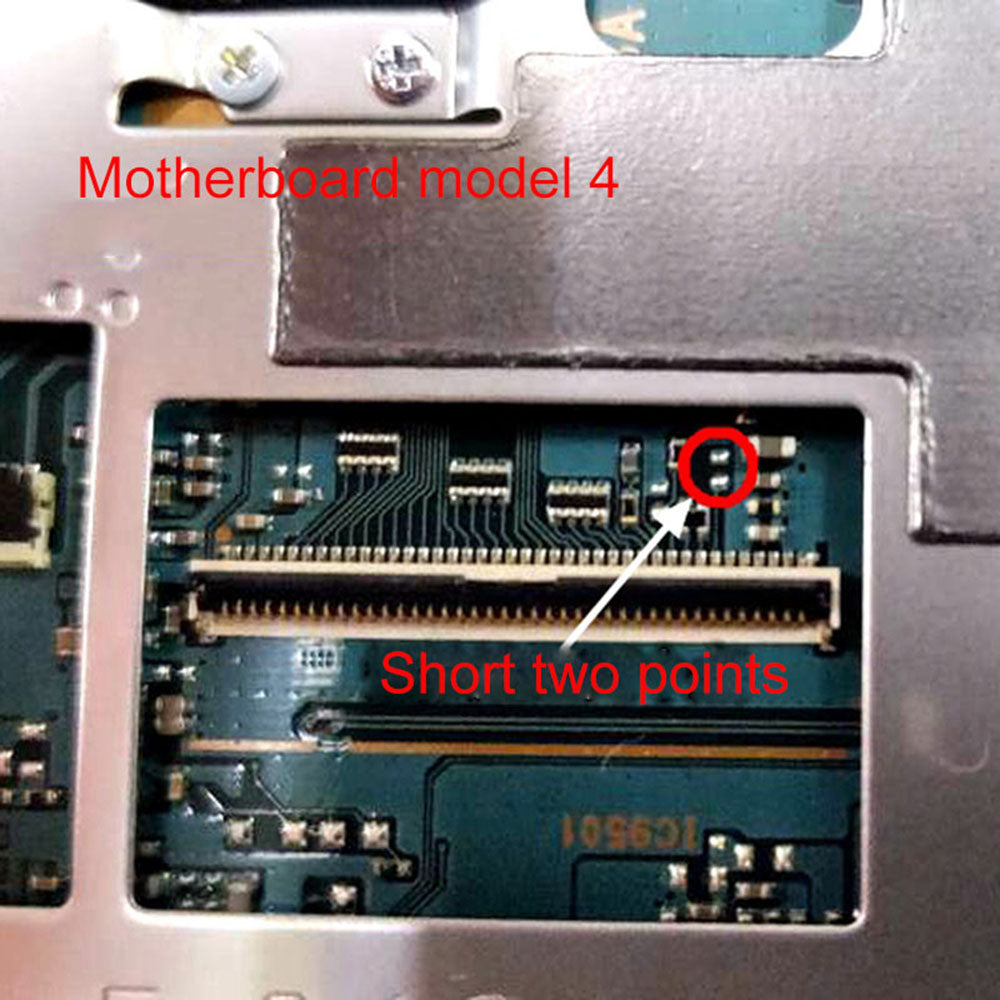

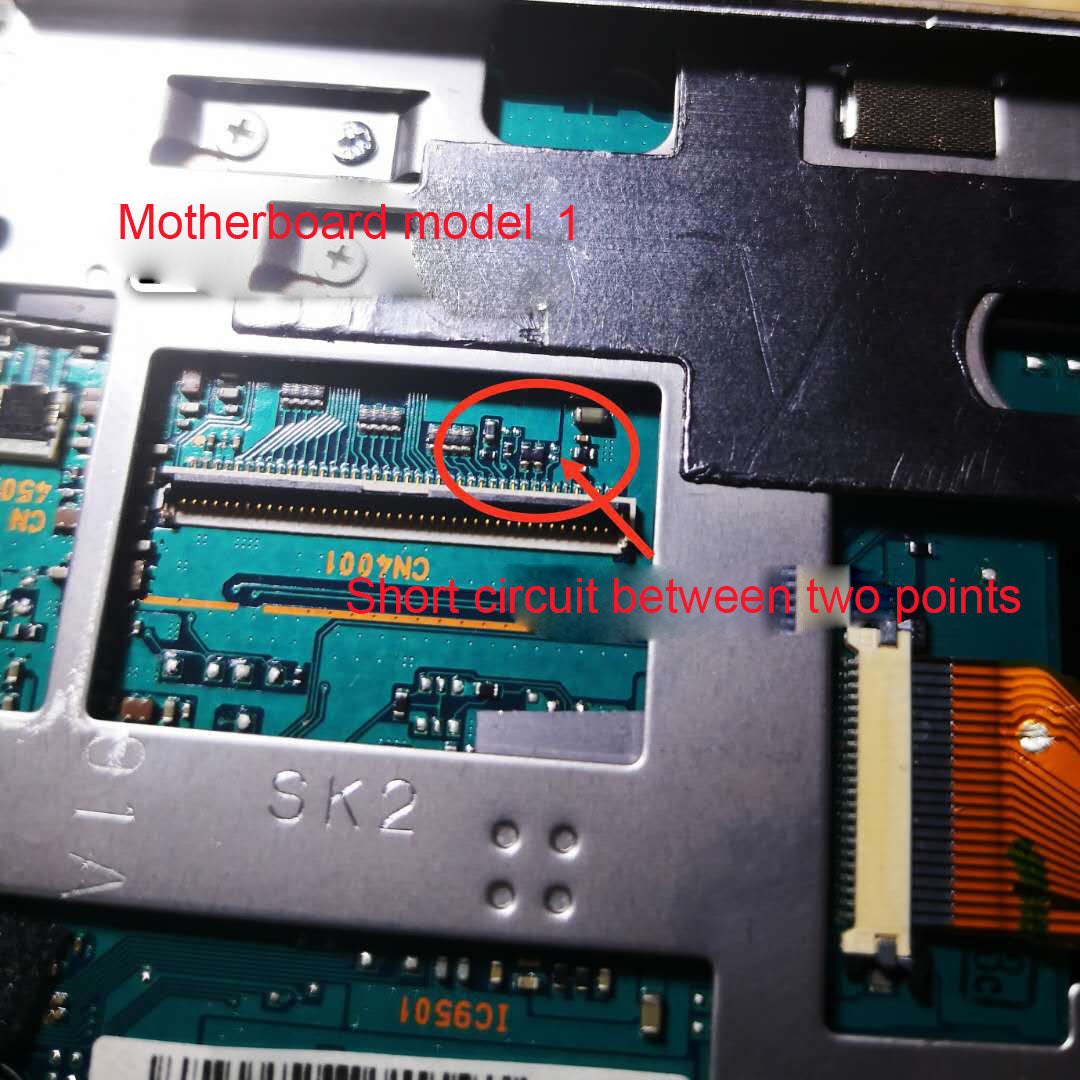

Note:  Need to short the two pads above the 34pin of the connector. In fact, all PSP1000 motherboard have these two pads, but these two pads are not connected. Connect directly with solder.

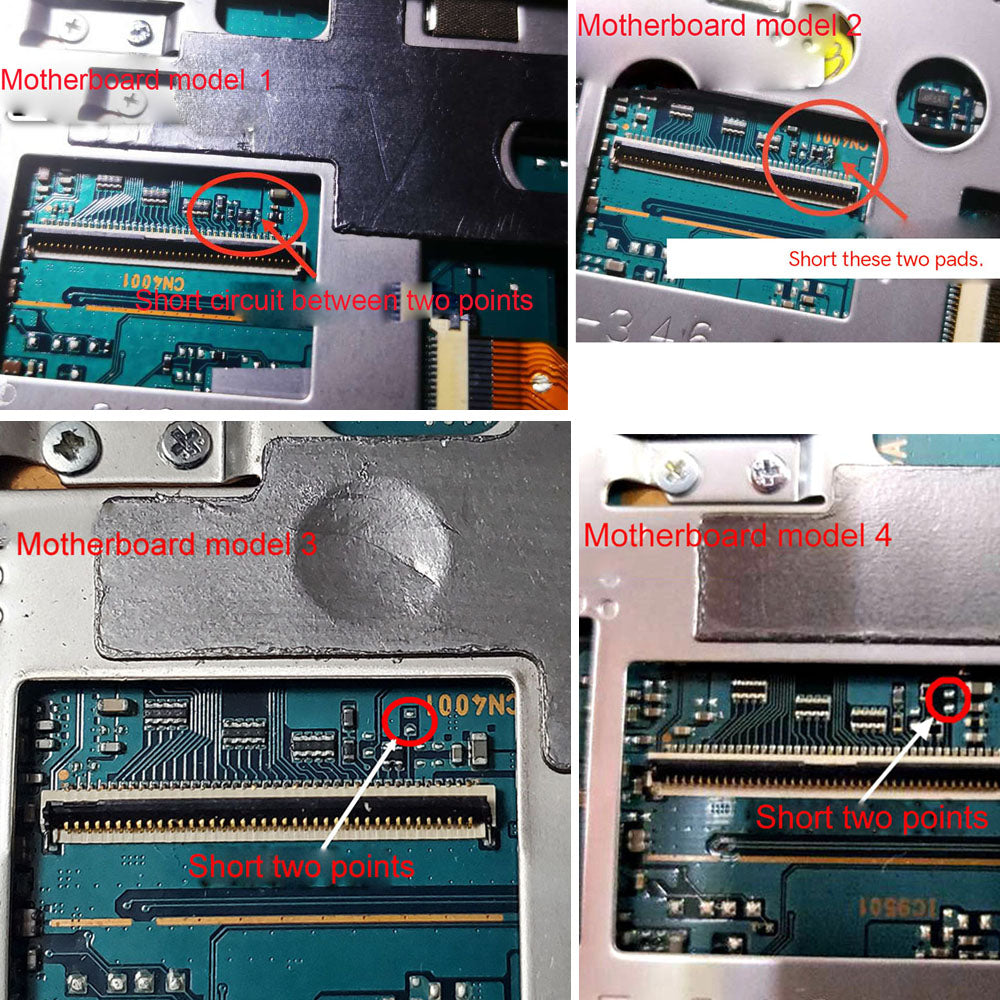

The positions of the two pads are different in different versions of the PSP 1000 motherboard. Please check the pictures.

Include：

1x IPS LCD

1x Foam tape

1x Dustproof cotton ( not includes the console )
