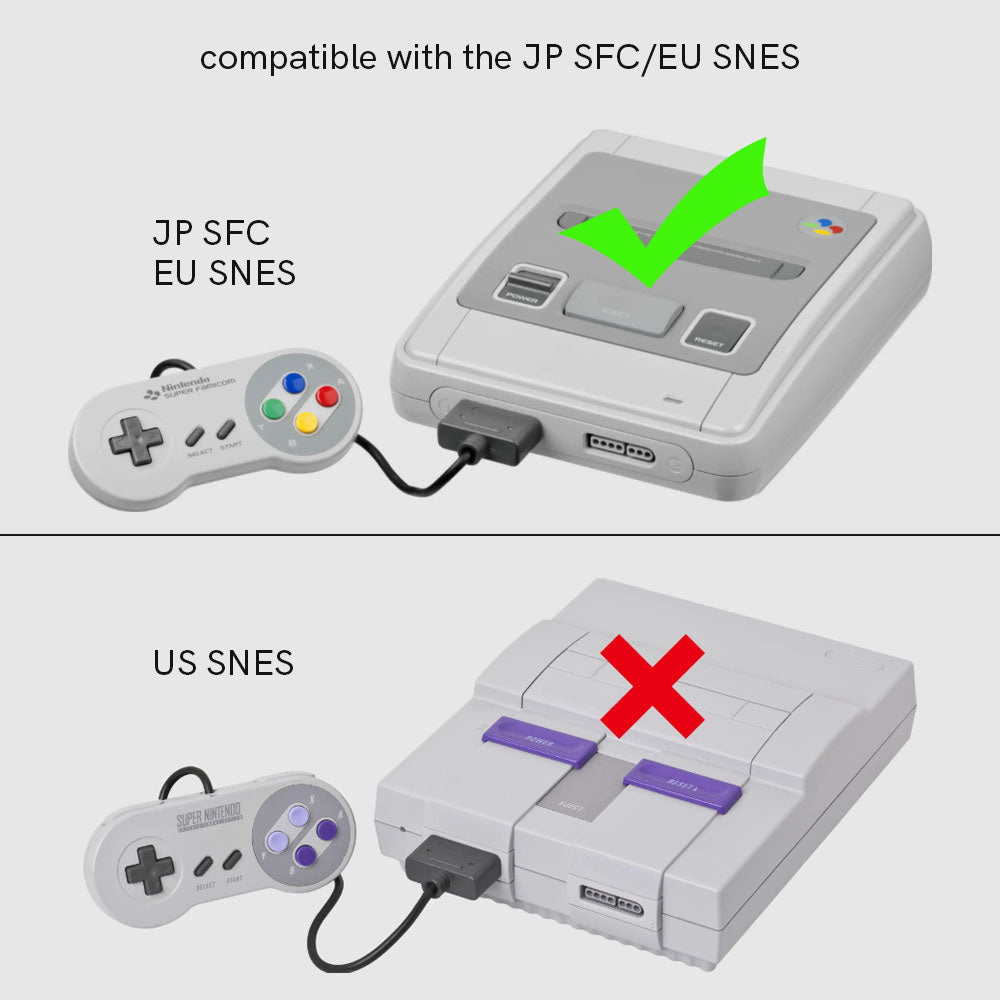

iBlueControlMod Bluetooth Wireless Controller Internal Adapter For JP SFC EU SNES Bluetooth Gamepad Adapter

NOT INCLUDE THE CONSOLE AND MAINBOARD.!

Note1: This kit can only be used with our Applications (iBlueControlMod config).

Note2: this kit not ‘BlueRetro mod’. BlueRetro APP can’t use on this kit.

Don’t upgrade ‘BlueRetro firmware’ to this kit! Otherwise, this kit will be damaged.

Compatible Controllers:

Support PS3/PS4/PS5/Xbox One S/Xbox Series X|S/Wii/Wii U Pro/Switch Pro/Switch Joycon Wireless Controllers, etc.

Description:

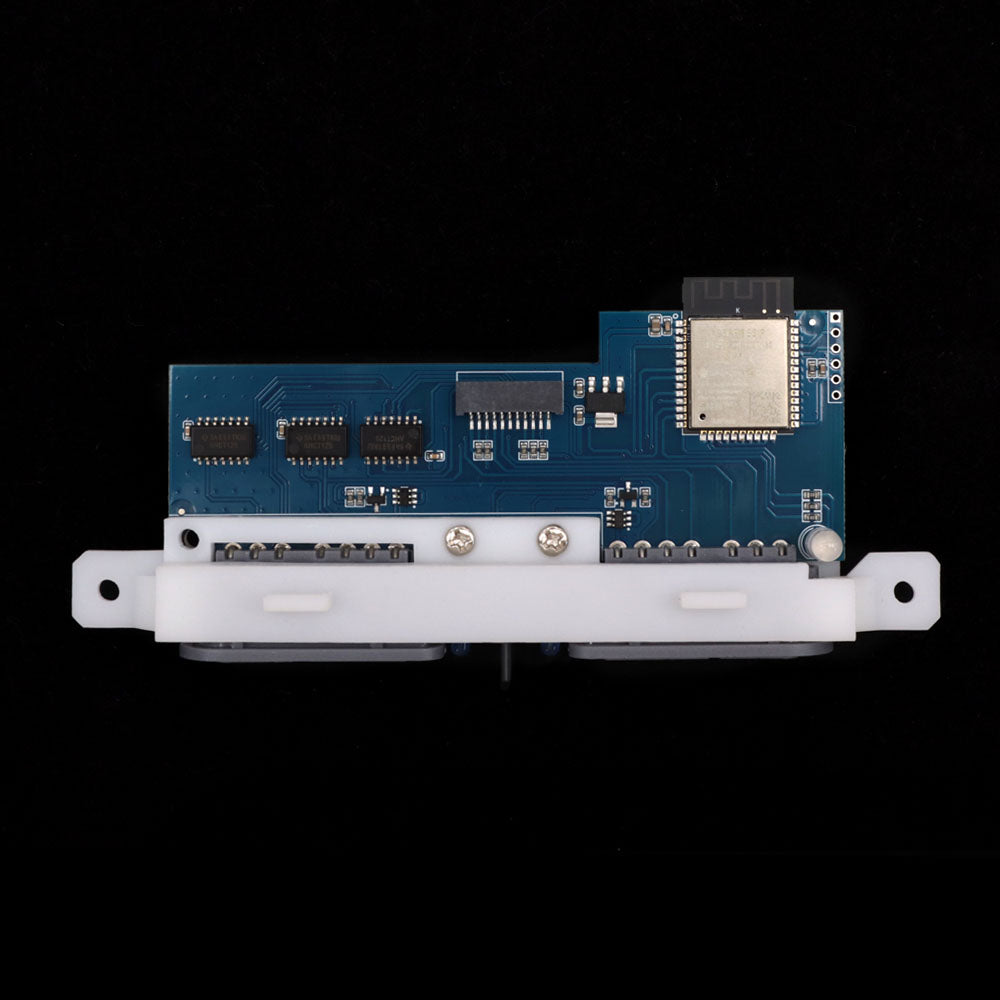

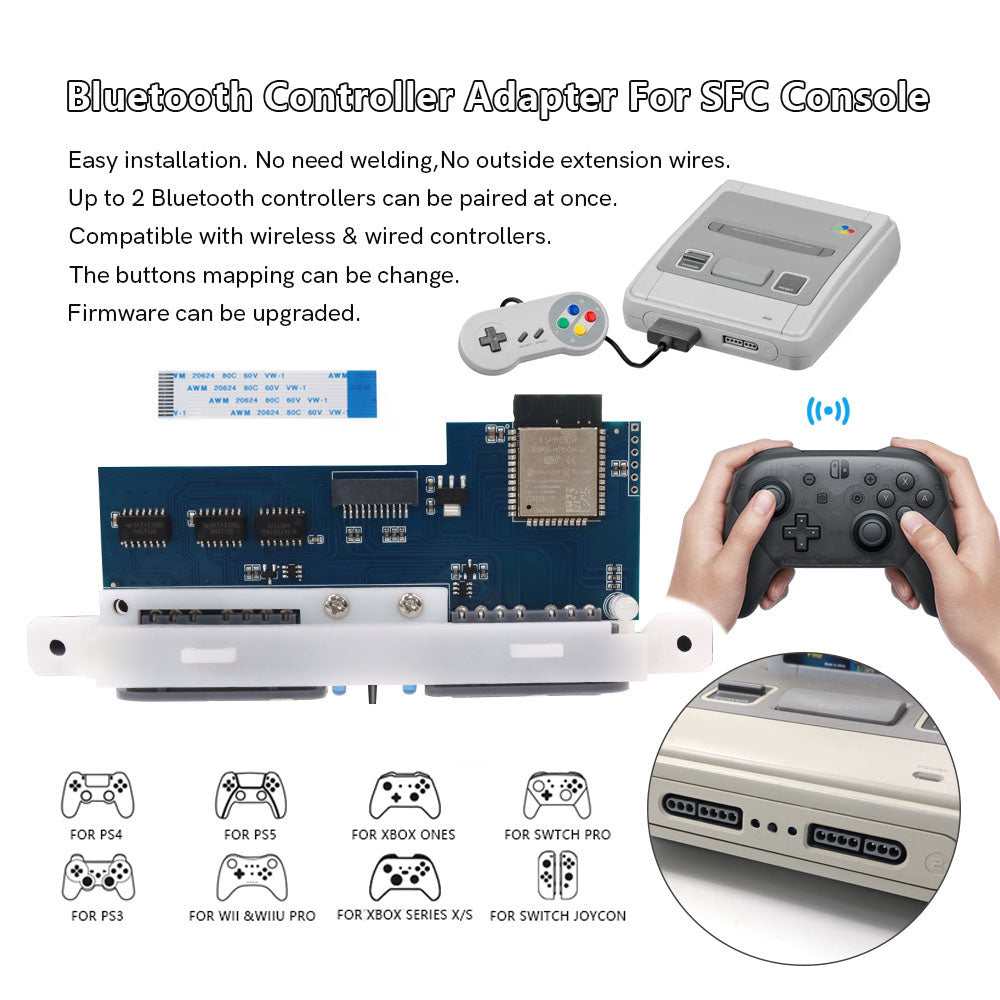

iBlueControlMod adapter is a high speed Bluetooth controller interface that opens retro consoles up to the plethora of modern controllers with latencies that even some wired adapters can't manage.

This new board allows for the use of up to 2 connected Bluetooth controllers,

and can be mixed and matched with wired controllers on any of the ports for seamless operation.

Features:

1.Up to 2 Bluetooth controllers can be paired at once.

2.No need welding, no outside extension wires.

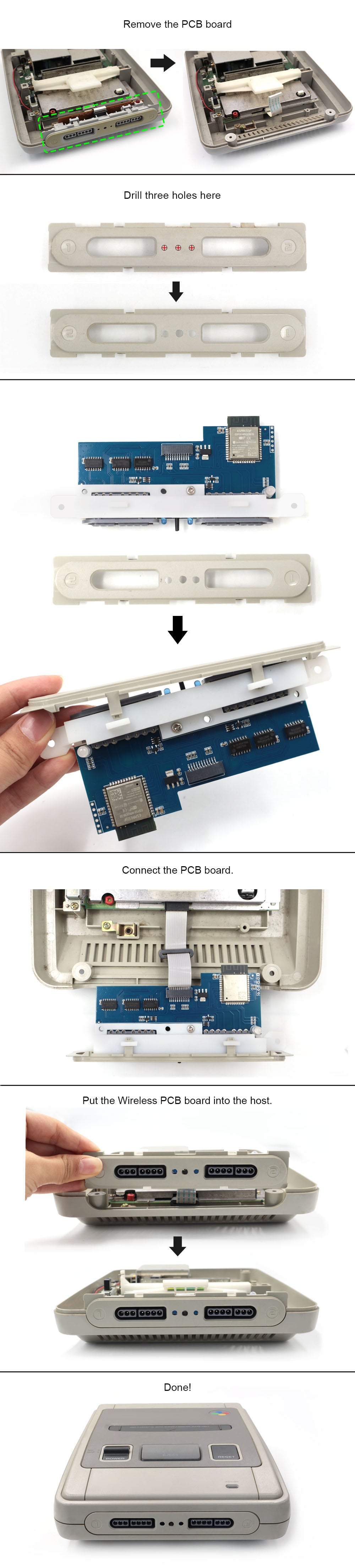

3.Easy installation, good choice for green hands, just open shell and put the mod adapter inner machine to enable consoles connecting wireless joypads.

4.Easy firmware update tool that only requires a Bluetooth enabled device like a computer (incompatible phone).

5.Configurable button mapping using a applications software on a computer.

6.Dreamcast wired controllers are still available after updating this Bluetooth mod.

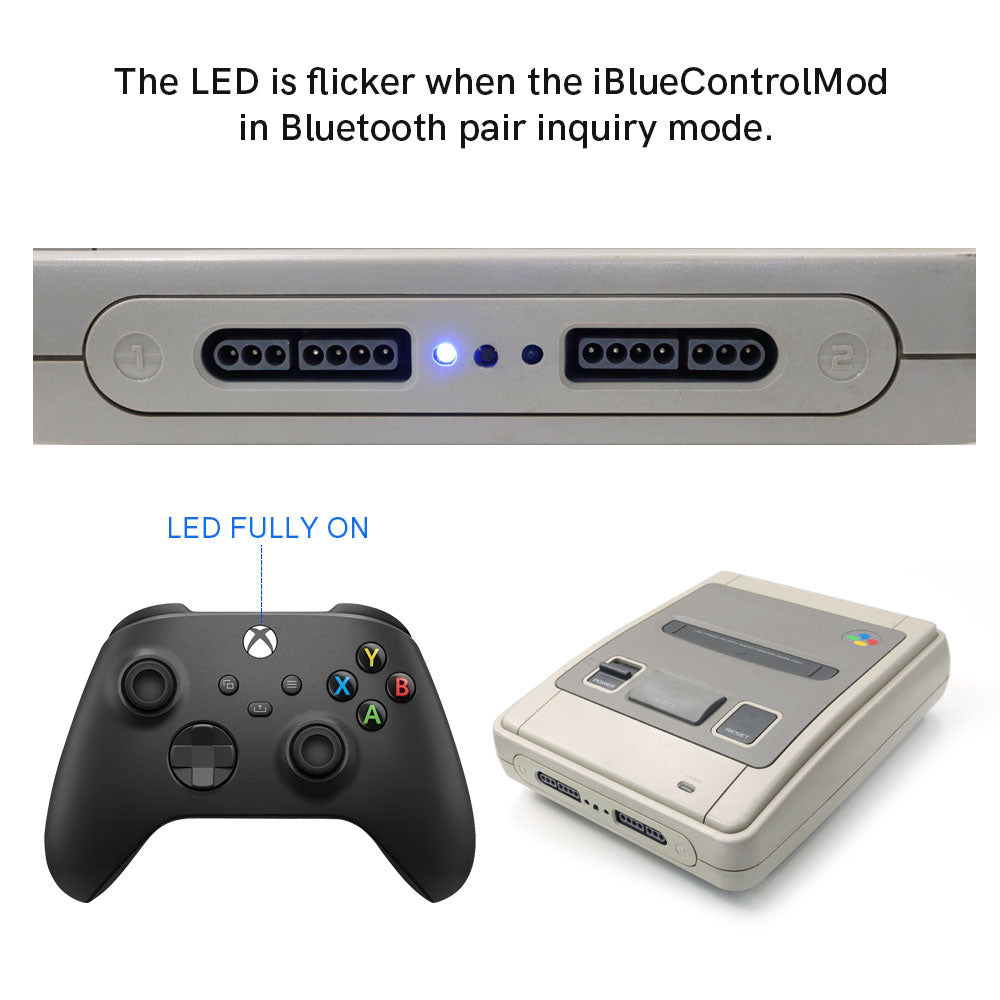

7.Built in LED indicator, make connecting more clear.

Reset Button Usage:

The reset button on the console has been converted to offer new functionality based on how long you hold the button down. While it is being pressed the front ports will light up to show which state you will be enabling.

1.Holding for 0-3 seconds will test whether all 4 ports are working properly.

In this state all four front port LEDs will be solid on.

2.Holding for 4-6 seconds will disconnect all connected Bluetooth controllers .

In this state all four front port LEDs will be slowly blinking.

3.Holding for 7-9 seconds will enable pairing mode.

In this state all four front port LEDs will be blinking faster.

4.Holding for 10 seconds or more will factory reset to the original firmware and remove any custom configs

In this state all four front port LEDs will be blinking rapidly.

5. Hold reset button while powering on the iBlueControlMod adapter will be in sleep mode and will not interfere with the console use this in the event that a peripheral is not working nicely with iBlueControlMod.

NOTE: Please pairing the wireless controller first if the wireless controller never pairing with this iBlueControlMod before.

--- Power off the JP SFC console and then power on it again, will enable the pairing mode. (Or, Holding the reset button for 7-9 seconds will also enable pairing mode.)

Include:

1x iBlueControlMod adapter for JP SFC .

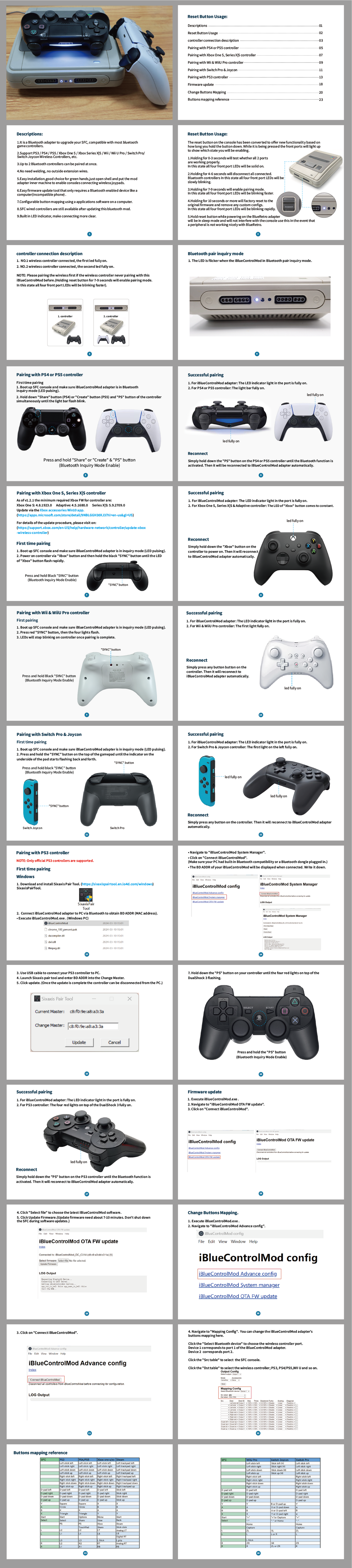

1xSD Card (include iBlueControlMod Applications and manual.)
