HISPEEDIDO Pre -laminated V5 HD 720x480 3.0 inch Drop-in Screen for GBA IPS LCD Kits Replacements UV Housing Shell
HISPEEDIDO Pre -laminated V5 HD 720x480 3.0 inch Drop-in Screen for GBA IPS LCD Kits Replacements UV Housing Shell
Integer Scaling. No any distortions.
Note: You don't need to cut the shell if you buy the shell from us. Otherwise, you need to cut the shell by yourself.
The Glass screen lens have the LOGO.
Add FRM On/OFF function(Frame blending On/OFF).
Description:
1. 720x480 display resolution. HD LCD. 9 pixels to 1 pixel. Integer scaling. No any distortions.
2. Wide View angle up to 178 degree.
3. Pre Laminated Glass Screen.
4. The PCB has been embedded in the LCD metal shell.

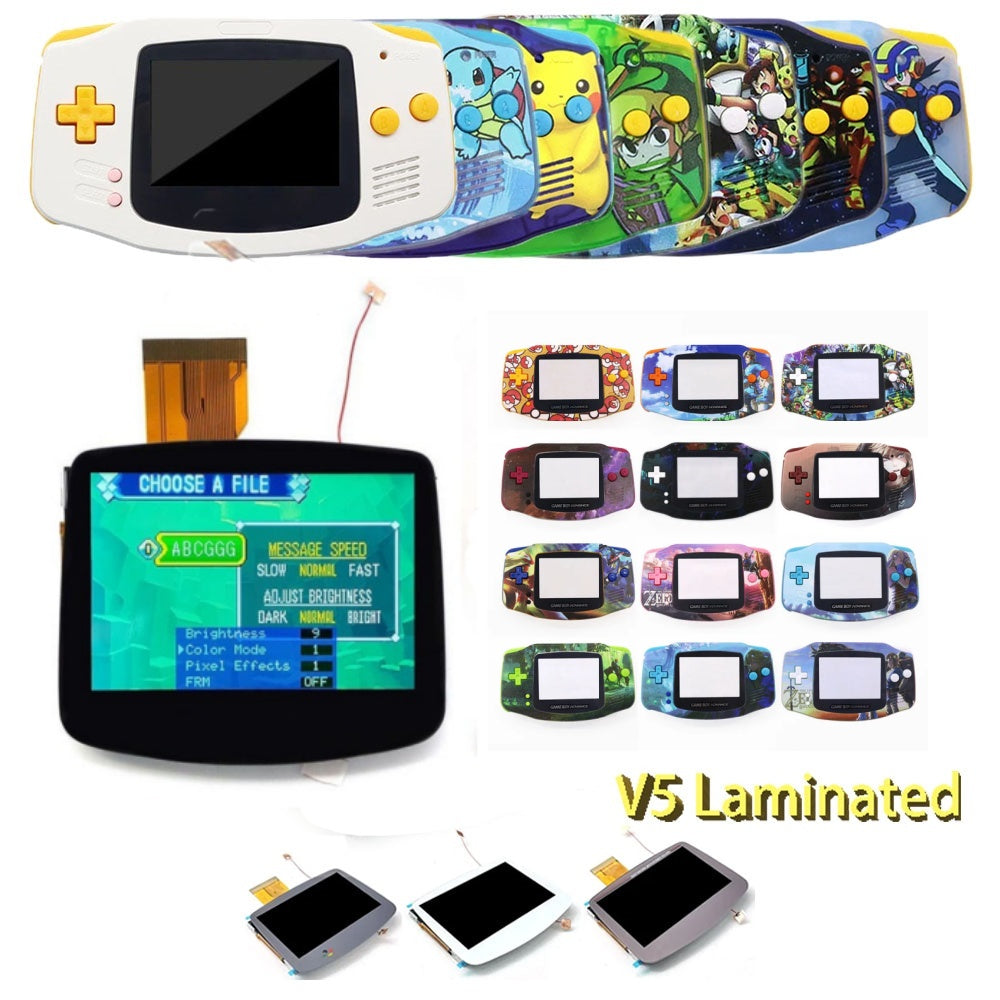

5. Built-in OSD Menu!
6. Retro pixel Effects: Normal, Retro pixel (like original AGS-101 LCD), Scanline 1 and Scanline 2.
7. 15 brightness levels.
8. 8 color modes.
9. FRM On/OFF function(Frame blending On/OFF) is included. For some extremly few games, the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM is OFF.
10. Touch Screen to change the brightness and the color modes.
11. Compatible 32pin and 40pin motherboard.
The firmware of this kit was upgraded on August 26, 2024.
New firmware has added the following function:
12.Add Desaturation function!Adjust the desaturation to make the picture more like the original GBA. Desaturation from 0 to 20. Desaturation=20 is normal color. Desaturation=0 is black & white.
13.Add 'Touch Shourtcut ON/OFF' function!Set 'Touch Shourtcut' OFF to avoid auto cycling colour modes.
*You need to welding 3 wires to control the OSD Menu*
OSD Menu Operation:
-Press the Select+L+R buttons for 1 second at the same time, then release the buttons to activate the OSD Menu.
-Press the Select button to select the adjustment item when OSD Menu activated.
-Press the L or R button to adjust the item when OSD Menu activated.
You don't need to do any welding if you don't want the OSD menu!
----------------------------------
Packing including :
-

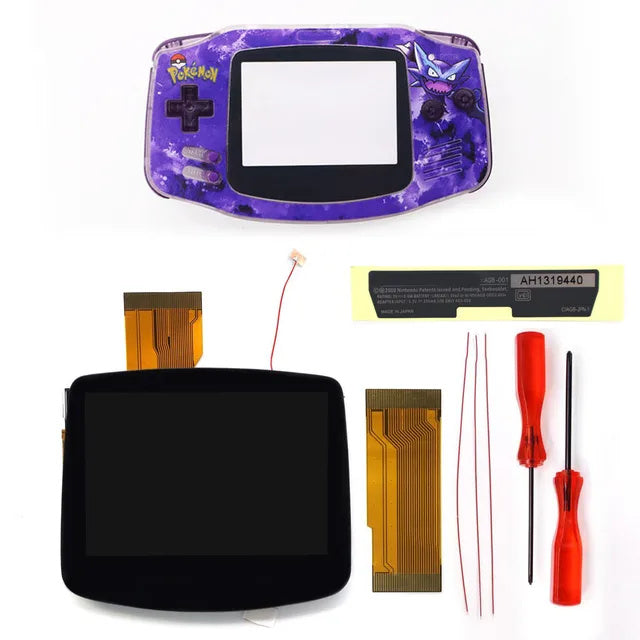

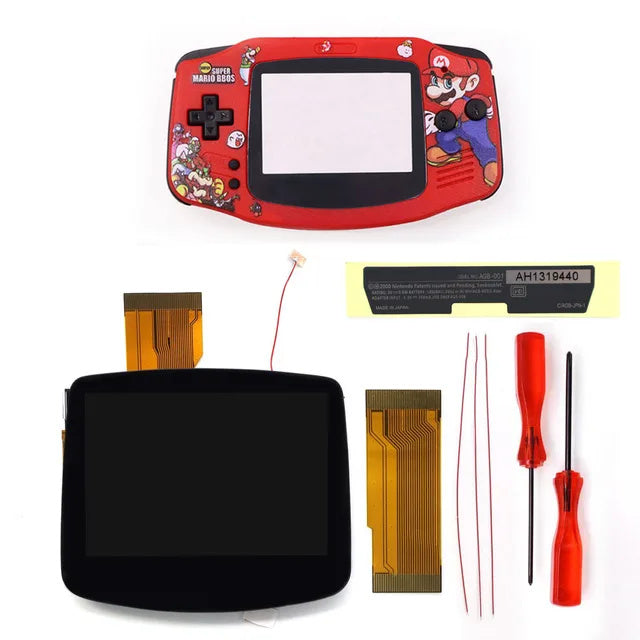

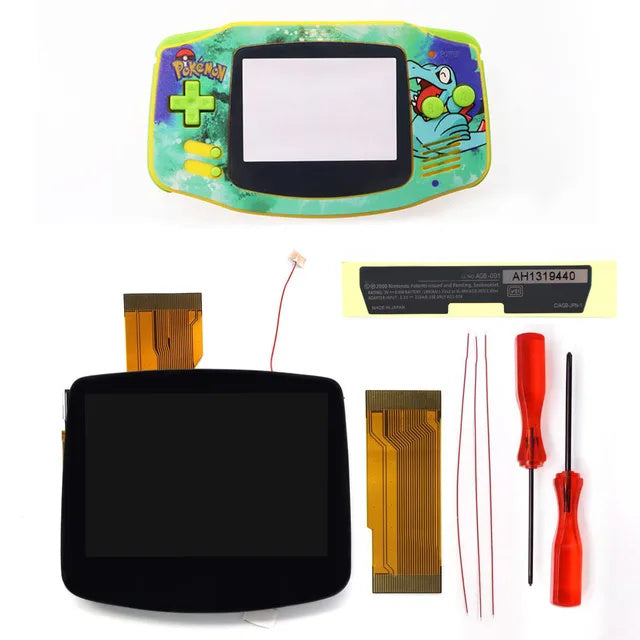

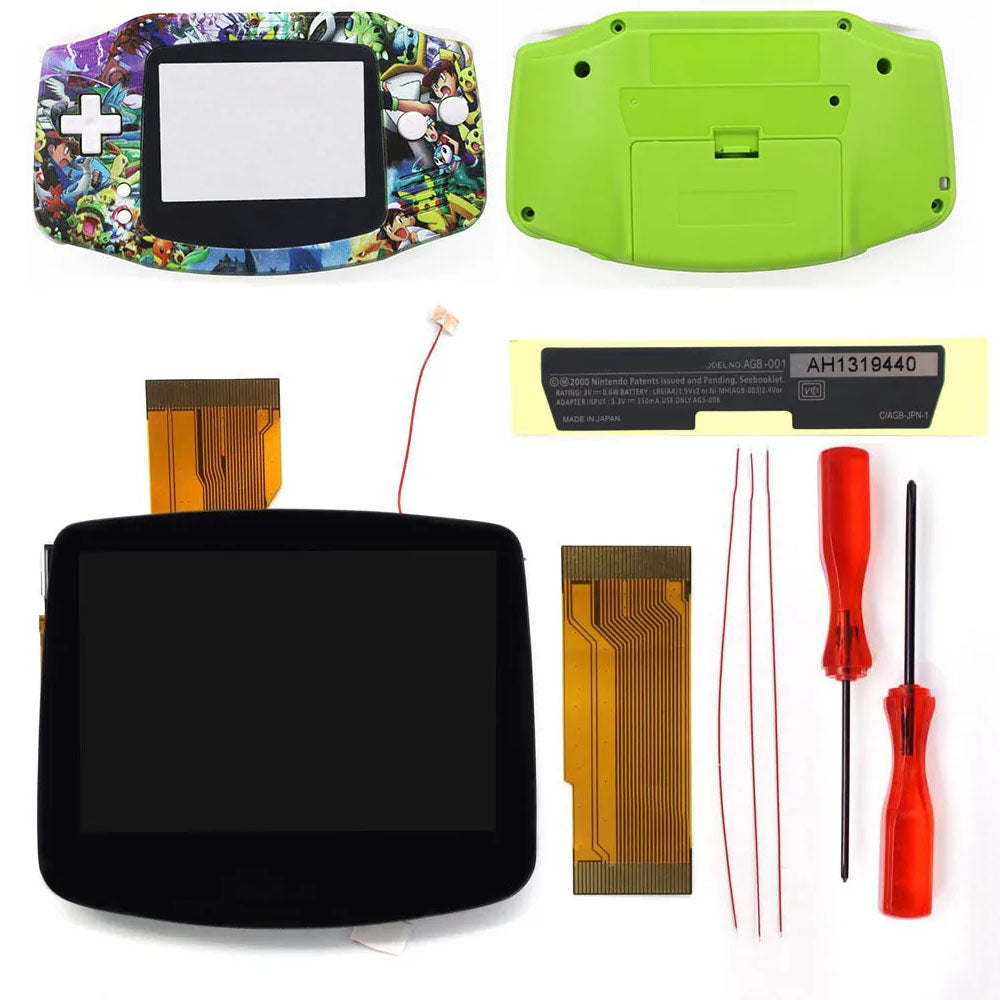

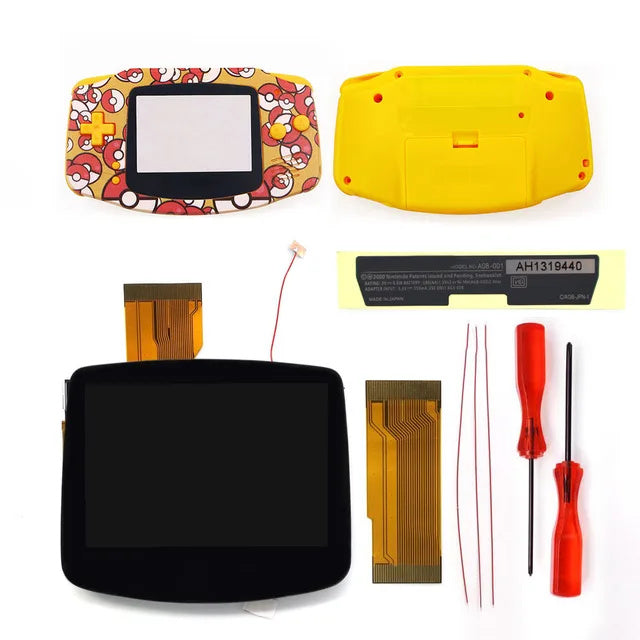

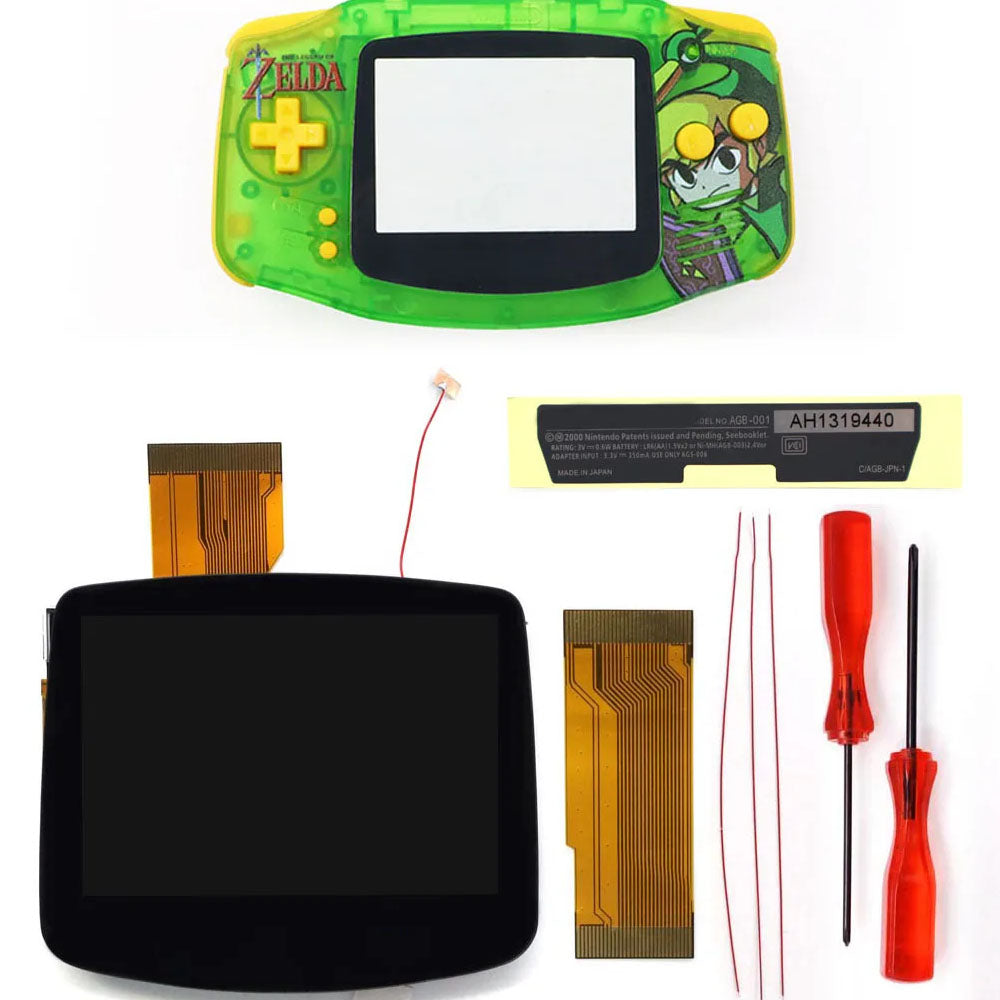

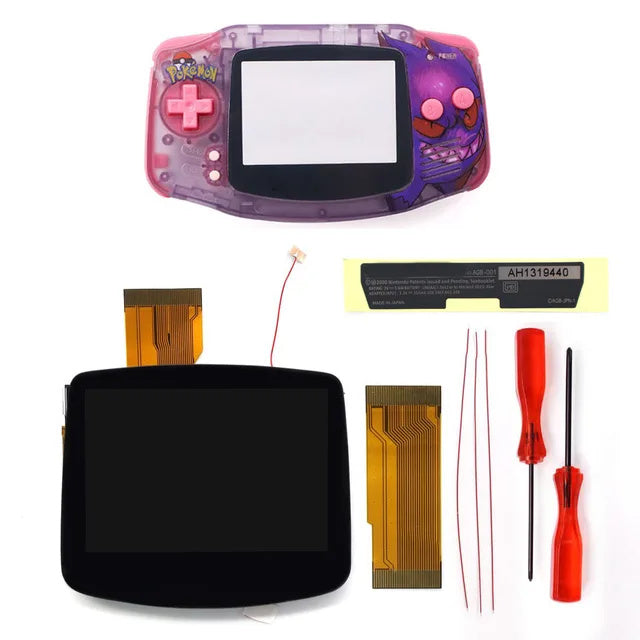

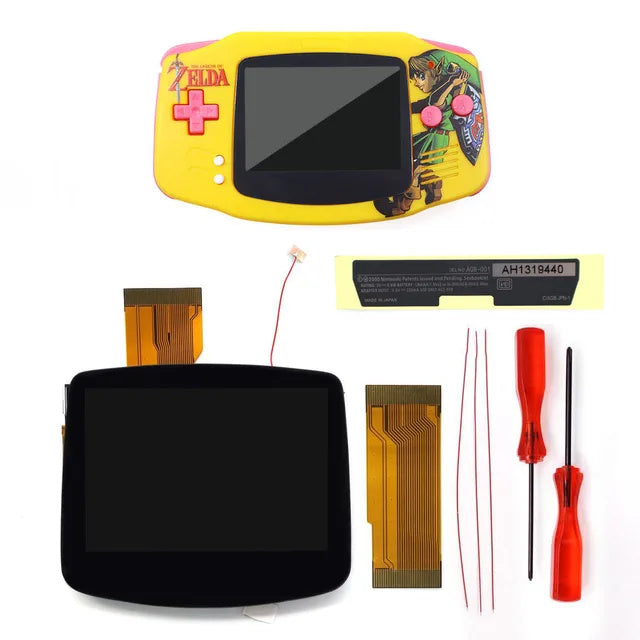

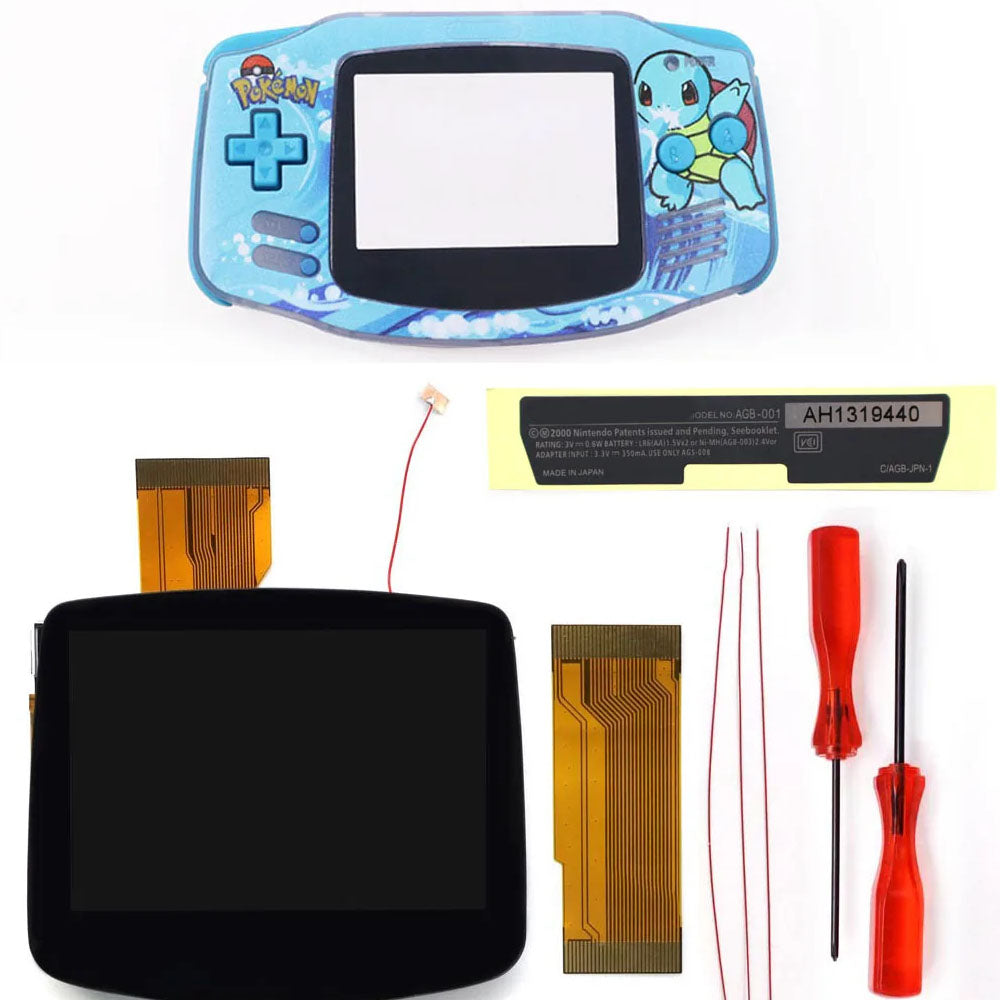

1x Pre Laminated IPS LCD, 2x Screwdrivers, 3x red wires, 2x ribbon cable.
-
1x Pre Laminated IPS LCD, 2x Screwdrivers, 3x red wires, 2x ribbon cable.1x Shell case, 1 set buttons, 1 set Rubber Pad, 1x Sticker label,1 set screws.
-
1x Pre Laminated IPS LCD, 2x Screwdrivers, 3x red wires, 2x ribbon cable.1x Shell case, 1 set buttons, 1 set Rubber Pad, 1x Sticker label,1 set screws.
