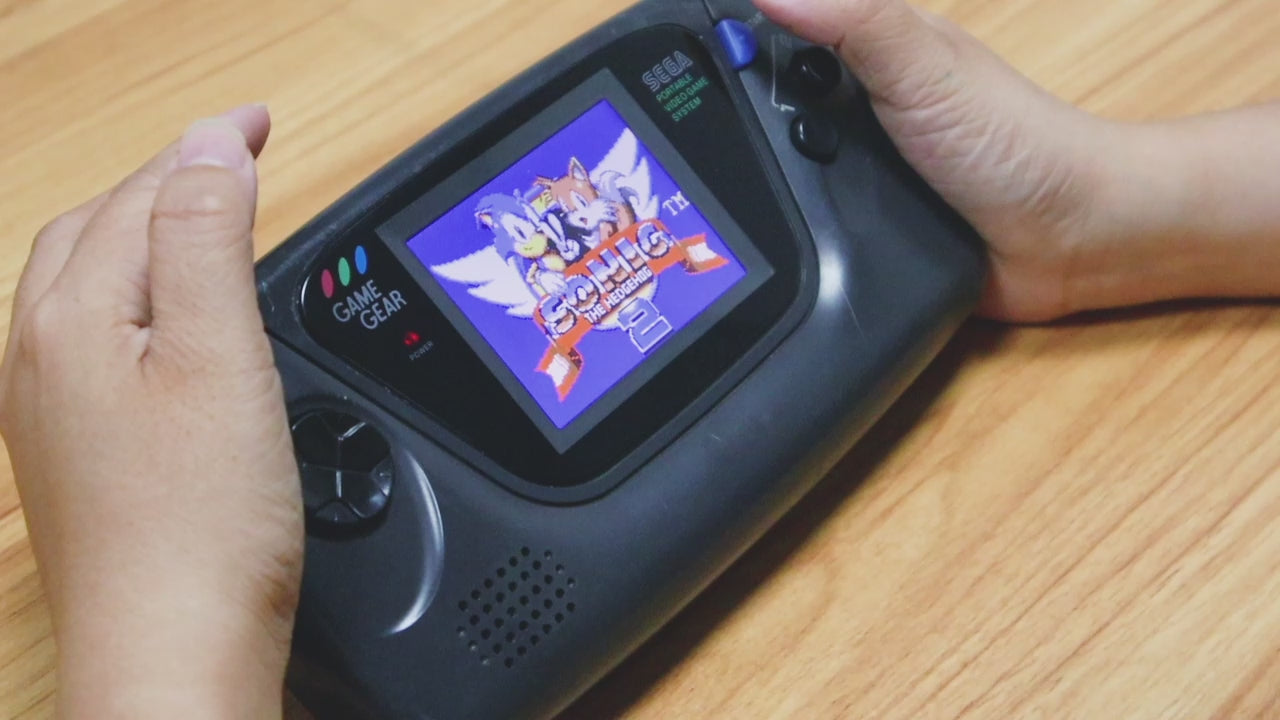

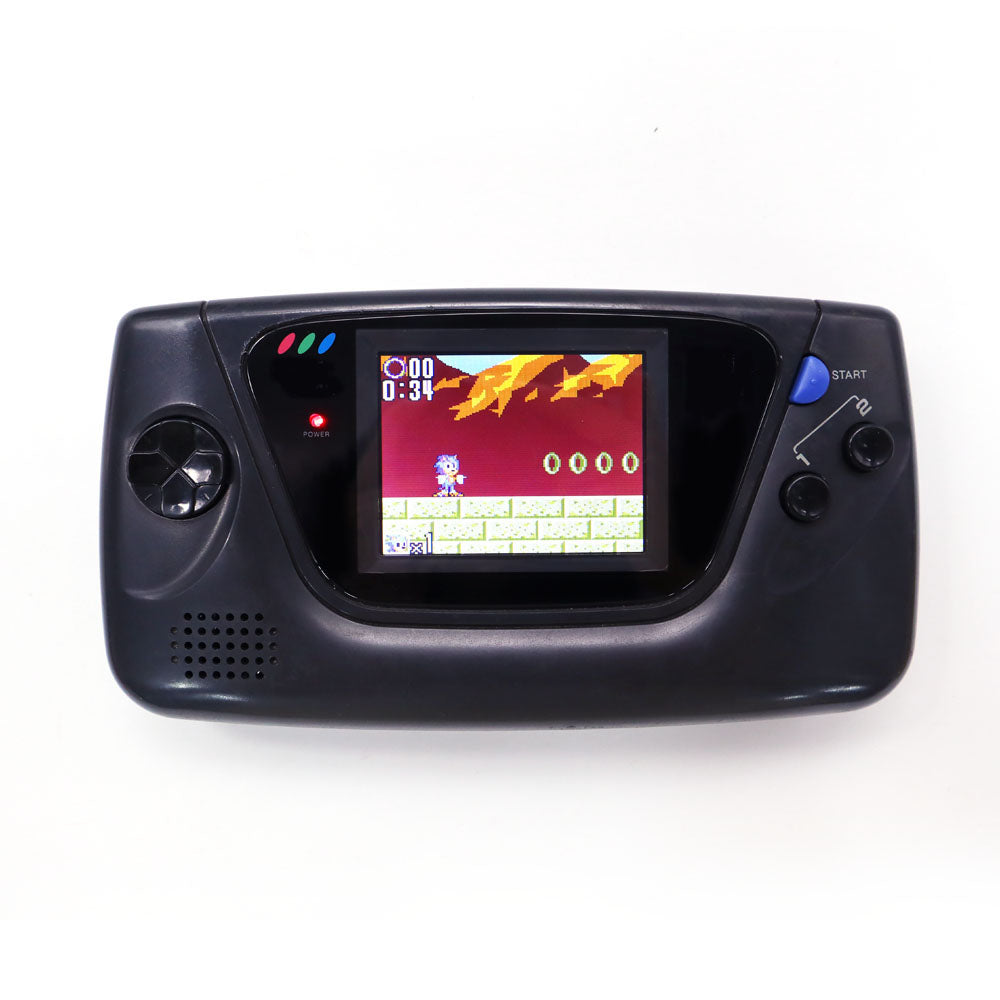

3.5 inch 8 color Touch Control Backlight LCD Display Screen For Sega Game Gear GG , Mod Kits DIY Updated Console
3.5 inch 8 color Touch Control Backlight LCD Display Screen For Sega Game Gear GG , Mod Kits DIY Updated Console
Impossible de charger la disponibilité du service de retrait
Product Feature:
1. Screen Information:
3.5-inch a-Si TFT LCD liquid crystal screen,
320*240 resolution, point-to-point full-screen display, high refresh rate, bright colors
2. Support Sega single chip motherboard and dual chip motherboard:
--Single chip motherboard:1 ASIC PCB revisions 837-9130 / 837-9024 / 837- 8560
--Dualchip motherboard: 2 ASIC PCB revisions 837-7996 / 837-7719-01 VA0/837-7398-03
NOTE：
⚠Please contact me after receiving the product, I will send the instruction manual to you.
⚠Don't support: Majesco Game Gear VA4 / VA5
⚠The motherboard with the "MADE IN TAIWAN" logo on the motherboard of the game console does not support.
⚠ Some SEGA housing have a metallic coating on the inside.. The metallic coating on the plastic was conductive. It causes the color modes/Aspect modes to cycle automatically. Please scrape off the metallic coating and put the touch direct on plastic.
Technical Information:

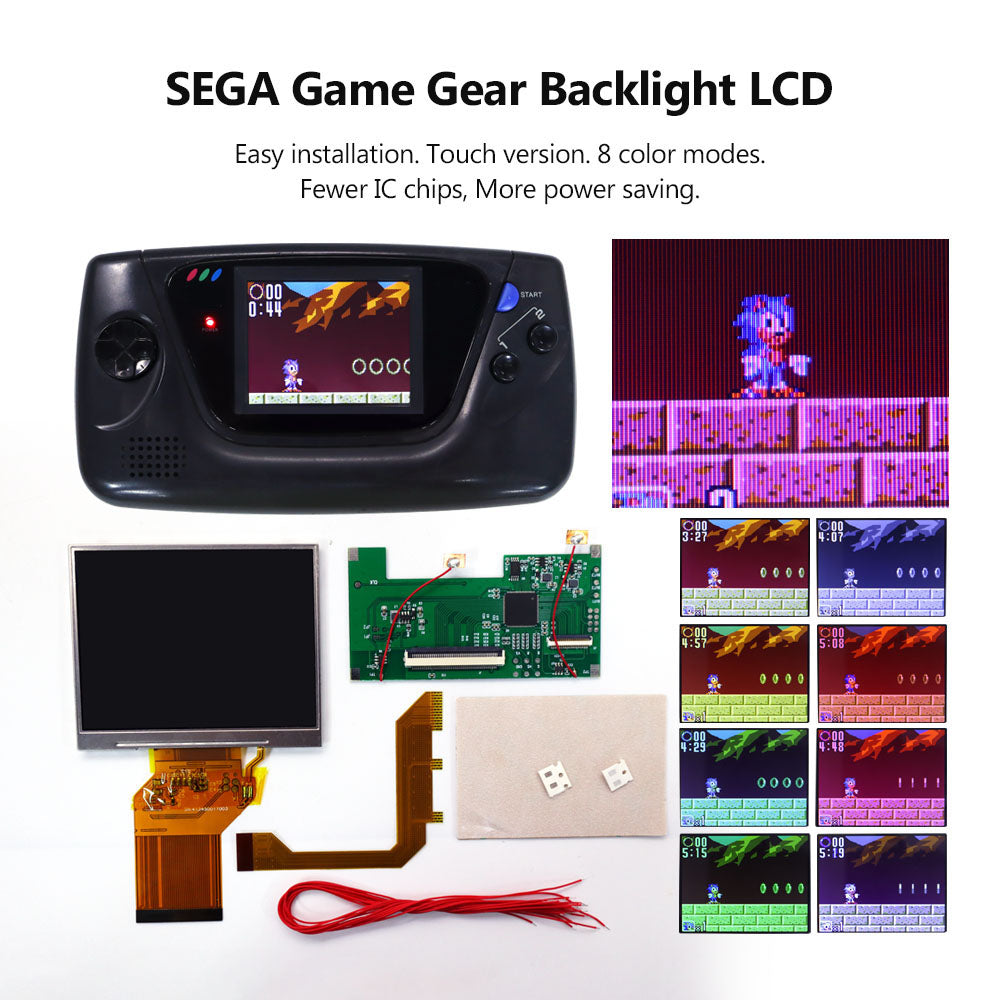

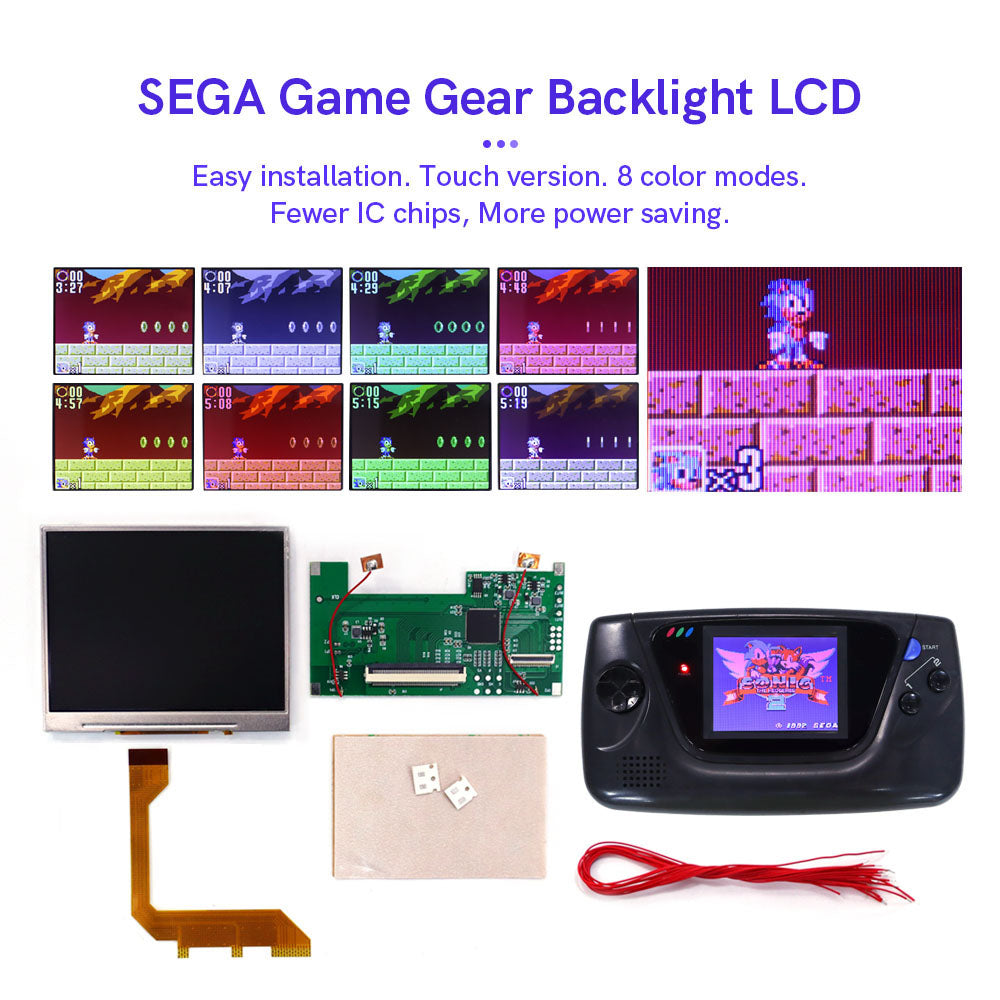

1. One chip design. More environmentally friendly. More power-saving.
2. Built-in SDRAM cache in the Chip.
3. FPC connect cable design. Simpler wiring and easier installation.

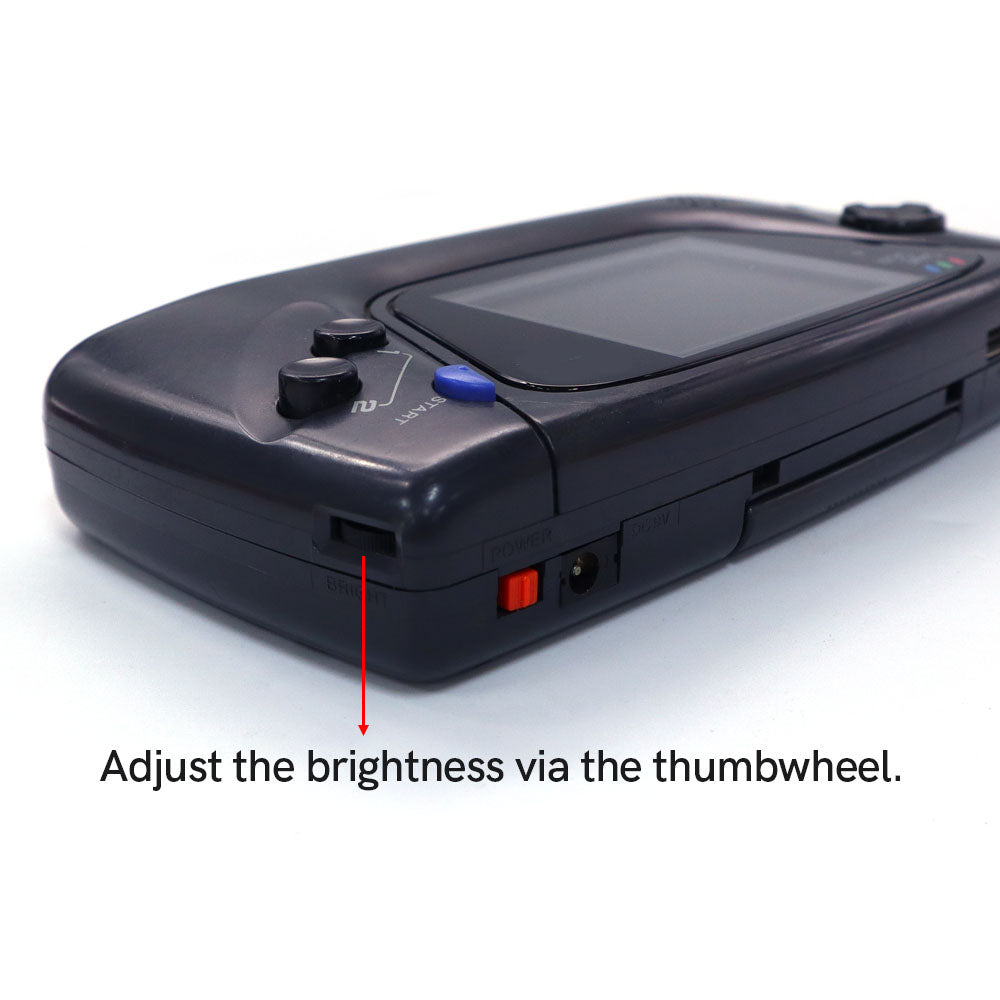

4. Adjust brightness via the thumbwheel.

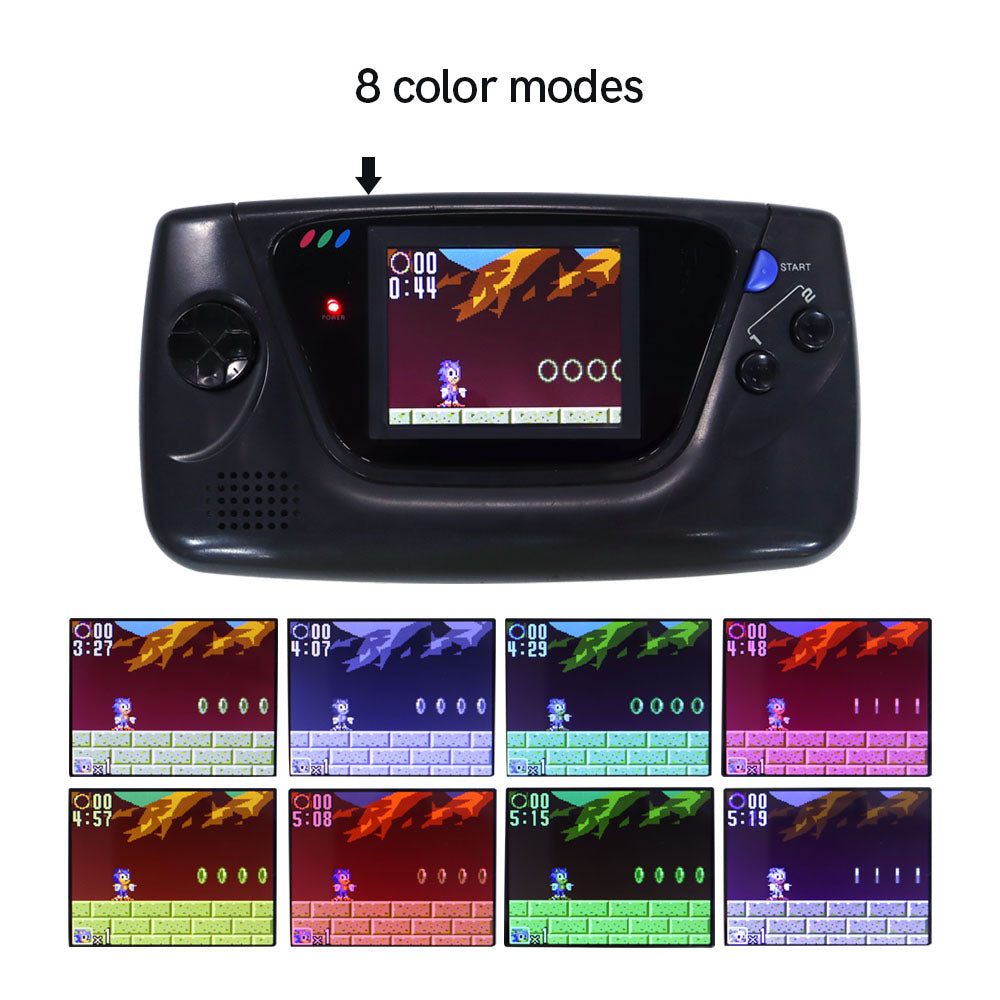

5. 8 color modes. 3 Image Aspect Ratio. Scanline.

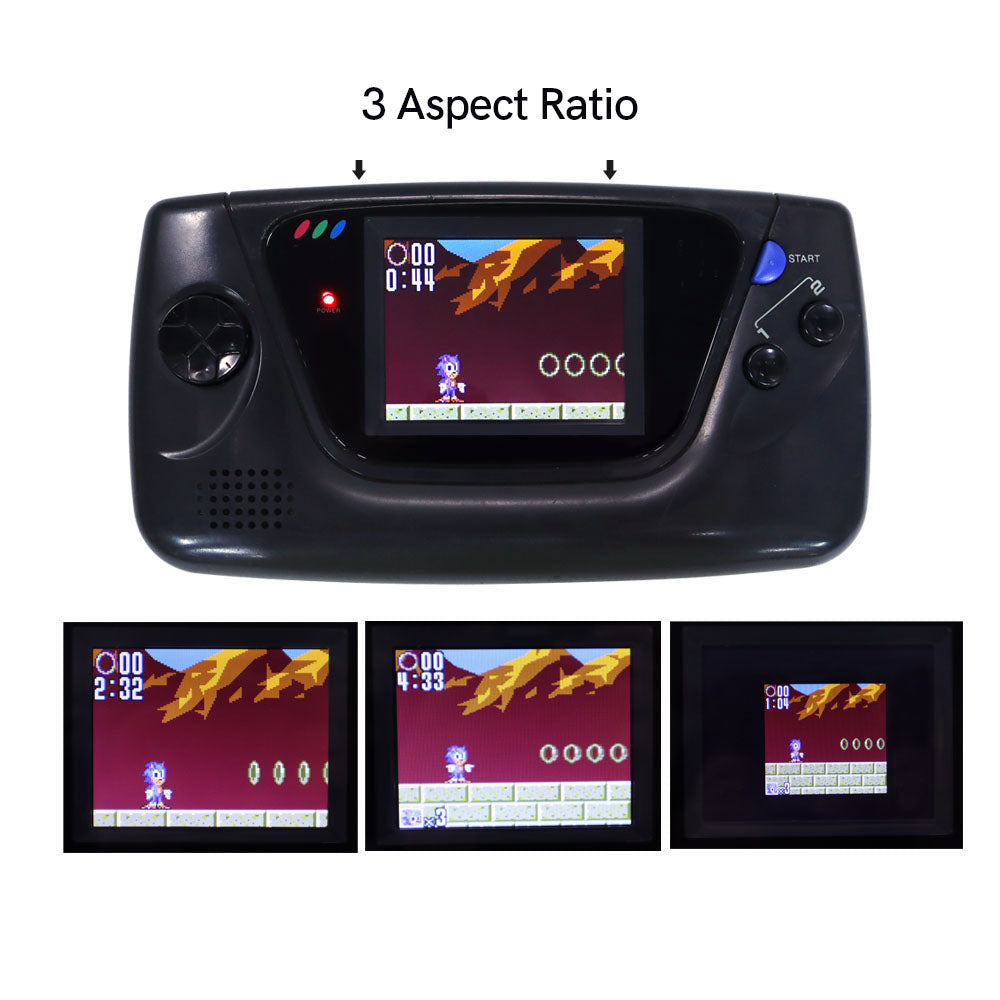

6. 3 Image Aspect Ratio. Small, Normal, Enlarge. Note: the 'Enlarge Aspect Ratio'not full screen.
7. Support VGA output. (Doesn't include the VGA connector)
Press 'START+1+2' to turn VGA output on or off.
Touch the 'left touchpad' to change the color modes.
Touch and hold the 'left touchpad' 3 seconds to turn 'scan line' on or off.
Touch and hold the 'right touchpad' and 'left touchpad' 3 seconds to change the image aspect.

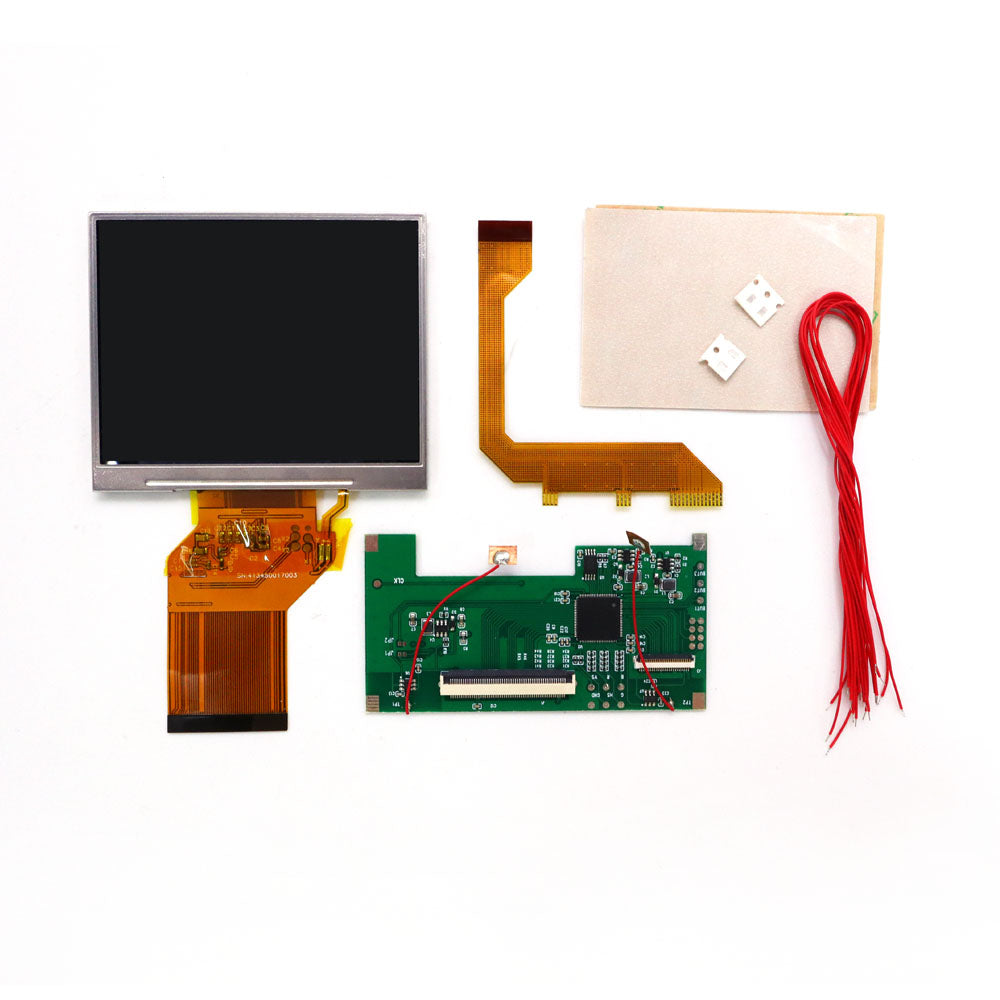

Package includes:
1x Backlight LCD.
1x PCB.
1x FPC connect cables.
Double-sided tape.
5x 10pF capacitors.
2x 200Ohm resistor
Red wires.

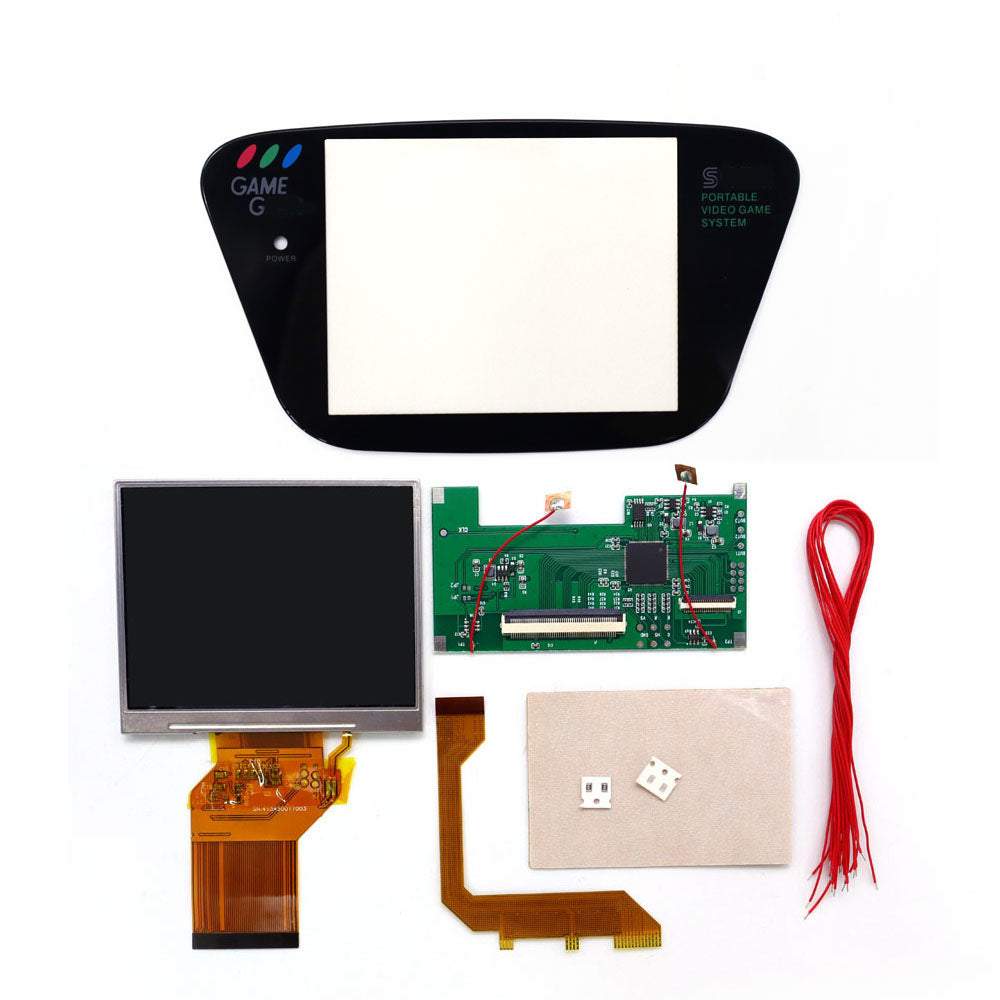

Glass screen lens(If you choose the 'LCD kit with lens' option).
Note
Doesn't include the VGA connector!
Please contact me after receiving the product, I will send the instruction manual to you.
