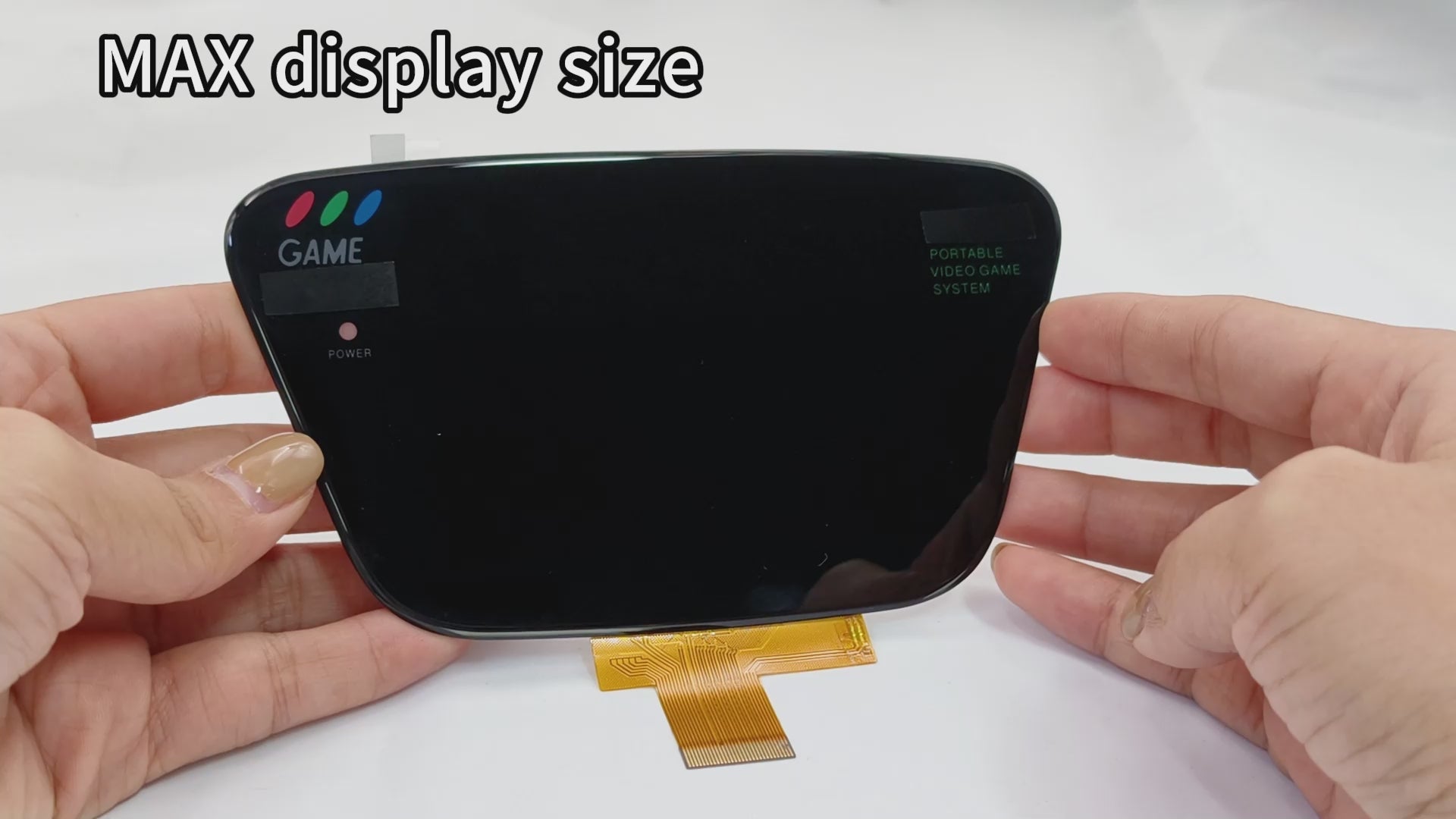

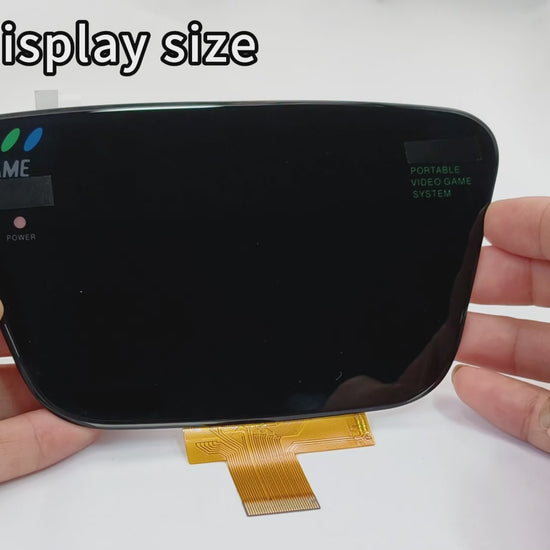

MAX display size IPS LCD. The display size is 16% larger than the original screen.
It also can set to the original display size.
Installation is easy; only need to remove one original screen, two fuses and one resistor.
Note: This LCD kit compatible with GG, SMS and SG-1000 games.
Note: Doesn't include the motherboard
You need to cut the shell case to put in the IPS LCD. Please contact me after you receive it. I will send the instruction manual to you.

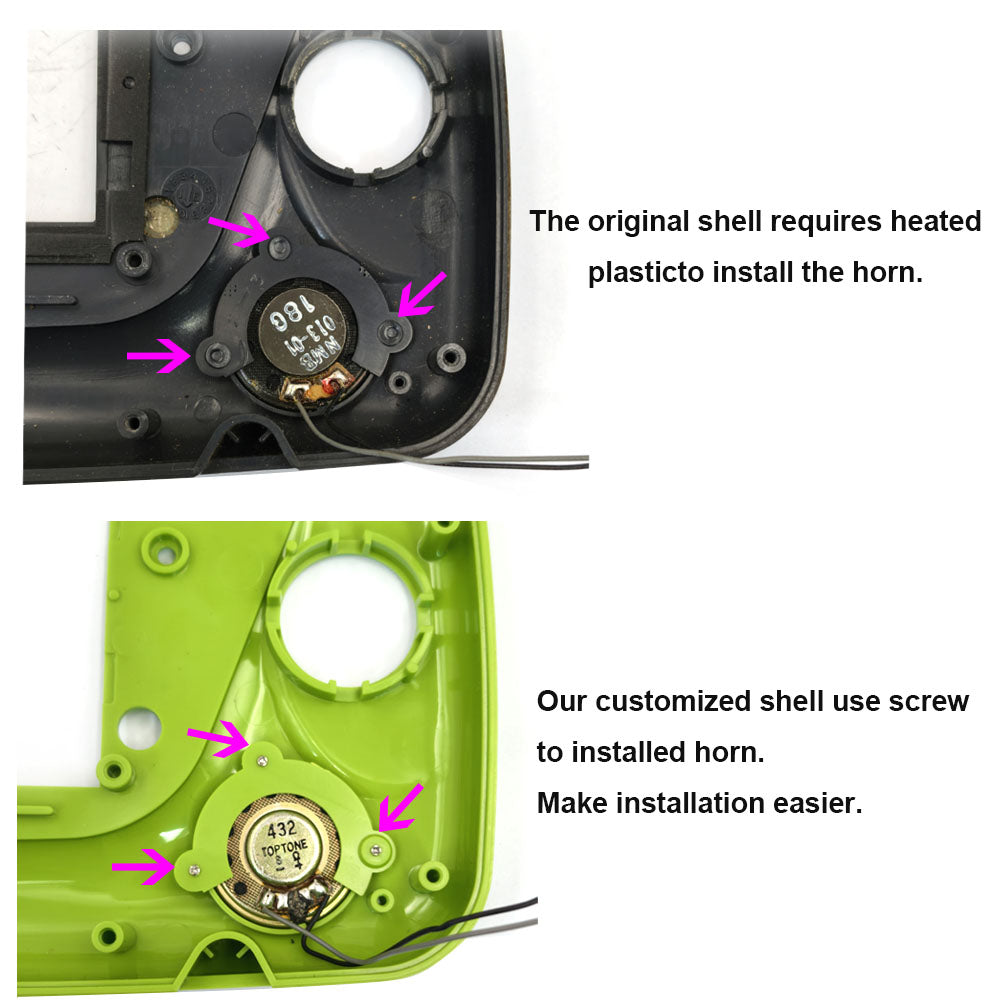

Or,You can buy the customized shell case from this listing if you don't want to cut the sell case by yourself.
1. Support Sega single chip motherboard and dual chip motherboard:
--Single chip motherboard:1 ASIC PCB revisions 837-9130 / 837-9024 / 837- 8560
--Dualchip motherboard:2 ASIC PCB revisions 837-7996 / 837-7719-01 VA0/837-7398-03
NOTE1: Doesn't supported: Majesco Game Gear VA4 / VA5
NOTE2: The motherboard with the "MADE IN TAIWAN" logo on the motherboard of the game console does not support.
Description:

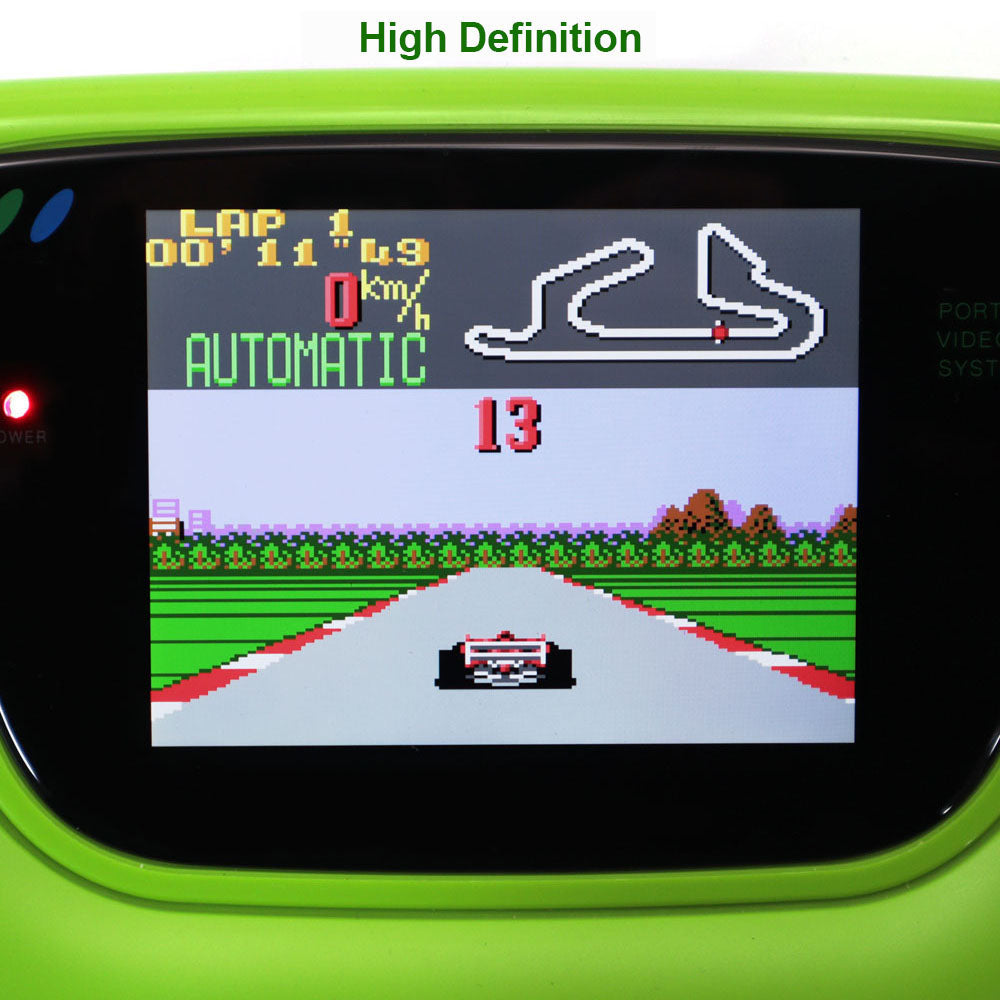

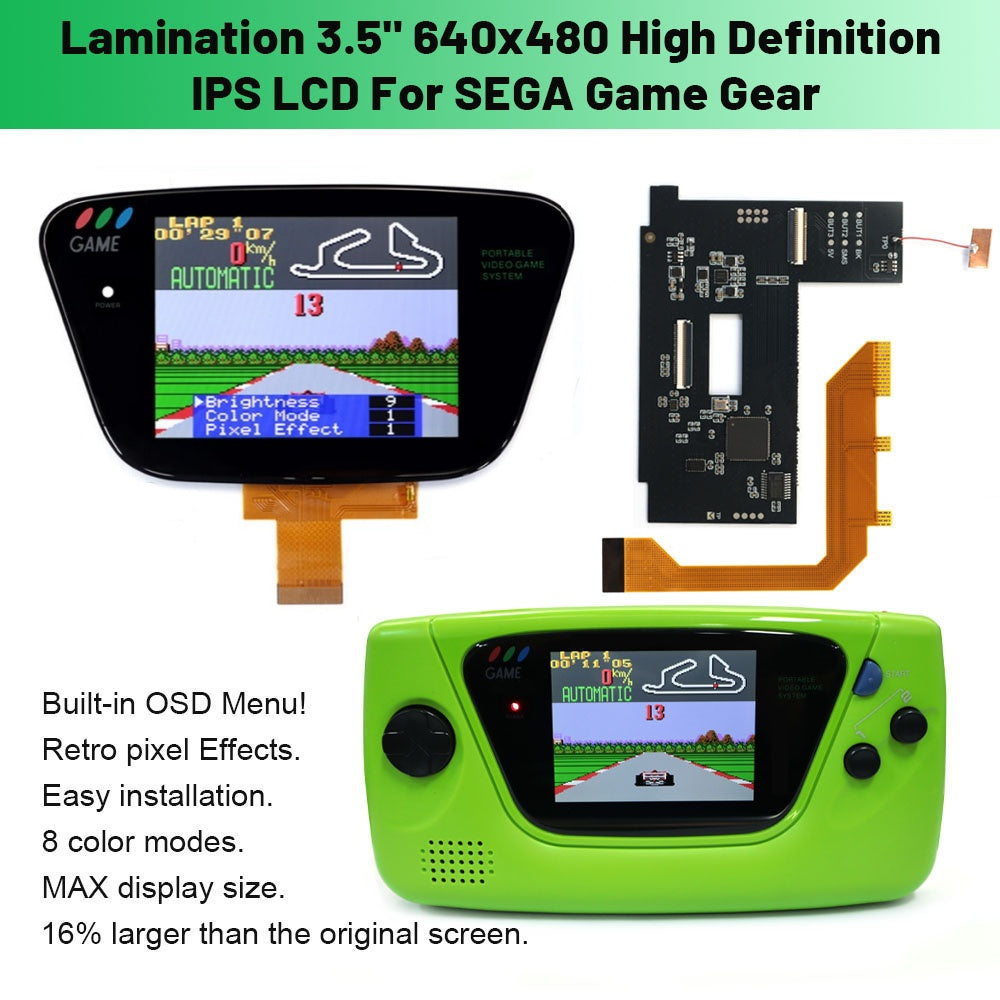

1. 640x480 display resolution. HD IPS LCD.

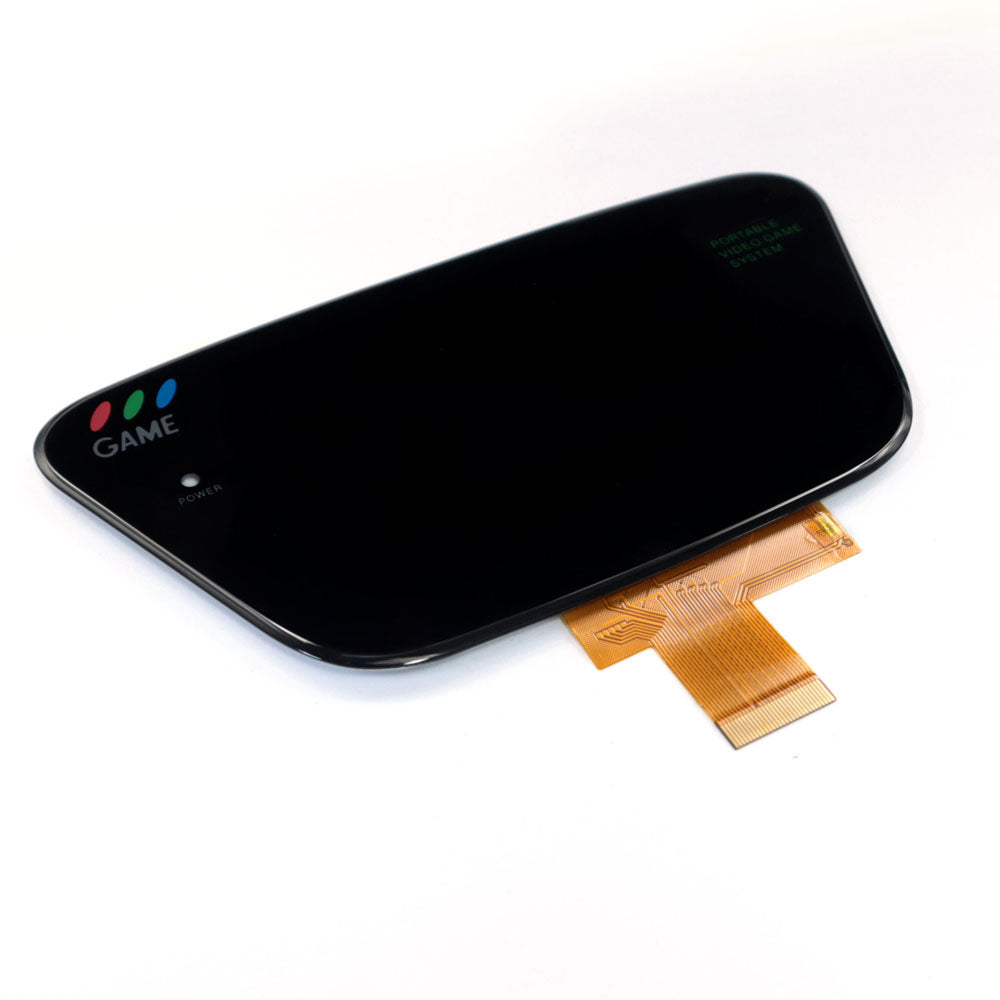

2. Pre Laminated Glass Screen.

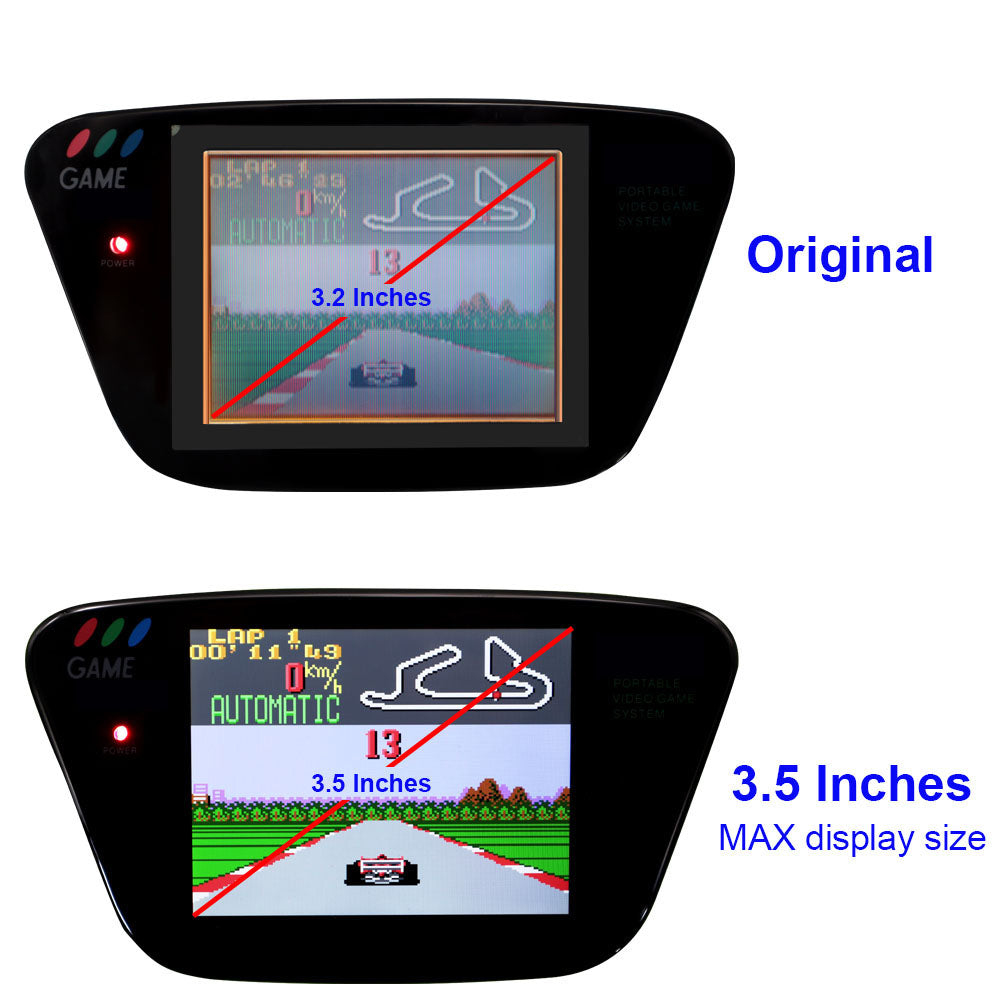

3. The display size is 16% larger than the original screen. It also can set to the original display size
4. Wide View angle up to 178 degree.
5. Built-in OSD Menu!
6. High brightness, 15 brightness levels.
7. Retro pixel Effects: Normal, Retro pixel, Horizontal Scanline, Vertical Scanline.
8. Built in 3 LCD Aspect Ratio. Full Screen, Original Display sizey, Small size.

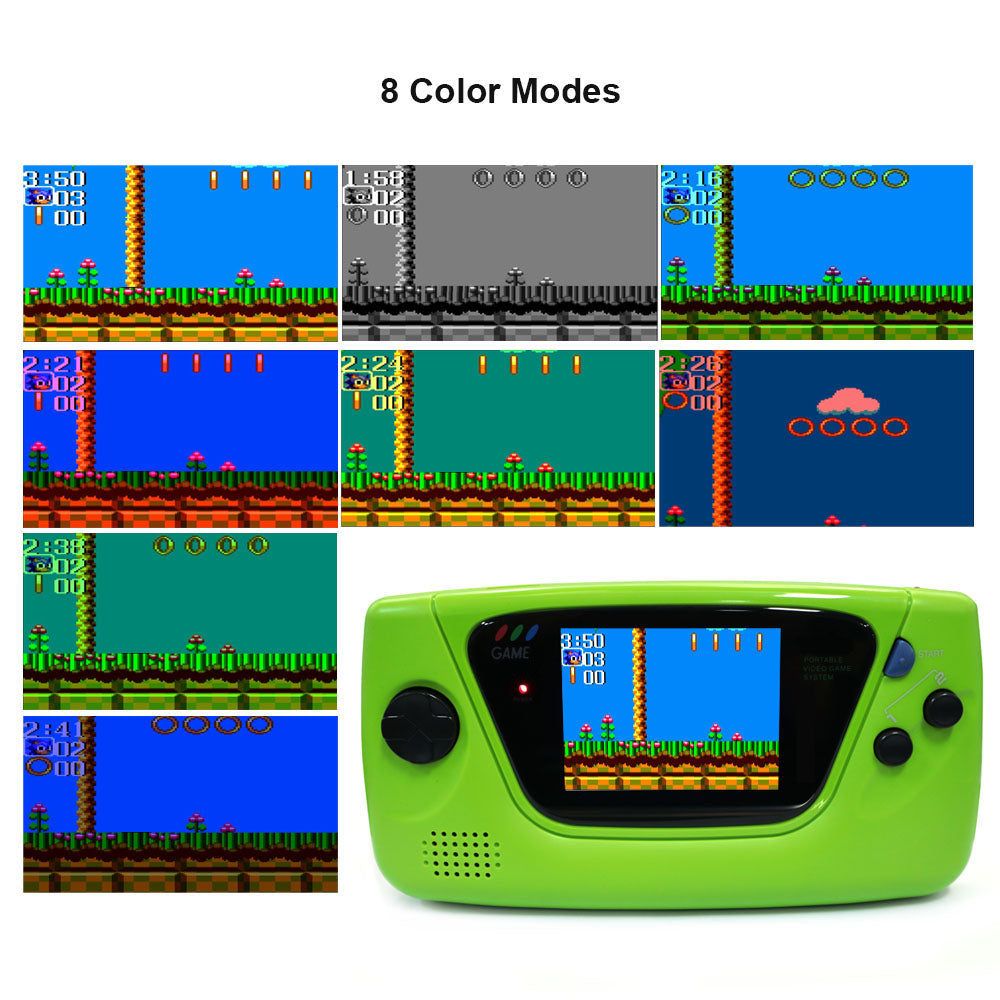

9. 8 color modes.
10. Image position adjustable. (It has no effect in full screen)
11. FPC connect cable design. Simpler wiring and easier installation.

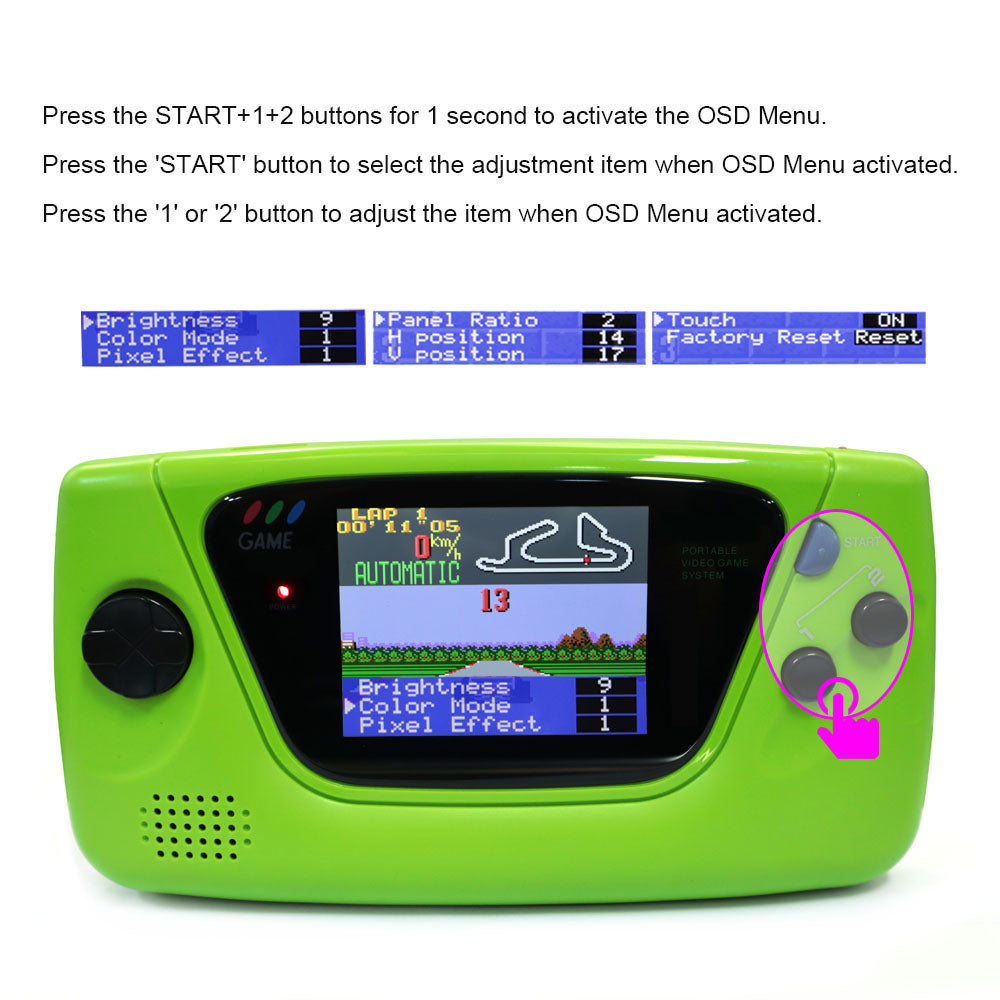

OSD Menu Operation:
-Press the START+1+2 buttons for 1 second to activate the OSD Menu.
-Press the 'START' button to select the adjustment item when OSD Menu activated.
-Press the '1' or '2' button to adjust the item when OSD Menu activated.

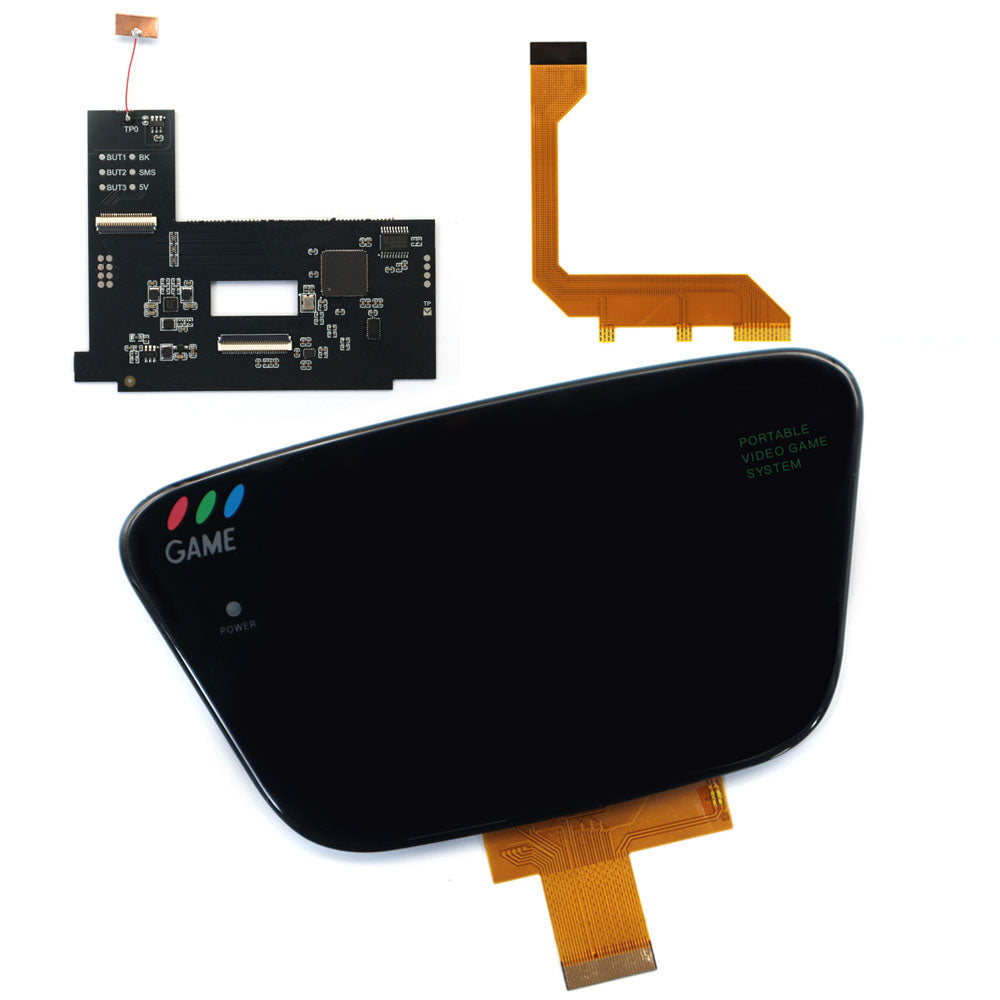

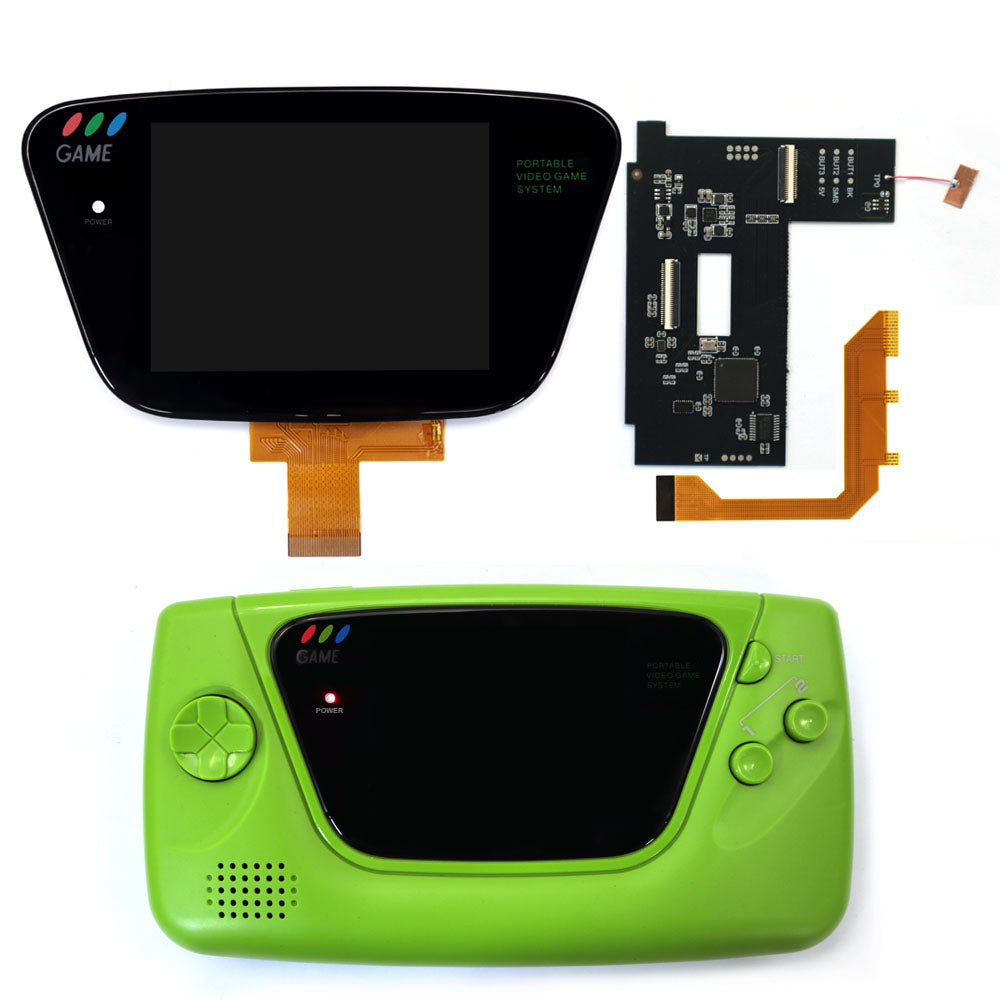

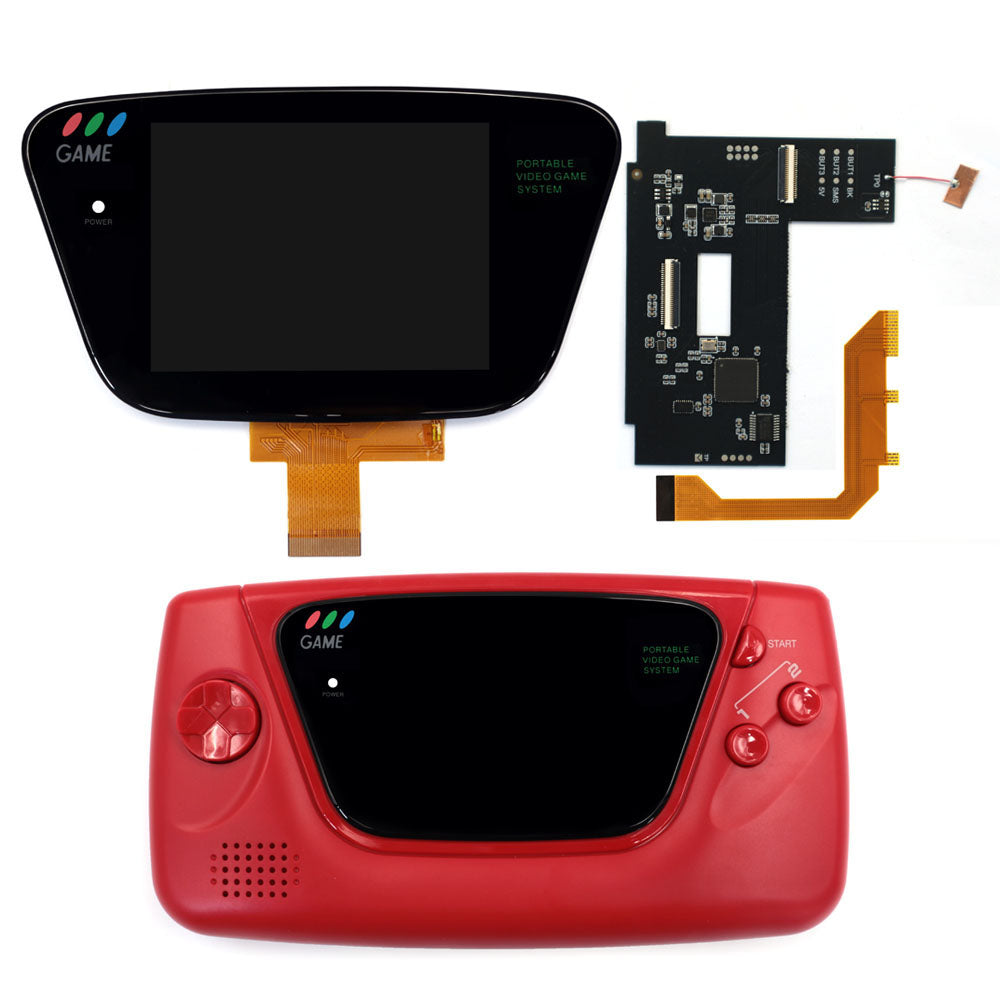

Packing including :
1x Laminated Backlight LCD.
1x PCB Board.
1x FPC connect cables.
1x Double-sided tape.
Several Red wires.

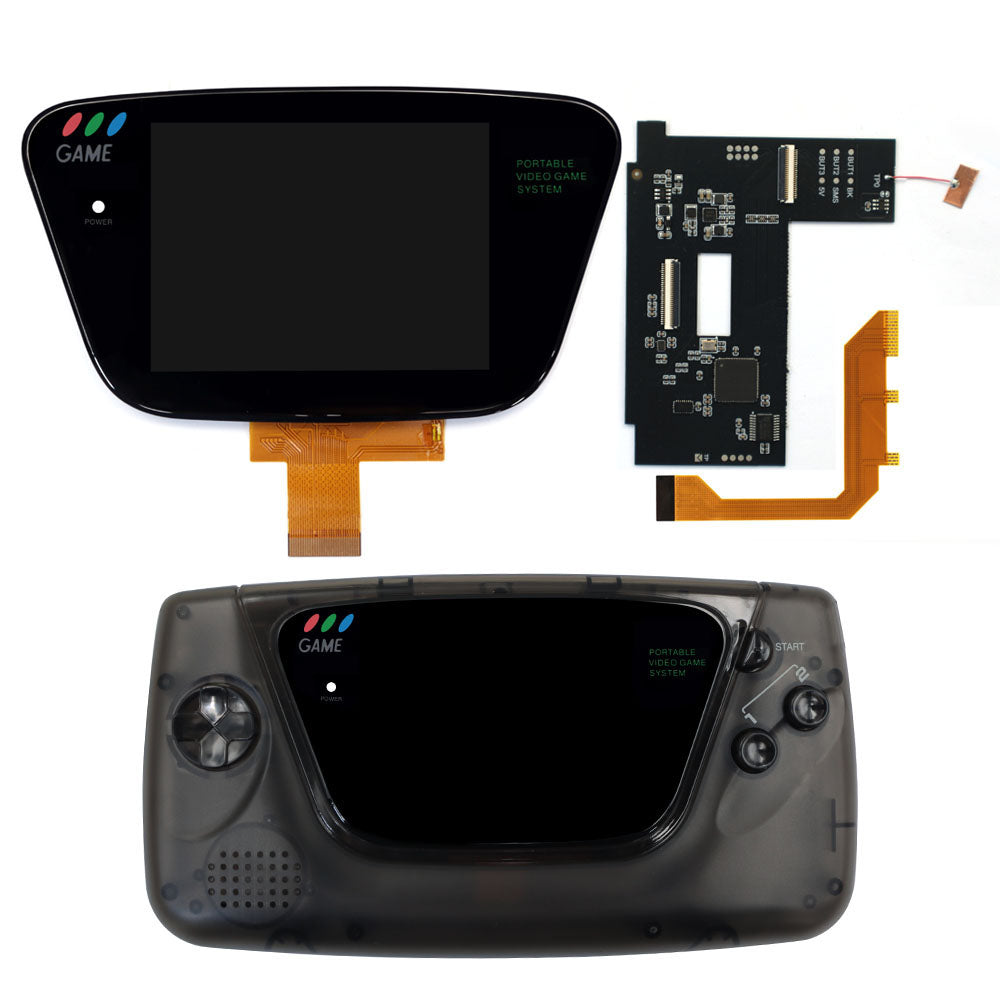

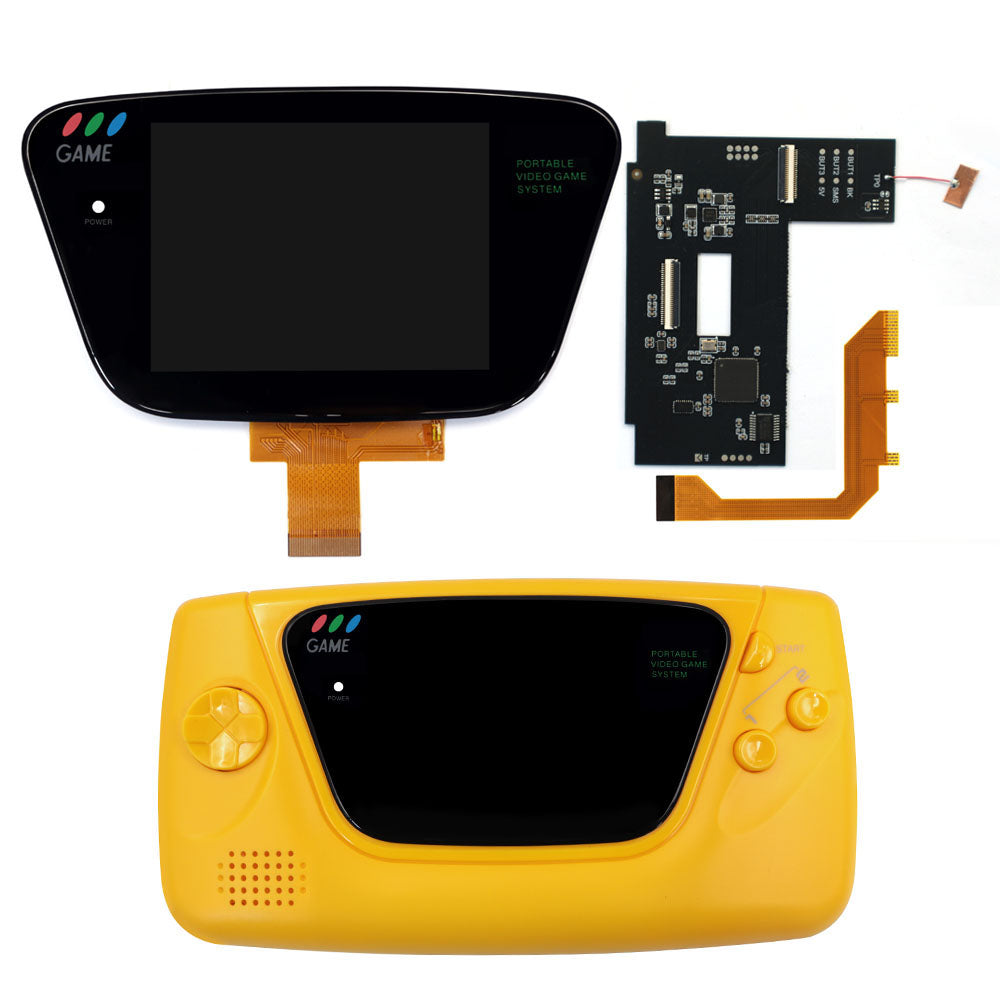

Or,
1x Laminated Backlight LCD.
1x PCB Board.
1x FPC connect cables.
1x Double-sided tape.
Several Red wires.
1x Shell case, 1 set buttons, 1 set Rubber Pad, 1 set Sticker label,1 set screws.+
