Product Feature:

Note: Trimming the original shell is very difficult. We strongly recommend purchasing our custom shell.

Note: There is LOGO on the glass screen lens. And the logo can be changed to different color in the OSD menu.

New features:

1. Add touch sensor to operate the OSD menu.

2. Add Desaturation. This function can make the color of IPS LCD images closer to the original color of GBA games.

3. Add FRM On/OFF function. (Frame blending On/OFF) is included. For some extremely few games, the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM is OFF.

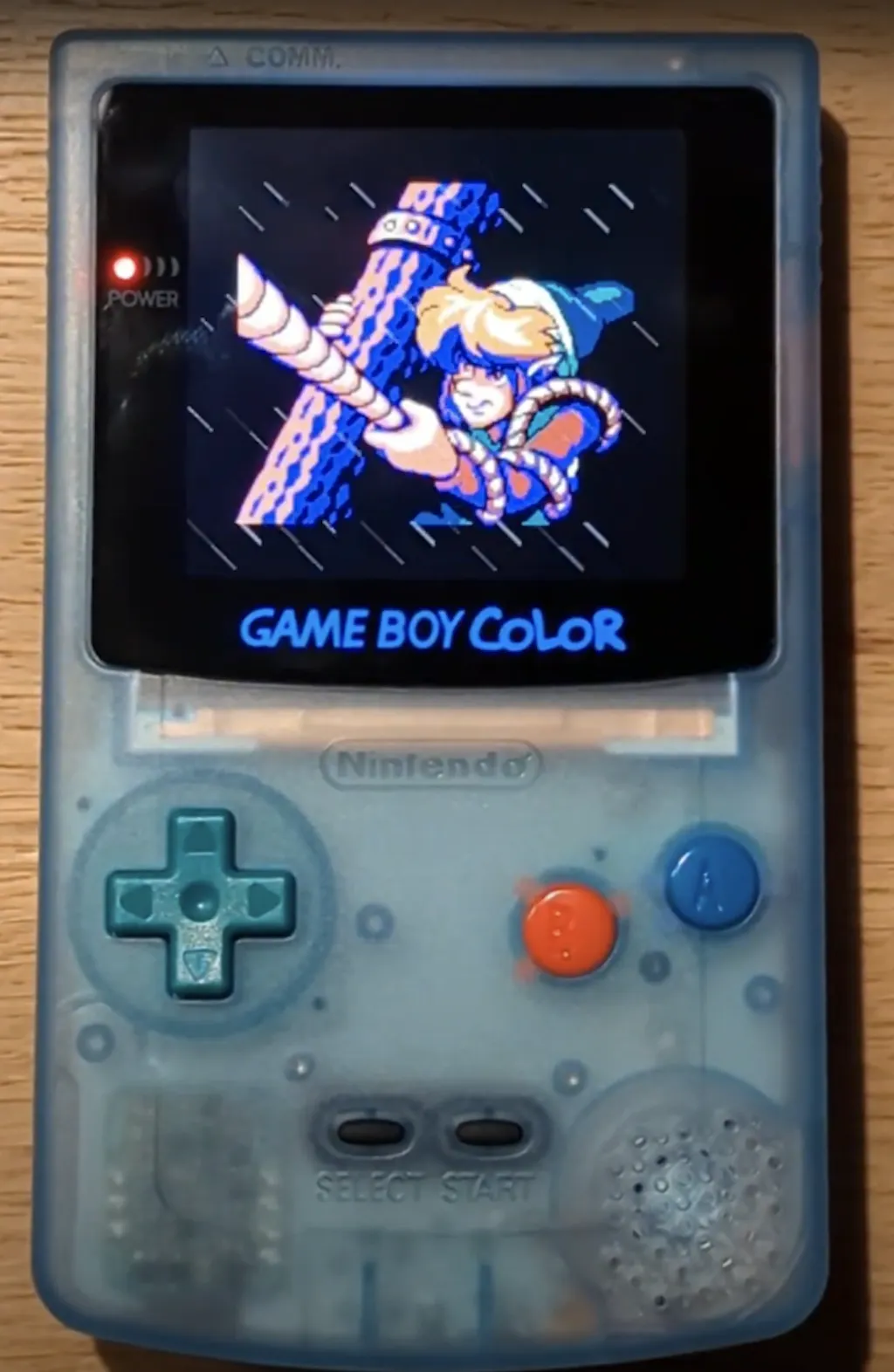

High Definition IPS LCD. 16 pixels to 1 pixel. Integer scaling. No any distortions.

The display area is 25% larger than the original.

Wide View angle up to 178 degree.

Features:

1. Built-in OSD Menu!

2. 20 levels brightness.

3. Desaturation. This function can make the color of IPS LCD images closer to the original color of GBA games.

Note: ‘Desaturation’can only be adjustable in normal color mode.

4. Built-in 31 Logo Color.

 5. Built-in 5 Retro Pixel effects.

6. Touch Shortcut ON/OFF.

7. Image position adjustable. No need to worry about the misalignment of the LCD screen in the installation.

 8. Battery level display On/OFF

 9. FRM On/OFF function.

 10.  8 color modes.

 11. ‘Color Adjust’ function. Note: 'Color adjust' is not adjustable in normal color mode.

 12. Supports two menu operation methods:  Using touch sensor or buttons.

If using touch sensor to operate the menu, there is no need to solder anything.

If using buttons to operate the menu, you need to solder 3 wires.

(Note: touch sensor not the touch screen)

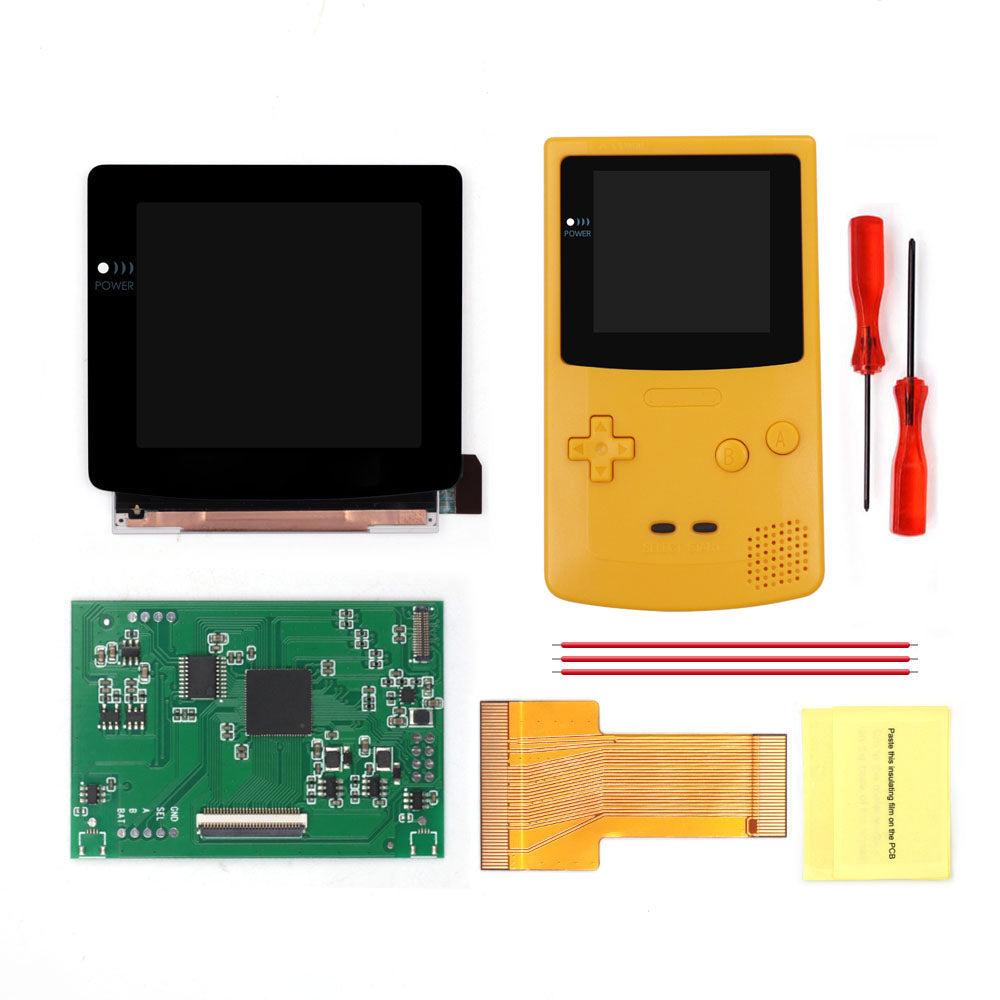

Include:

1x IPS LCD.

1x PCB.

1x flex cables.

2xScrewdrivers.

4x red wires.

(1x Pre-cut shell case,1 set buttons, 1 set Rubber Pad, 1x Sticker label (If you choose the pre-cut shell+LCD kit))
