Laminated 2.8 inch Larger IPS Screen LCD Integer Scaling Build in OSD For GBP Gameboy Pocket Retro Pixel Screen Kits with Shell

 Laminated 2.8inch Larger IPS Screen LCD Integer Scaling Build in OSD For GBP Gameboy Pocket Retro Pixel Screen Kits with Shell

Note: There is LOGO on the glass screen lens.

Note: Not include the game console motherboard.

You need do the soldering to connect the "BAT" to the power switch second pad. Otherwise it will not work. Please check the installation guides .

Mainly Functions/ Features:

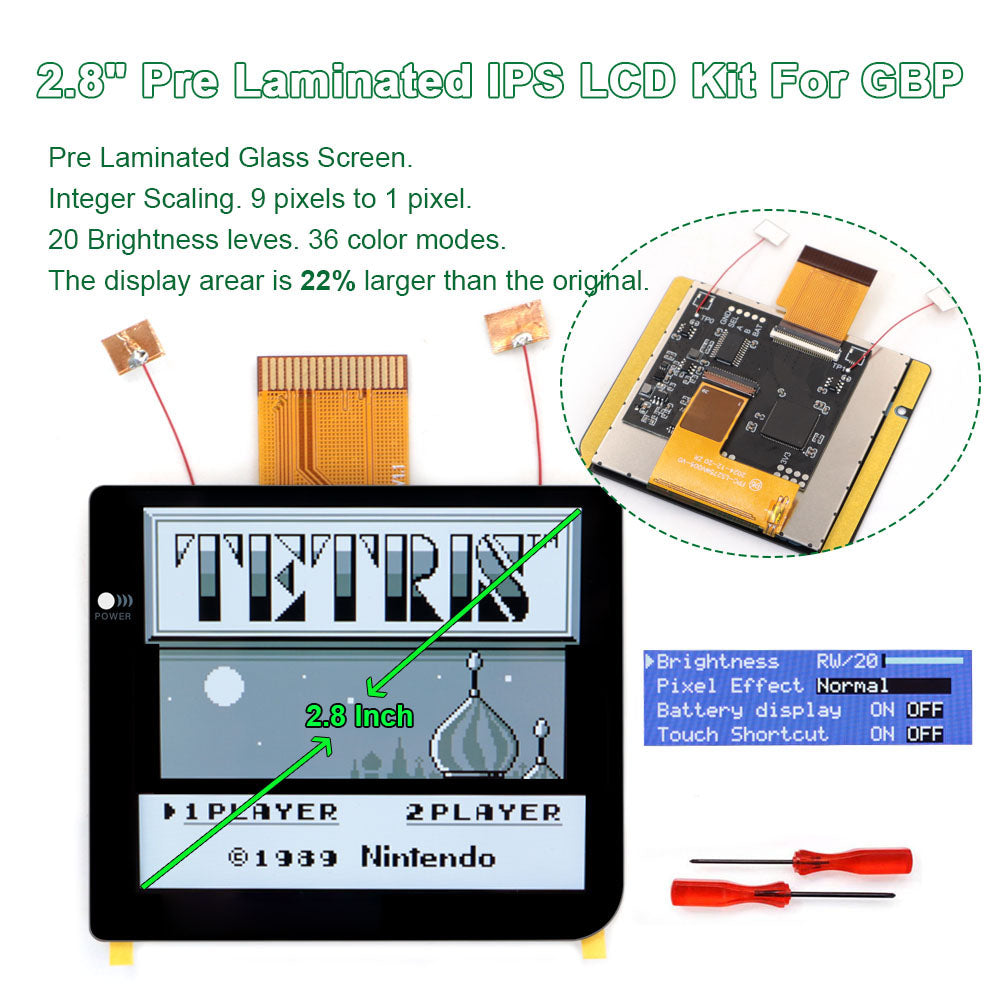

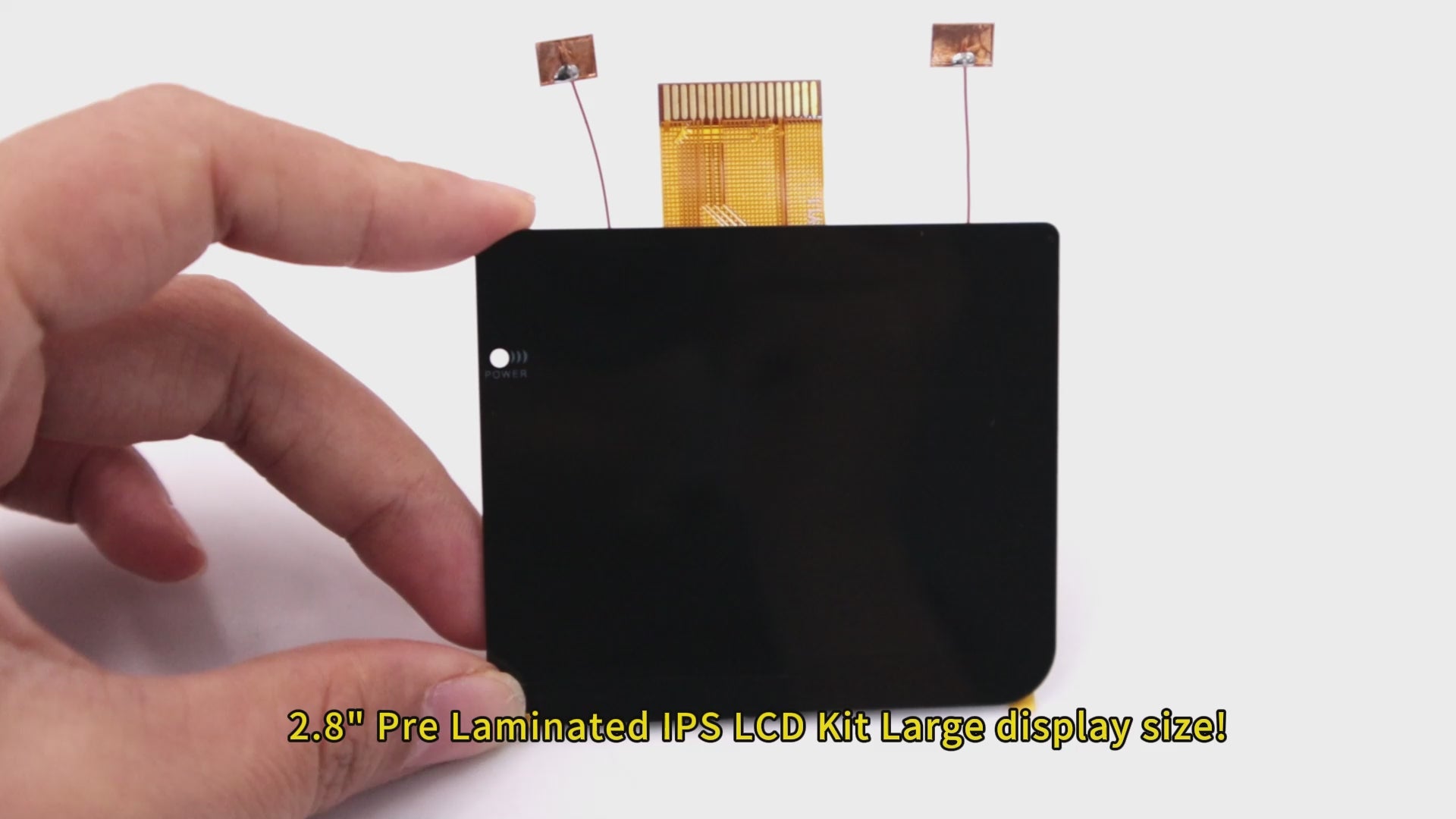

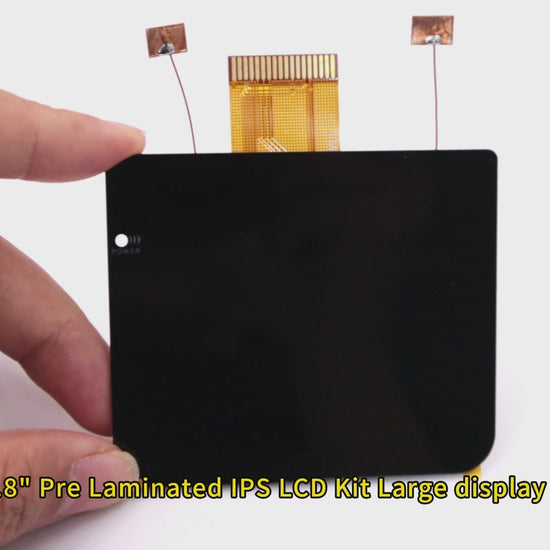

1. This is Pre Laminated Glass Screen IPS LCD. Very easy to install.

2. 480x432 display resolution. HD LCD. Integer Scaling. 9 pixels to 1 pixel. No any distortions.

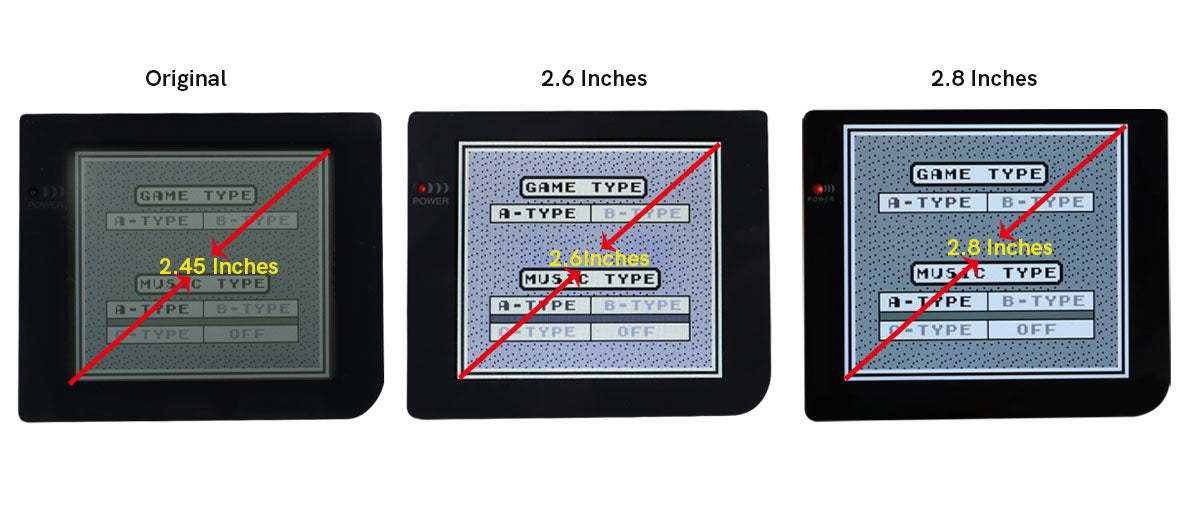

3. 22% larger than the original LCD. The largest IPS LCD for the GBP console.

4. Wide View angle up to 178 degree.

5. Support Spin the wheel to adjust the brightness.

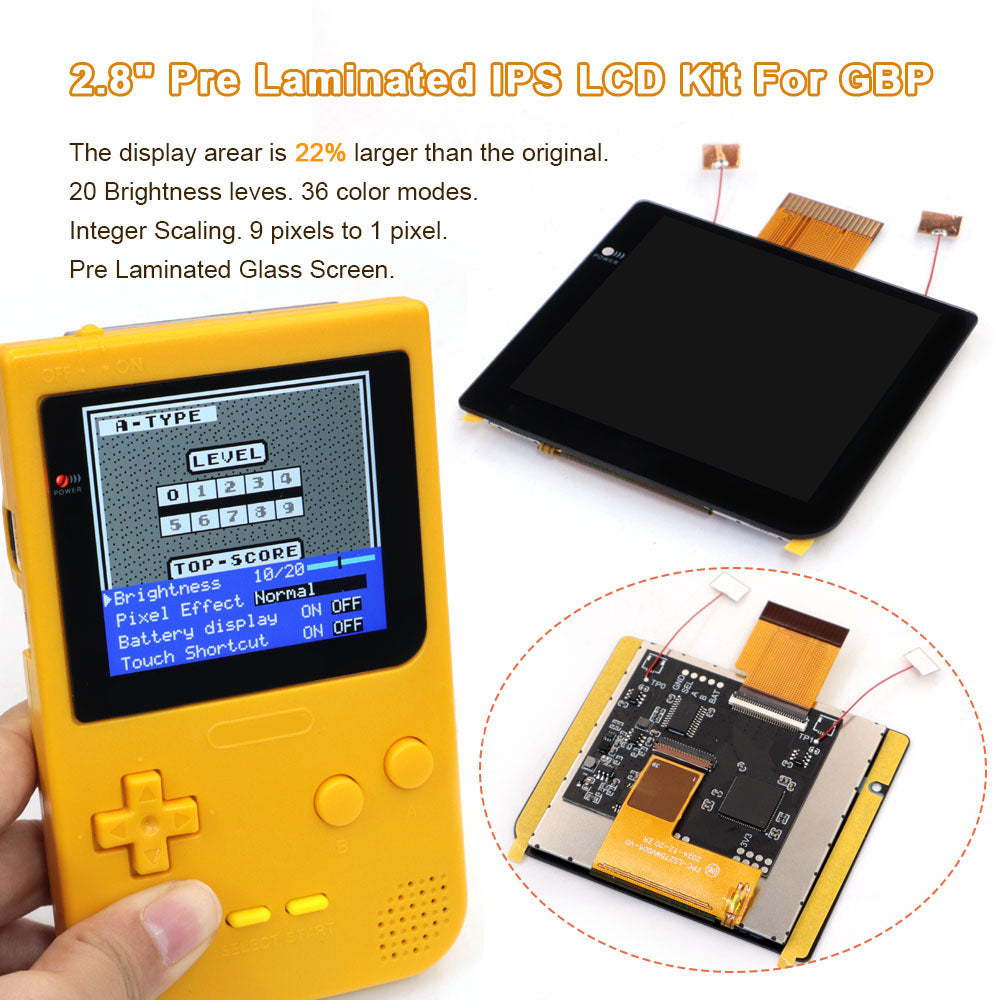

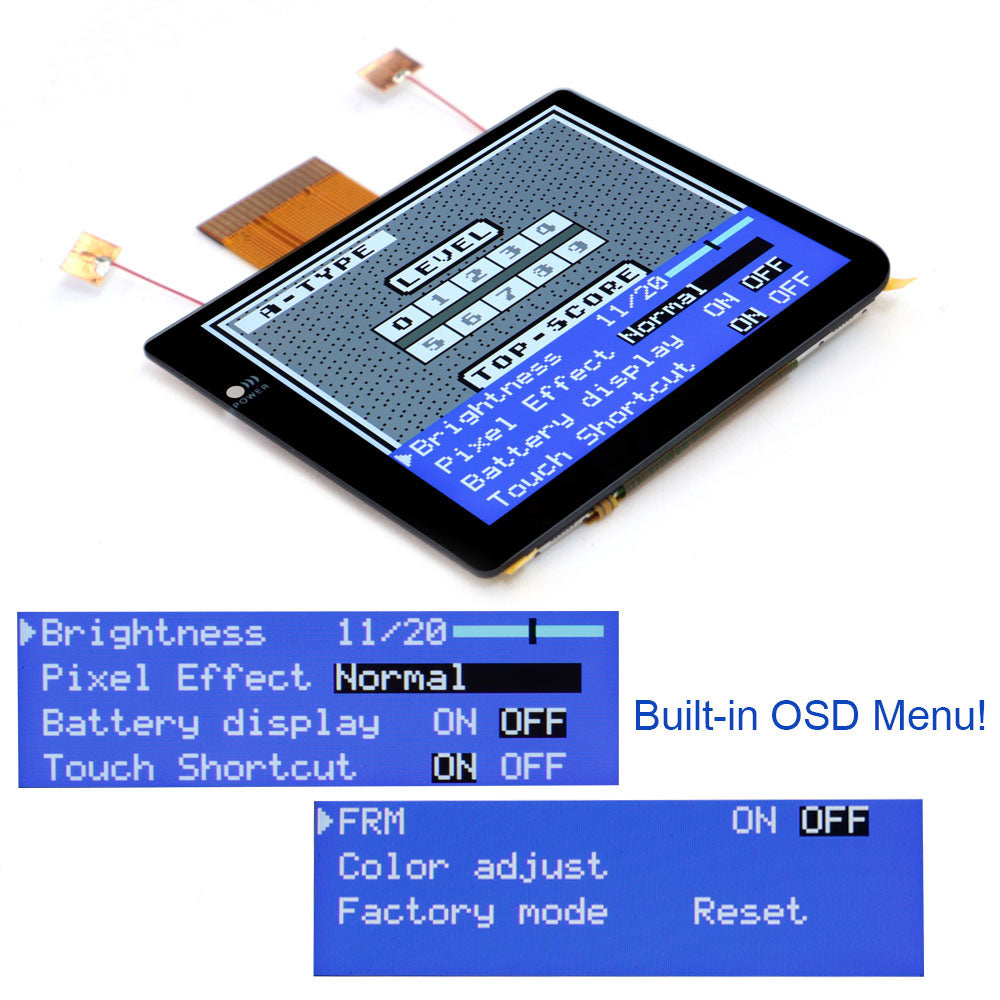

6. Built-in OSD Menu! Touch to operate the OSD menu.

7. 20 brightness levels.

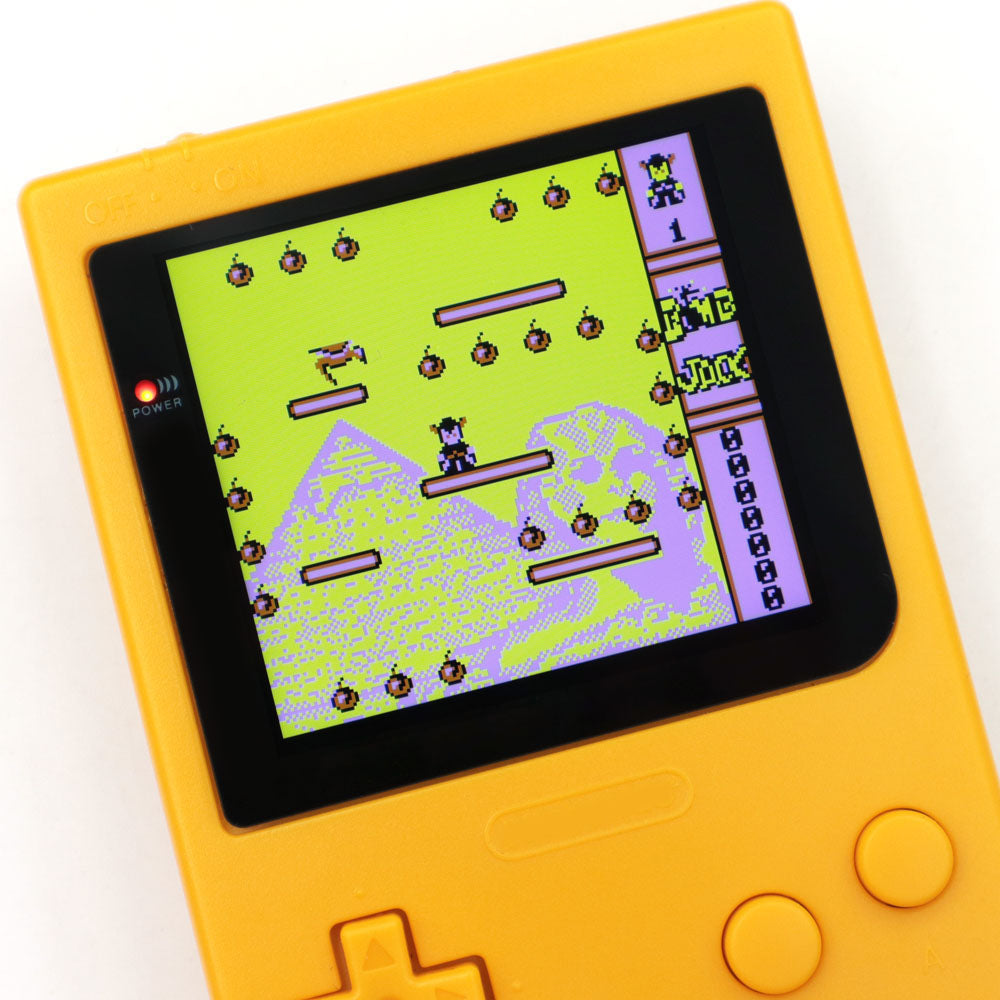

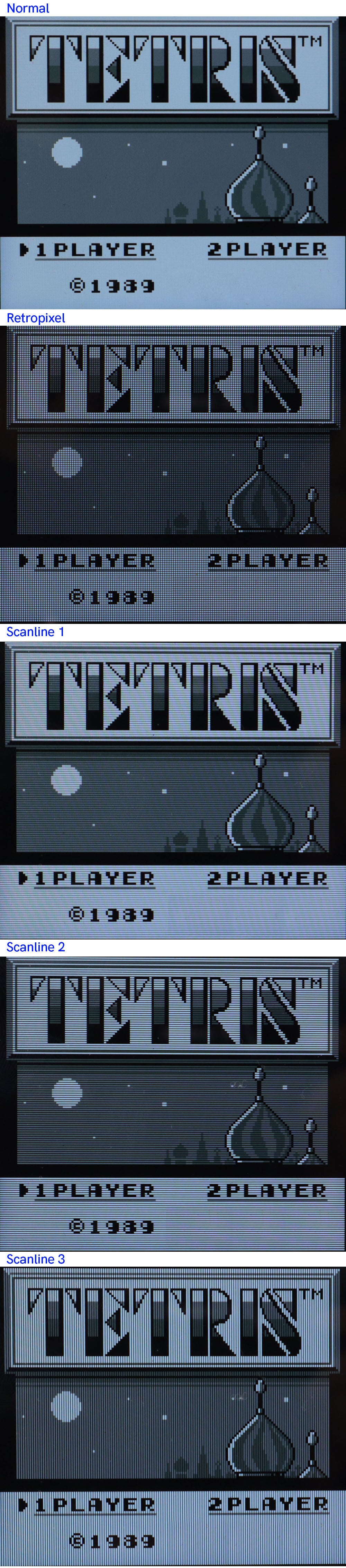

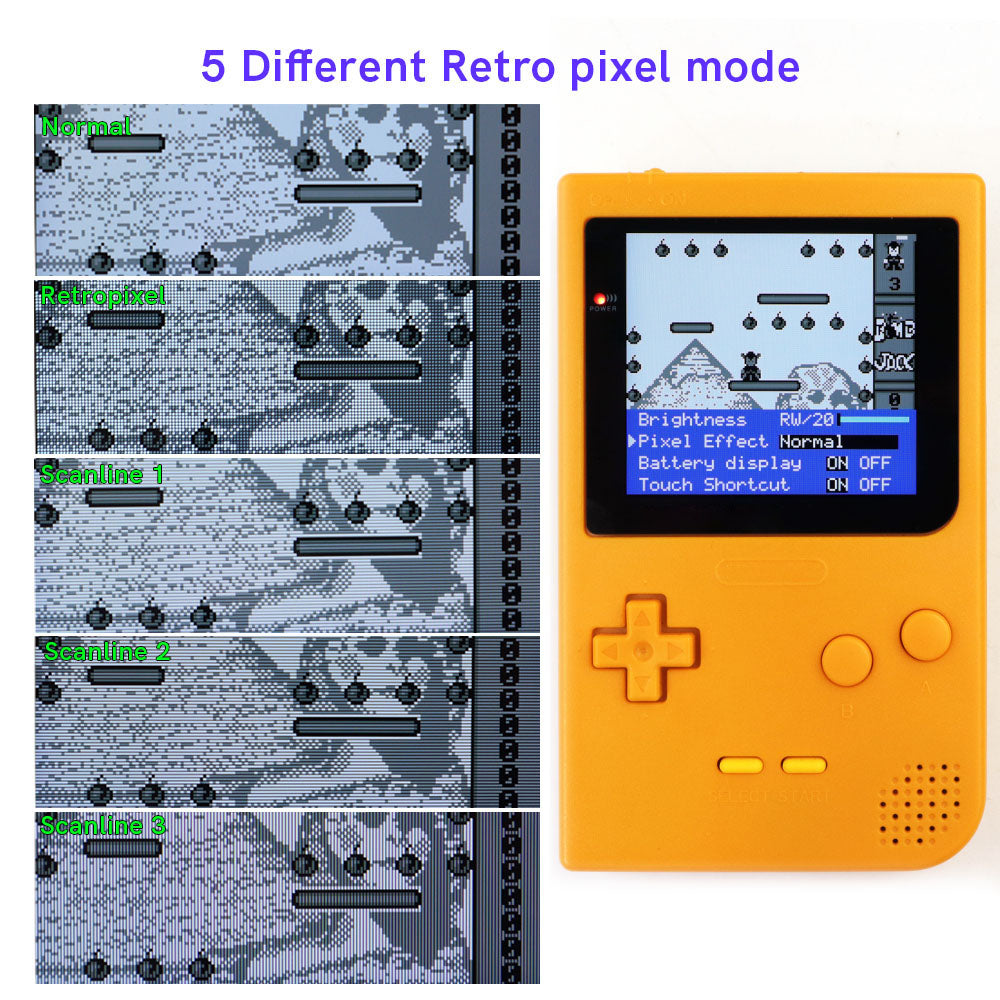

8. Retro Pixel Effects: Normal, Retro pixel, Scanline 1, Scanline 2, Scanline 3.

9. Battery level display On/OFF

10. 'Touch Shortcut ON/OFF' function. Set 'Touch Shortcut' OFF to avoid auto cycling color modes.

11. FRM On/OFF function (Frame blending On/OFF) is included.  For some extremly few games, the image effect will be better when FRM turned on. For most games, No need to turn on FRM Function. The default FRM is OFF.

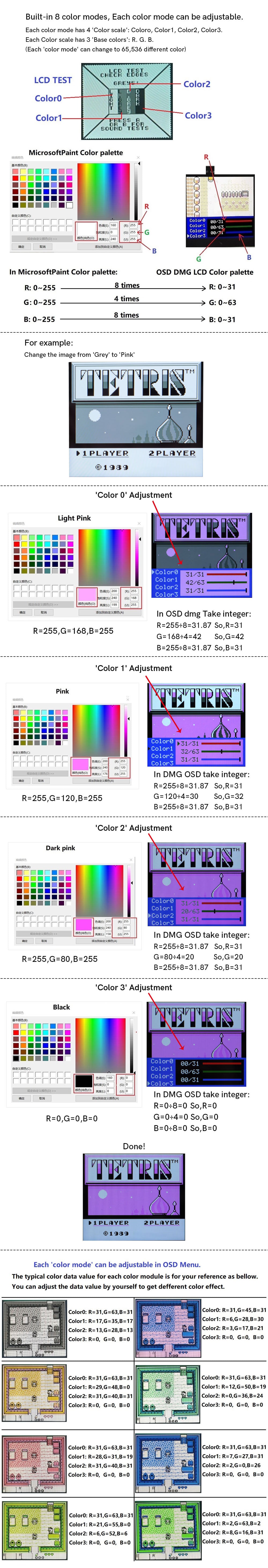

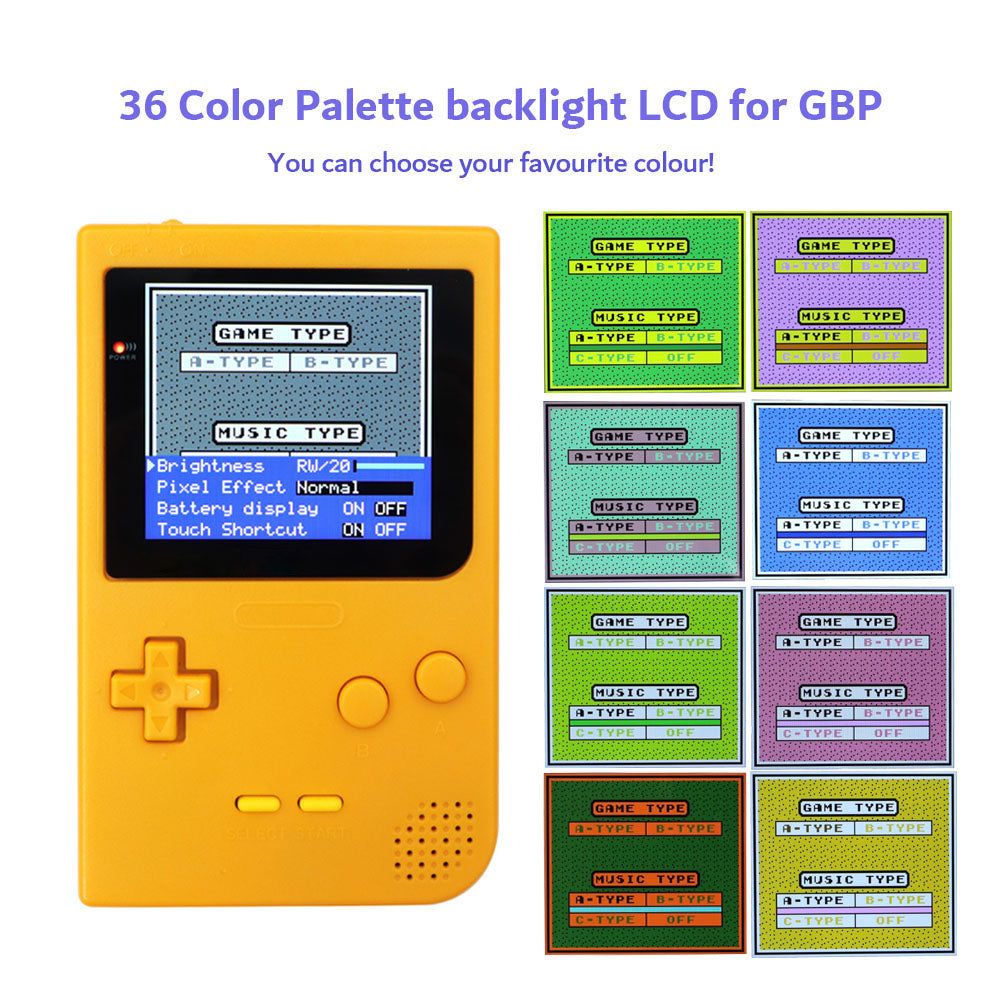

12. Built-in 36 color modes. Each 'color mode' can be adjustable.

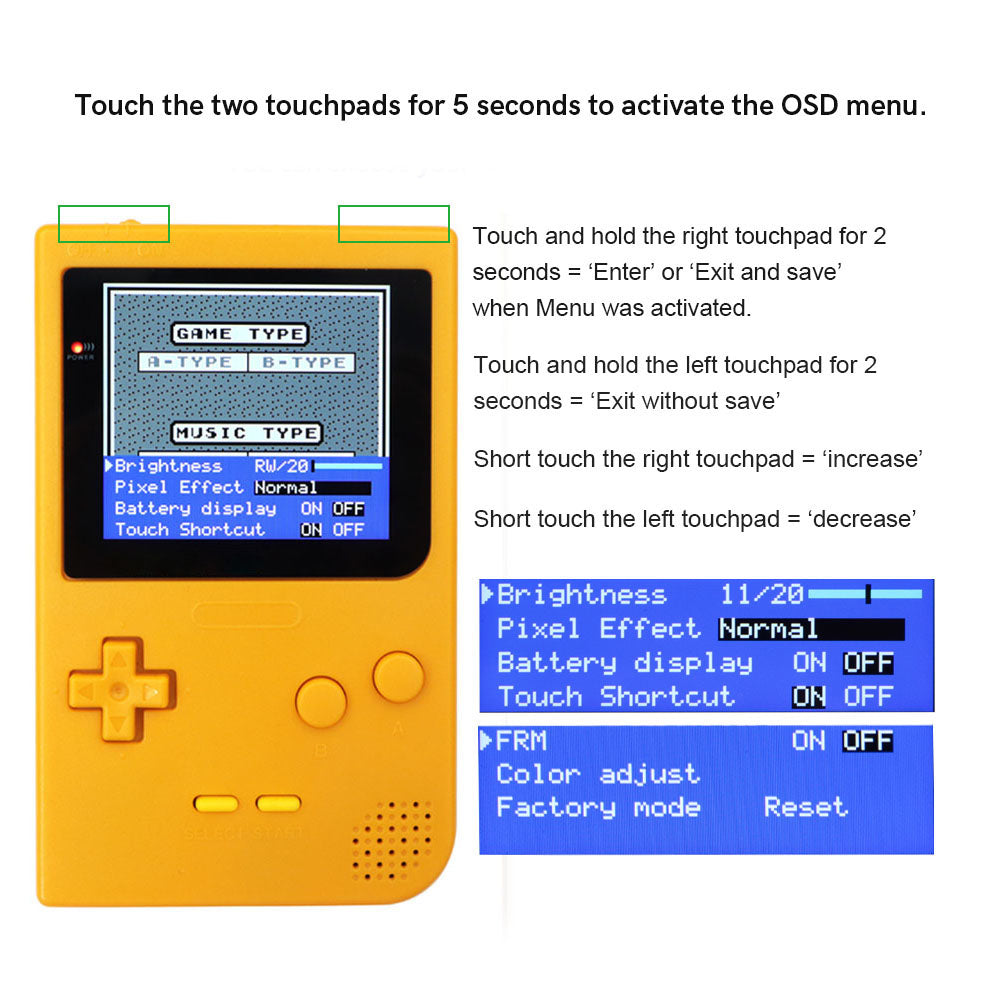

Using touchpad to operate the OSD Menu：

Touch the two touchpads for 3 seconds to activate the OSD menu.

Touch and hold the right touchpad for 2 seconds = ‘Enter’or ‘Exit and save’when Menu was activated.

Touch and hold the left touchpad for 2 seconds = ‘Exit without save’when Menu was activated.

Short touch the right touchpad = ‘increase’when Menu was activated.

Short touch the left touchpad = ‘decrease’when Menu activated.

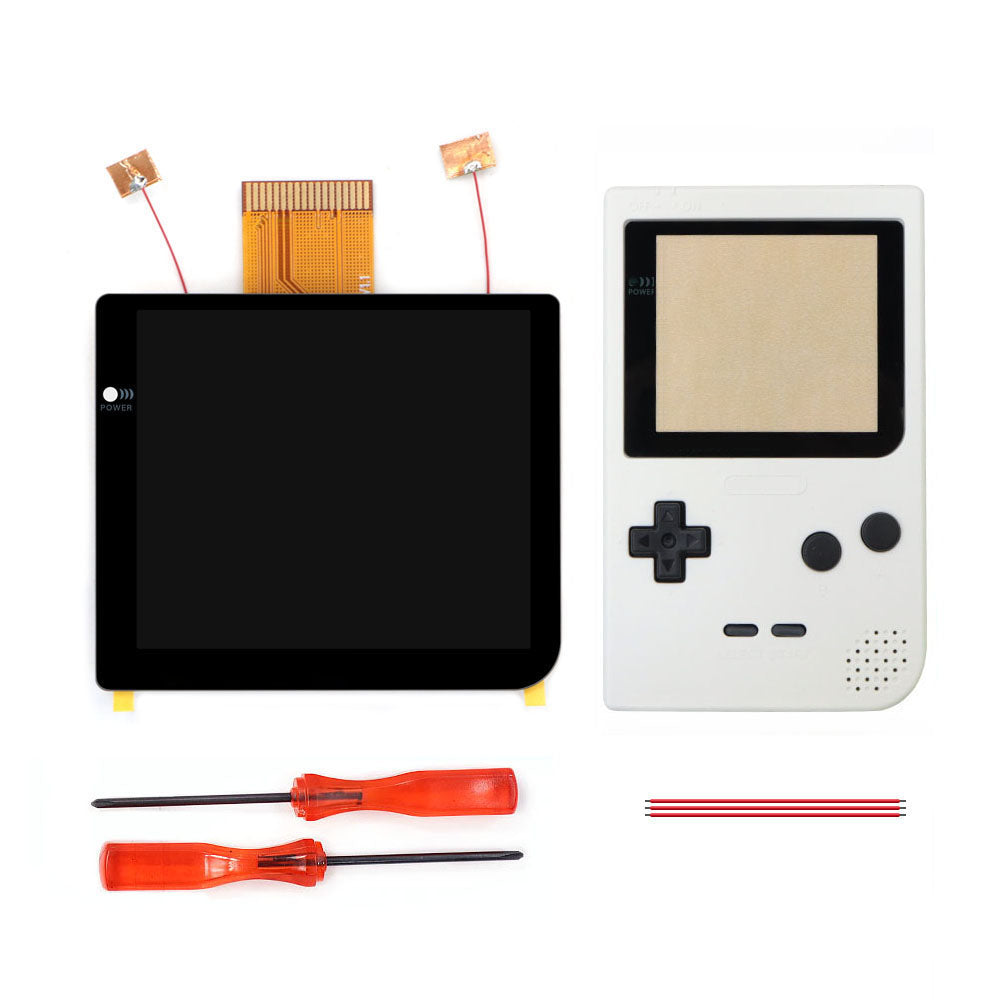

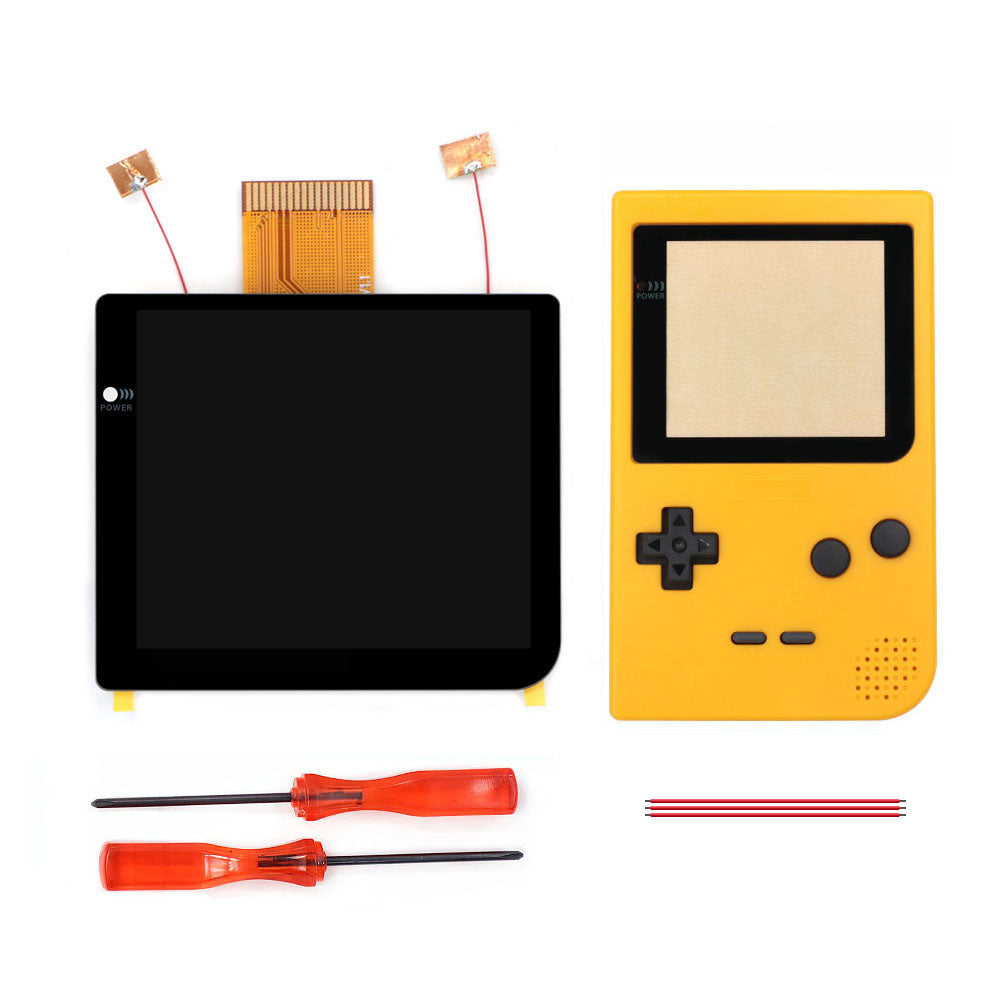

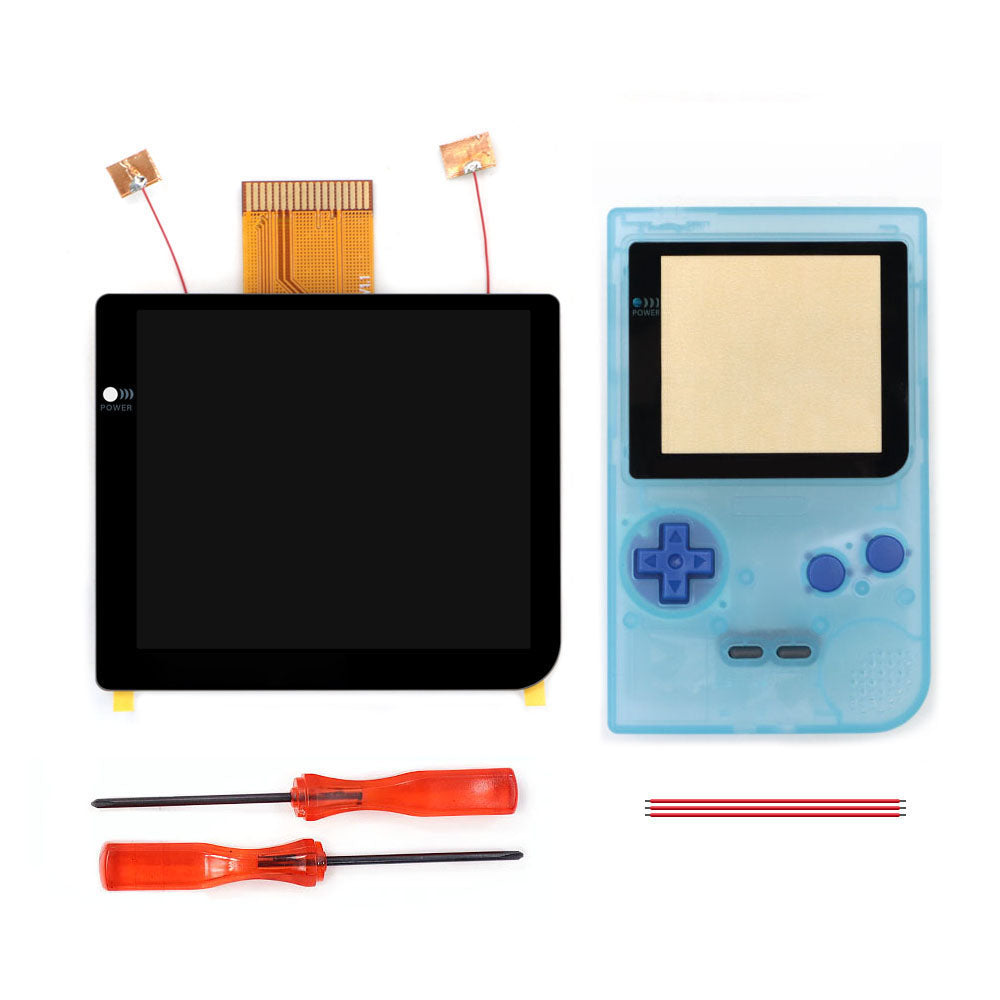

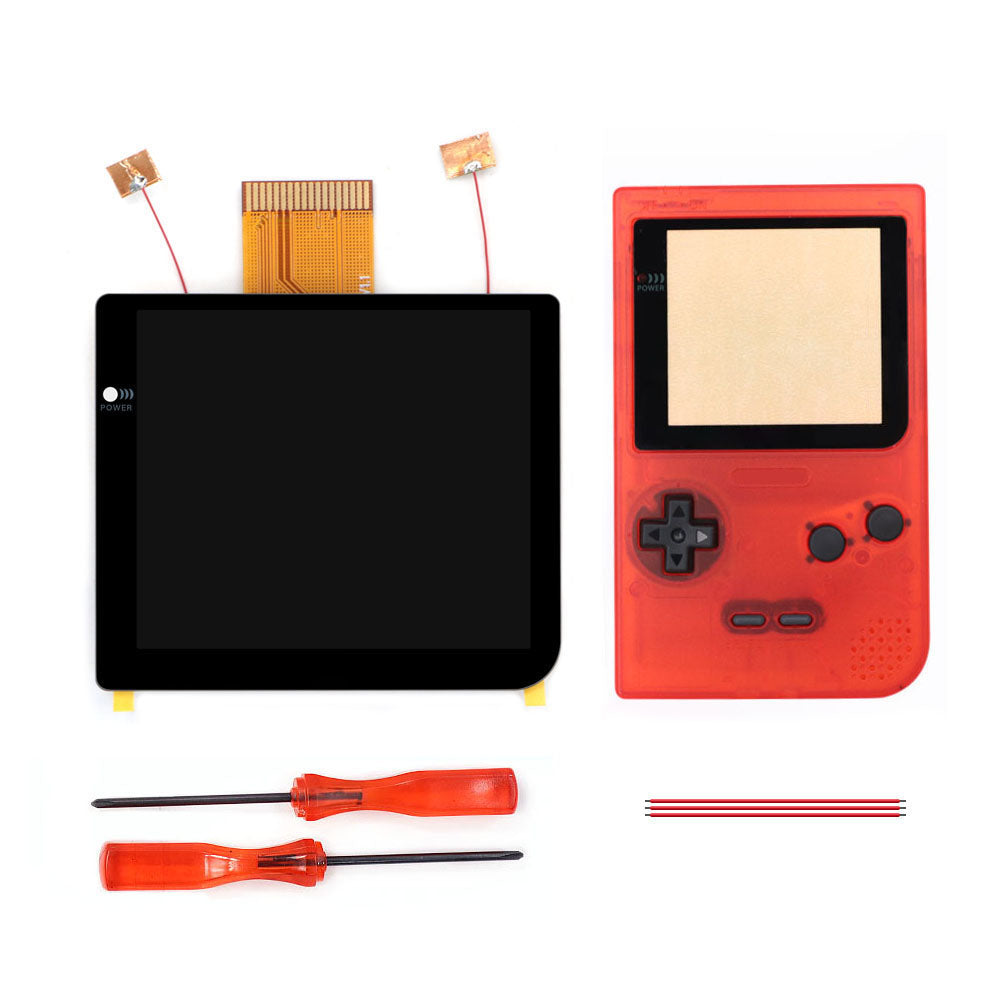

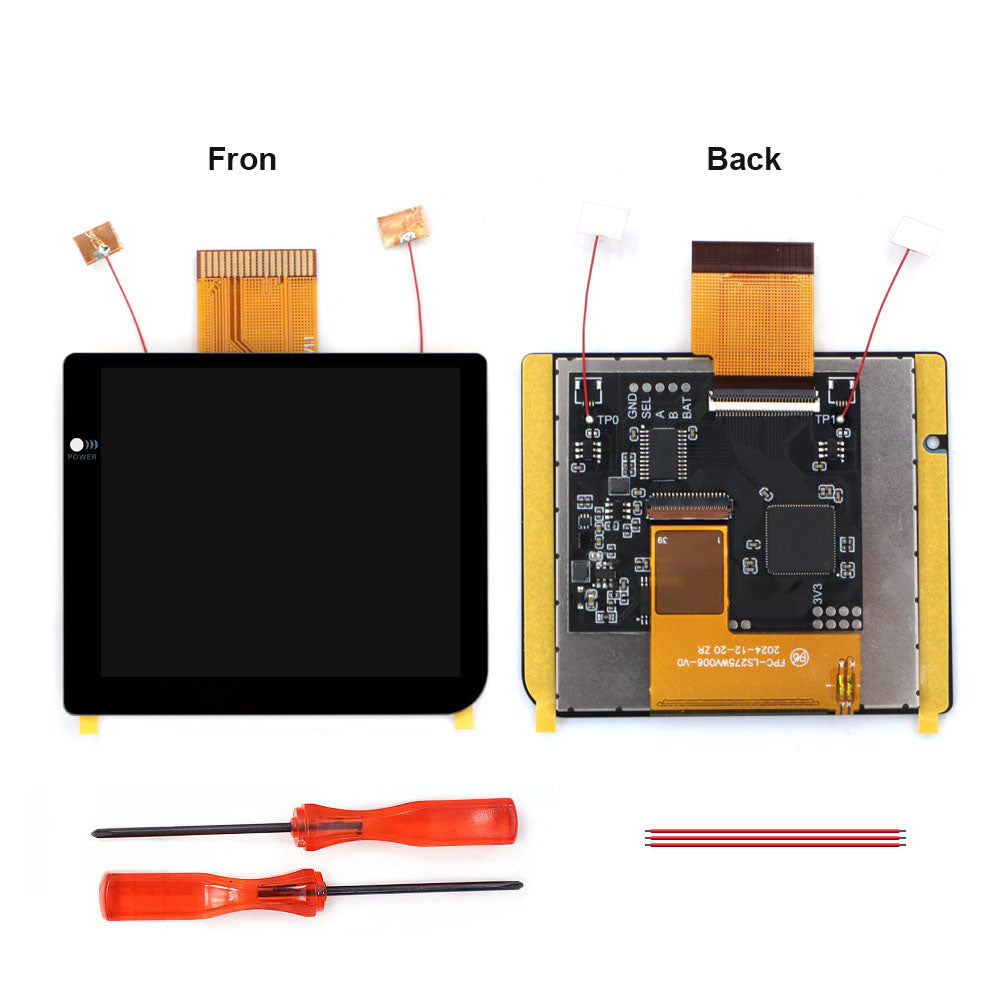

1x IPS LCD.

1x PCB.

1x flex cables.

2xScrewdrivers.

4x red wires.

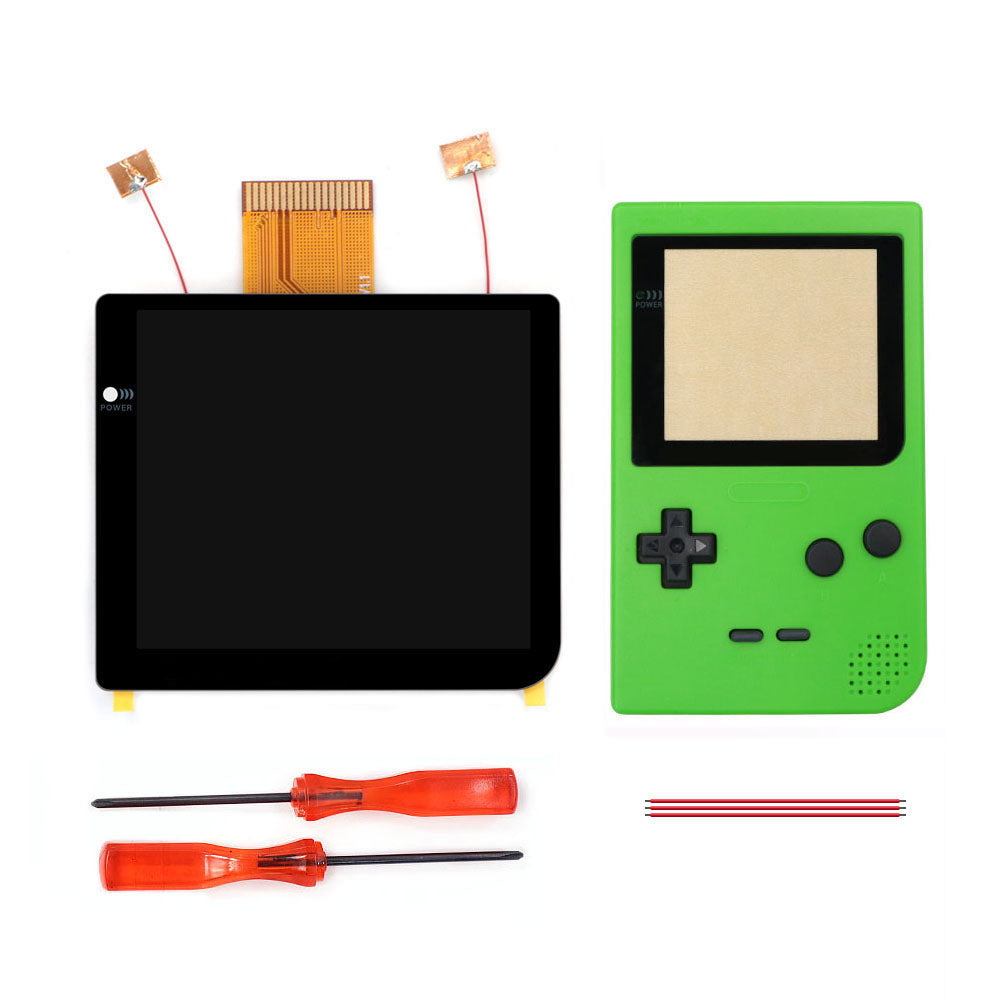

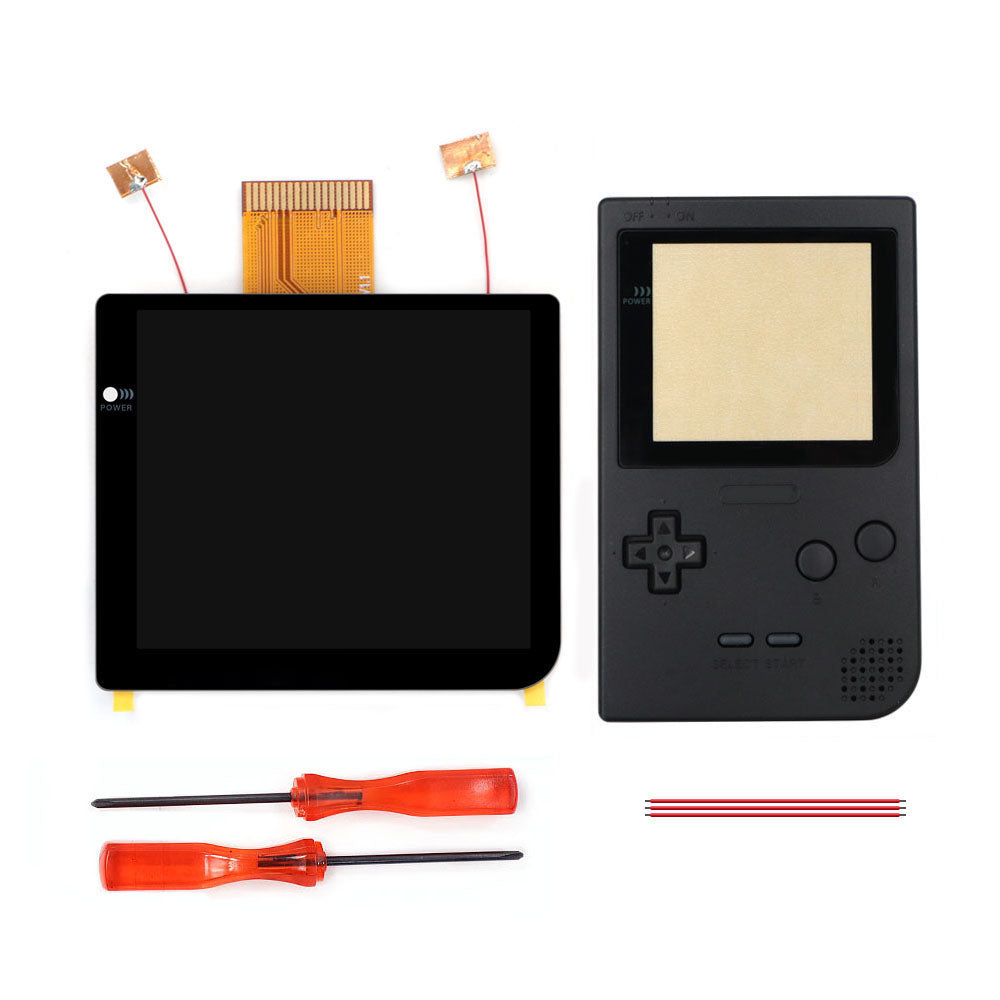

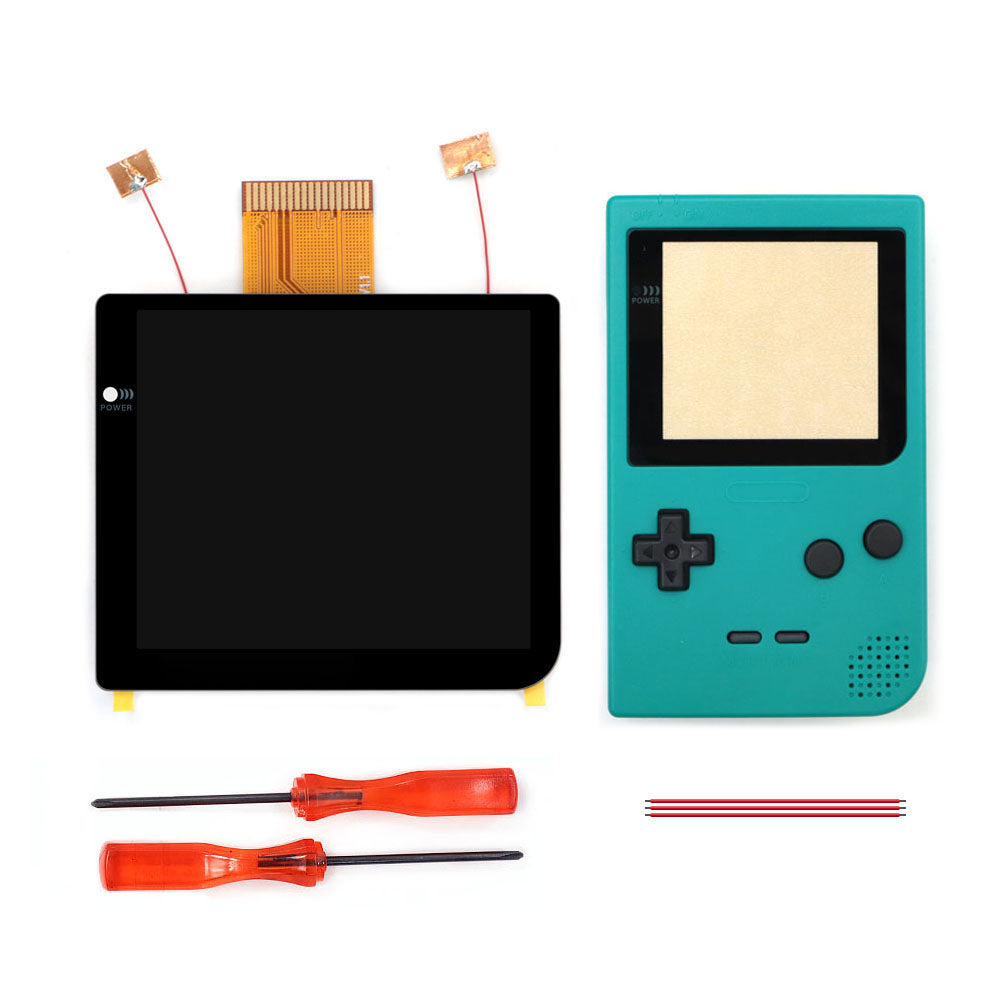

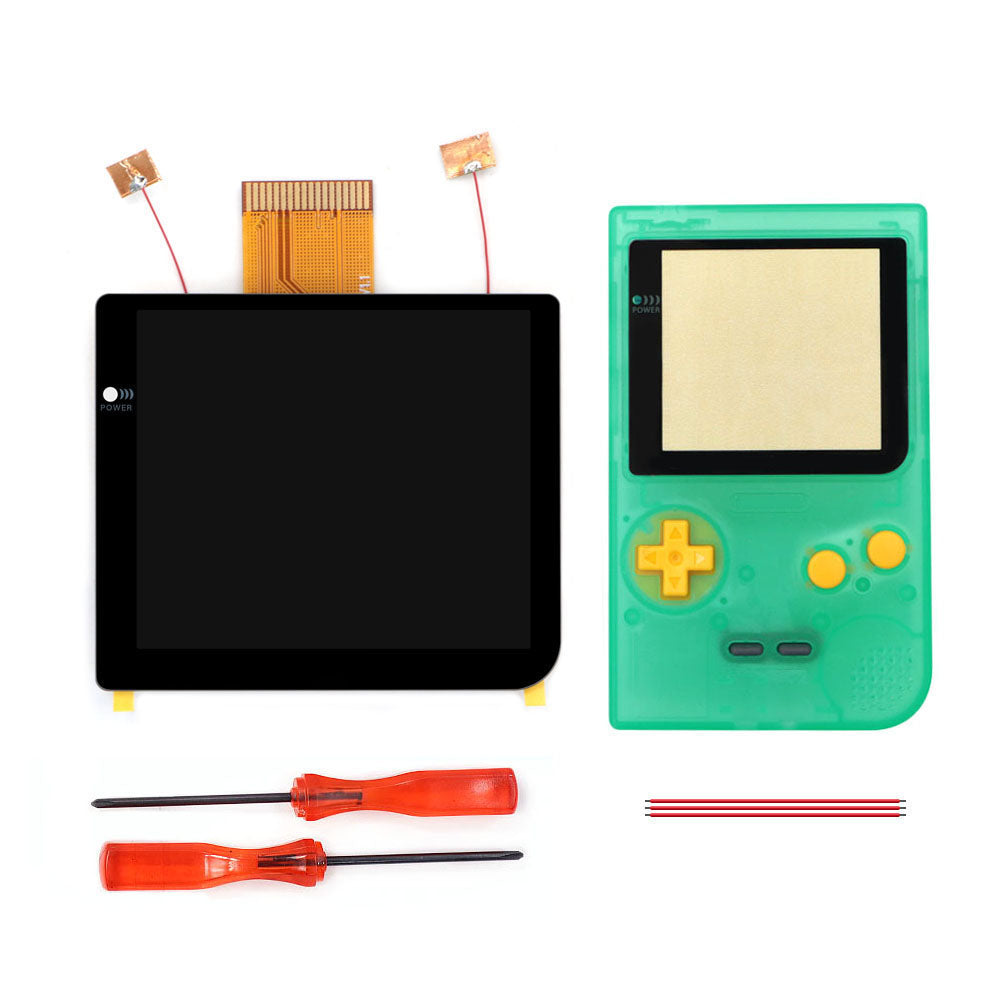

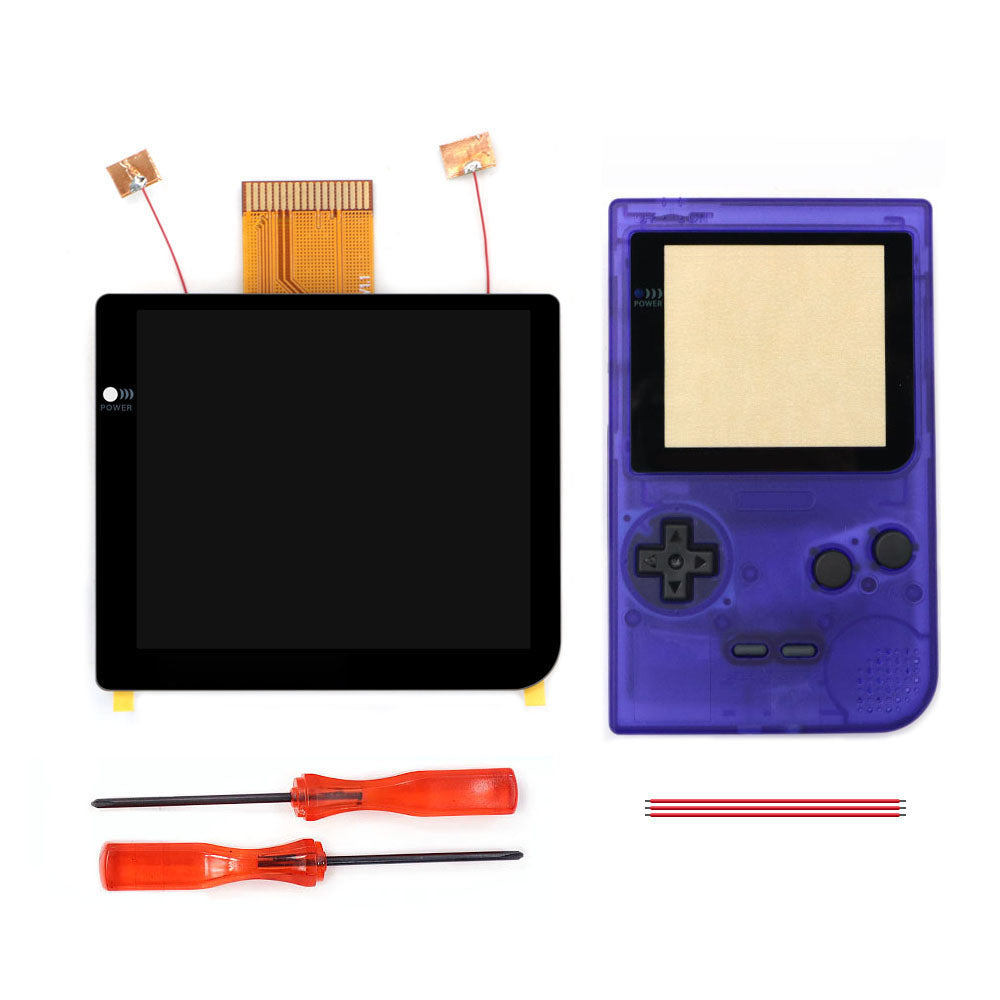

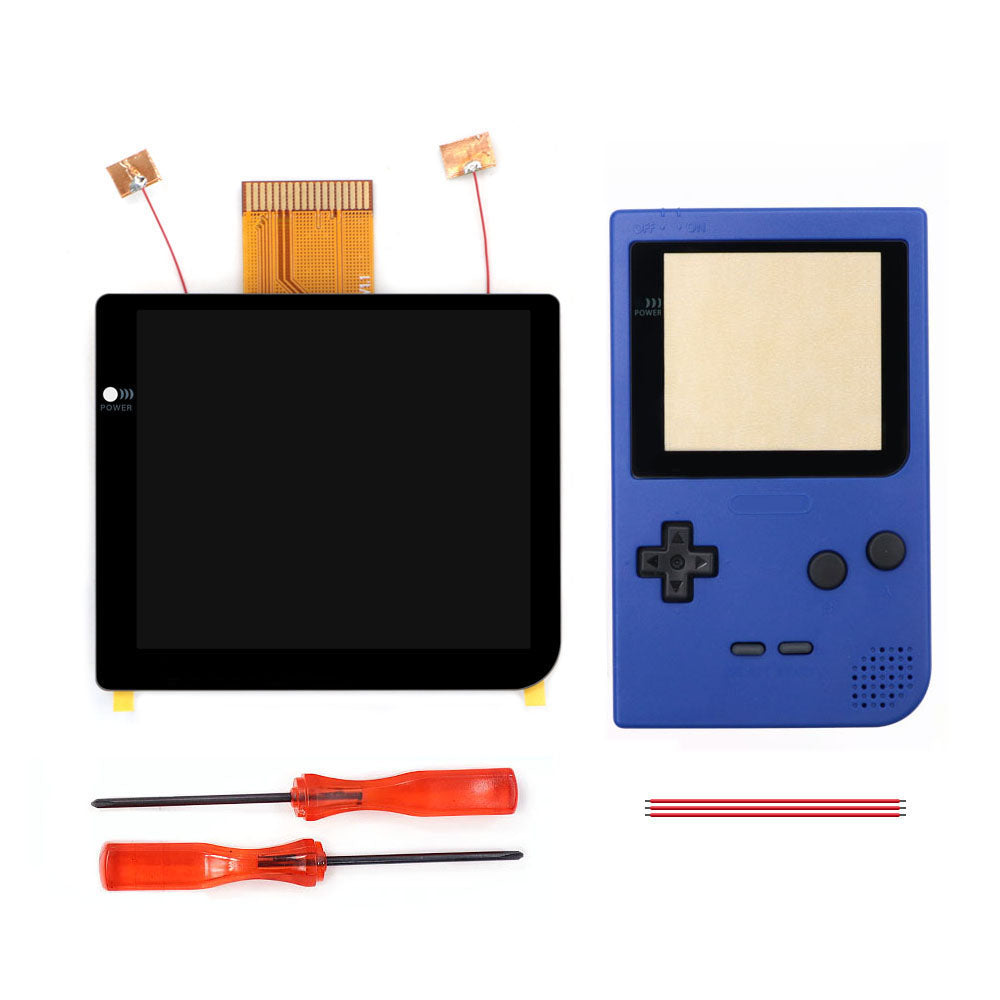

Or :

1x IPS LCD.

1x PCB.

1x flex cables.

2xScrewdrivers.

4x red wires.

1x Shell case, 1 set buttons, 1 set Rubber Pad, 1x Sticker label,1 set screws.
