New Version High Light 3.5inch 640*480 Retro Pixel HD IPS Backlight LCD Display Kit For SEGA Game Gear GG Console
New Version High Light 3.5inch 640*480 Retro Pixel HD IPS Backlight LCD Display Kit For SEGA Game Gear GG Console
No se pudo cargar la disponibilidad de retiro
Product Feature:
This LCD kit compatible with SEGA GG, SMS and SG-1000 games.
This PCB board was upgraded in October 2025.
Installation has become easier compared to before. Only need to remove one original screen, two fuses and one resistor.
This kit No need to trim the shell.
1. Support Sega single chip motherboard and dual chip motherboard:
--Single chip motherboard:1 ASIC PCB revisions 837-9130 / 837-9024 / 837- 8560
--Dualchip motherboard:2 ASIC PCB revisions 837-7996 / 837-7719-01 VA0/837-7398-03
NOTE 1: Doesn't supported: Majesco Game Gear VA4 / VA5 !
NOTE 2: The motherboard with the "MADE IN TAIWAN" logo on the motherboard of the game console does not support.!
Description:
1. 640x480 display resolution. HD IPS LCD.
2. Same display size as the original screen.
3. Wide View angle up to 178 degree.
4. Built-in OSD Menu!
5. Retro pixel Effects: Normal, Retro pixel, Scanline 1 and Scanline 2.
6. High brightness, 15 brightness levels.
7. 8 color modes.
8. Built in 3 LCD Aspect Ratio.
9. Image position adjustable. No worry to aligning the LCD screen.
10. 720P HDMI-Compatible Output. Support to play games on TV Set.
11. Built in 3 TV Aspect Ratio.
12. FPC connect cable design. Simpler wiring and easier installation.
OSD Menu Operation:
-Press the START+1+2 buttons for 1 second to activate the OSD Menu.
-Press the 'START' button to select the adjustment item when OSD Menu activated.
-Press the '1' or '2' button to adjust the item when OSD Menu activated.
Packing including :
'Without HDMI version' include:
1xBacklight LCD.
1x Without HDMI version PCB.
1x FPC connect cables.
1xDouble-sided tape.
5x 10pF capacitors.
2x 200Ohm resistor
Several Red wires.
1x Glass screen lens.
'HDMI version' include:
1xBacklight LCD.
1x HDMI version PCB.
1x FPC connect cables.
1xDouble-sided tape.
5x 10pF capacitors.
2x 200Ohm resistor
Several Red wires.
1x Glass screen lens.
1x HDMI adapter cable
Share

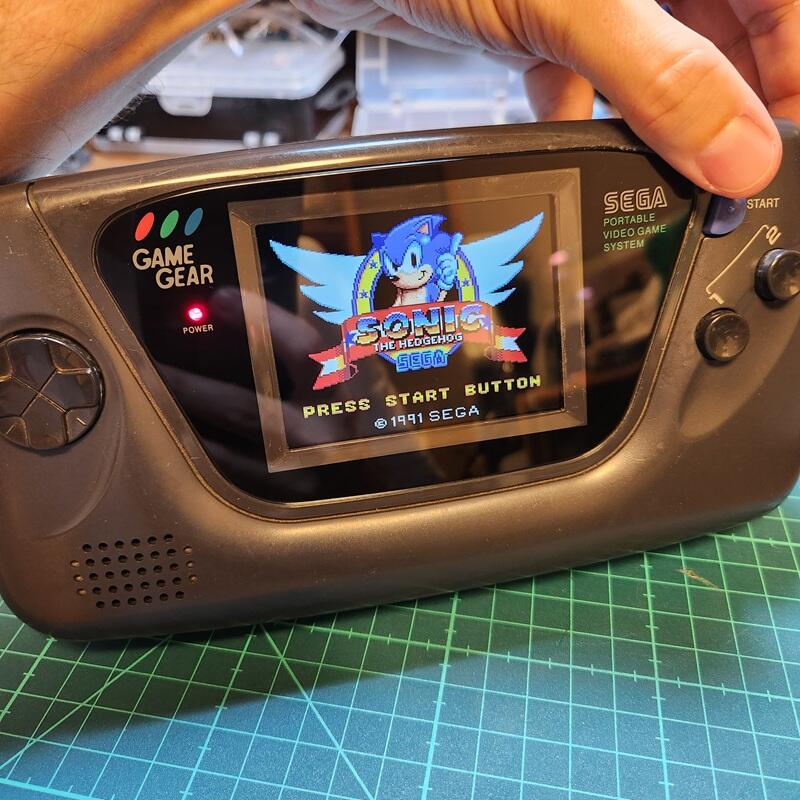

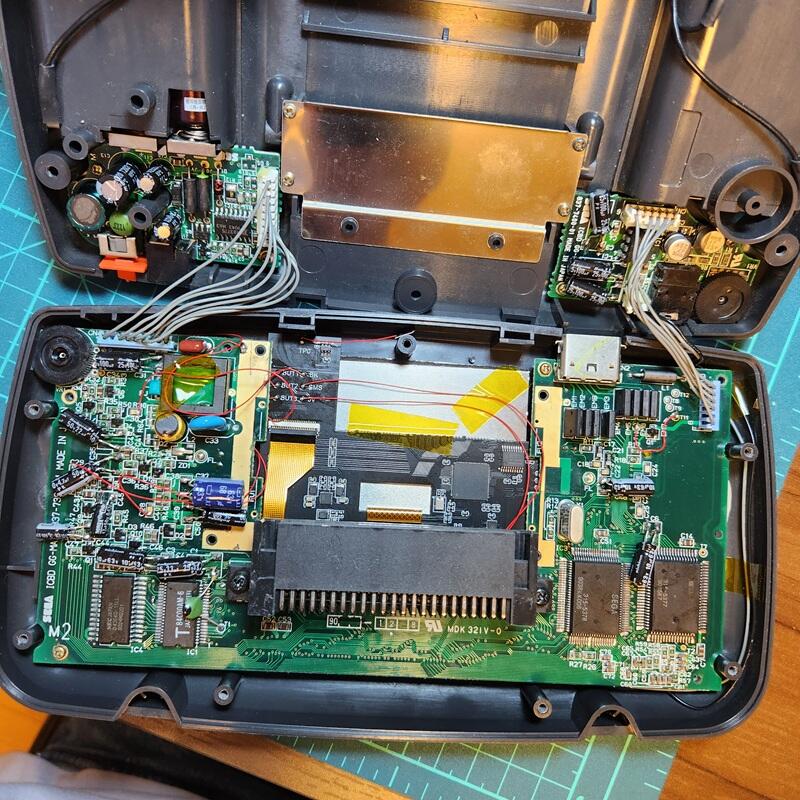

I got the non-HDMI LCD kit only version and put it in my OEM case with a very early VA0 [****] board. This is my second time trying a display from this company (the first was a WonderSwan Color one), and this one worked out just as well. The product page says the installation has become easier and no cutting is required, and that was the case for me, so very happy there. The display looks great, has good modes, and good display adjustment options if you didn't set it exactly right in the case. I like how it gives the option to turn the touch controls off if you only want to control the menu with the buttons, which is what I did.
The kit came with everything I needed and more. It came with two ribbon wires for connecting the display to the board, even though you only need one. There was also some extra jumper wire and extra double sided tape that I can save and use on other things, which I've done. The only weird thing is the product page says the non-HDMI version comes with "5x 10pF capacitors", but it doesn't come with them and it doesn't even need them, so no problem there - just need to fix the info on the page.
Also, the screen cover that has the SEGA logo and Game Gear written on it isn't 100% like the OEM one, but it's still very nice and definitely close enough. The untrained eye wouldn't notice anything strange and just think it's a normal Game Gear.
Last thing - same as my other purchase, the packaging is 120% A++. Very protective, so no worry at all of the kit getting messed up in shipping. The kit comes in a plastic case that can be reused, if you want to keep it.
